THEORY
Shockwave SW11 system uses the ballistic principle of shockwave generation: A pressure wave is formed via a projectile by using accelerated compressed air. The compressed air is generated by an electronically-controlled ballistic-pressure compressor. Using elastic impact, the kinetic energy of the projectile is transferred into the probe of the applicator and then into the client's body. Consequently, during the treatment, the end of the applicator must be in direct -contact with the skin and subcutaneous tissue.

TECHNICAL SPECIFICATION

Input Voltage
AC 100V-230V 50Hz-60Hz
Power
230VA
Frequency
1- 21 HZ
Energy
1-4 .0 bar
GW
50KG
Packign size (wooden case)
118*56*62 cm

TECHNICAL FEATURES
A rapidly-moving projectile transfers its energy to tyeatment head .The radial shockwaves that are generated spread out and absorbed by the area of the body that has to be treated Increasing frequency affects the depth of wave penetration (as lower frequency waves travel further than higher frequency waves). As can be seen below high frequency waves travel less distance (below are depictions of different wave frequencies on a gold film)

Radial shockwave effects fall into three broad categories:
Destruction of tissue
Healing (increased)
Decrease of pain
Although the settings of the machines vary for each type of effect required, a description of these settings can be seen here, each shock wave will have some of each of these effects around each wave i.e. a shockwave at the highest settings (to create damage) will always have an area around the wave where there will be less energy and hence some of the other effects. An example of this can be seen in the positive part of the radial shockwave below:
Imagine the red is the area of energy that will create damage. This area goes from the bottom of the shock to the top as a column damaging everything in it's way. Around this column is an area of less energy, seen in green, which would be of a dosage able to create healing. There would also be an area, shown in blue, of much less energy able to decrease pain. There is also an area where the wave force would decrease above the area of damage (the energy can't continue forever) which in turn would have healing or pain relieving effects. It needs to be remembered that the effects happen at high to low energy levels i.e. high levels = damage + healing + pain relief. Middle levels = healing + pain relief.

SHOCK WAVE EXCELLENT RESULTS :
Proven by clinical studies
Wide range of applications
Fast return of investment
Special transport case
Easily transportable – just open the case, plug in and treat


ADVANTAGES
1. Ingrowth of Neovascularization, Reversal of Chronic Inflammation, Stimulation of Collagen

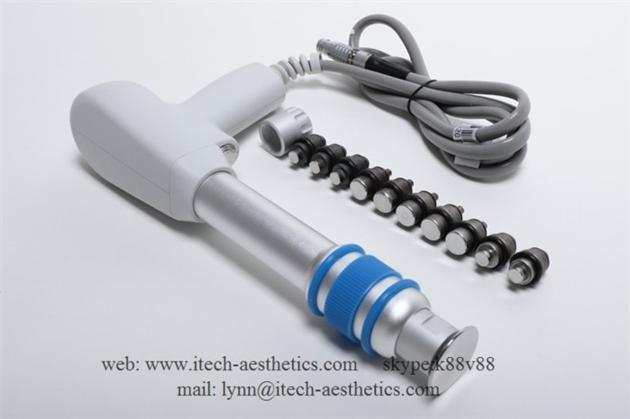

2. Ballistic pneumatic shockwave with multiple tips on applicator
3. Max energy up to 4Bar and frequency up to 21Hz
4. High effectivenes, fastly relieve pain;
5. Non-invasive, no anesthetic, convenient and fast;
6. Each nursing only 20-30 minutes, 5-10 nursing each session;
7. Widely applied to different soft tissue treatments.
