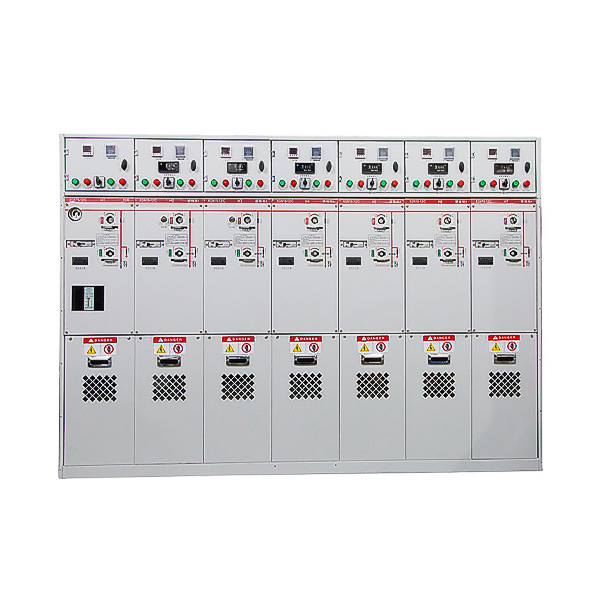

Sf6 Gas Insulated Switchgear Switchboard Cabinet

Ac metal closed type shift switch cabinet is a three-phase ac 50HZ indoor device metal closed switch equipment.Is used in power plants, substation system rated voltage 35kV, rated maximum current 2000A maximum voltage no more than 40.5kV single bus or single bus sectionalized sets of distribution equipment.
This switch device meets the requirements of DL/ t404-91, IEC298, GB3906 and other standards, and has the functions of preventing wrong operation of circuit breaker, pushing and pulling handcart with load, grounding line, power transmission with grounding line and accidental charging interval (referred to as "five precautions")

Structural features:

1.HXGN15 series is a new generation of metal-enclosed switchgear with sulphur hexafluoride switch as main switch and air-insulated whole cabinet for distribution automation. It is compact and expandable. It has simple structure, flexible operation, reliable interlocking and installation.
2.Convenient and other features, can provide a satisfactory technical solution for a variety of different applications and different user requirements.
3. Applicable to urban residential area distribution, small secondary substation, opening and closing, industrial and mining enterprises, shopping malls, airports, subways, wind power, stadiums, railways, tunnels and other fields. Implement the GB3906 national standard.
