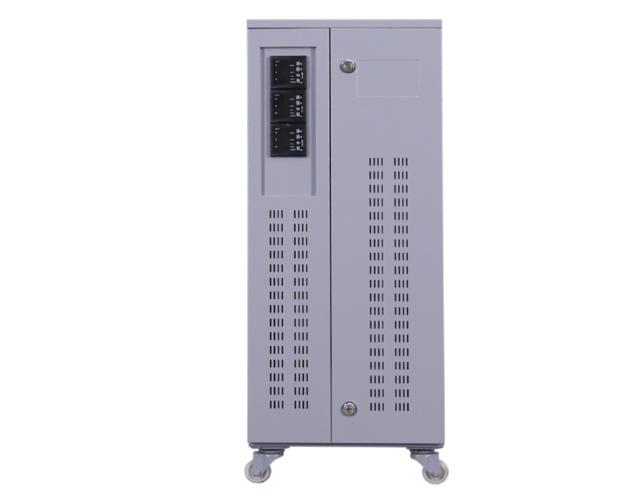

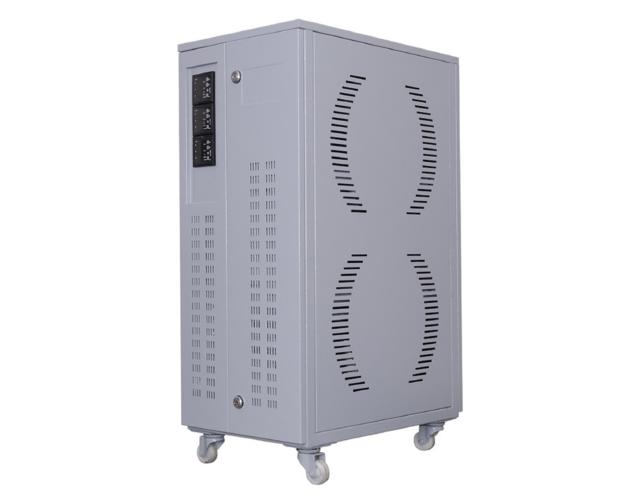

Servo Voltage Regulator 3Phase 45KVA Full Automatic
| Price: | US$ 1 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, LC, CASH |
| Port of Export: | Istanbul/TURKEY Any Port |
Product Details
| Model No.: | DVRM3-45KVA | Brand Name: | GUVEN-IS |
|---|
| Certification: | CE, ISO9001 |
|---|---|
| Specification: |
FULL AUTOMATIC SERVO DYNAMIC VOLTAGE REGULATOR
FATIH SERIE THREE PHASE DVR-M3 45KVA The DVR-M3 Regulator provides the following: •Protection of the user from negative voltages. •Protection of the user and the device from excessive current. •Undisturbed pure sinus voltage regulation. •Long-term overload protection and short-term protection. •AC voltage balancing with extremely high accuracy. •Run smoothly on all loads from 0% to 100%. •Manual transfer to bypass regime without regulating. •Display all values against the probabilities in the bypass regime. •Record mains input voltage limits and load current values. •Static, not gradual, dynamically correct output voltage too quickly without user notice. •When protections are activated, record the number of protection trips and the reason for each parameter separately. •Generation as standard is 0.4% (379.87V - 382.6V) stable when the input voltage is within the range of 112.6V ..... 537V. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 1 WEEK |
| Production Capacity: |
Product Description
TECHNICAL SPECIFICATIONS
INPUT
Input Voltage Correction Range :190-415 / 275-450 / 310/485 VAC
Input Voltage Operating Range : >155v…490v<
Operating Frequency : >47.....64 <
Input Protection : Overcurrent. Low and High Voltage Protection (Optional)
OUTPUT
Output Voltage : >380v…415v< +/- %0,4
Overload :10 SECOND % 200 load
Correction Speed / Recovery Speed : - 90 Volt / S (150-250VAC the range)
Output waveform : Pure Sine
Output protection : Overcurrent. Low and High Voltage Protection (Optional)
Output protection at low voltage : 337V on - 303V off
Output protection at high voltage : 424v on ... 433 off
OPERATING PRINCIPLES : Servo Motor - Microprocessor - Dynamic Servo
GENERAL
Cooling : Smart fan system (Thermostat)
Measurement and imaging : Input and Output Voltage Led Display / Input,
Output
Voltage and
Ampere Led Display MULTIMETER
Continuous operating time at full load : 0..105%.
Continuous load <105% : < 7 /24
Efficiency under load. : >96%
Mechanical By-pass : Manual control network / 1-0-2 Pako Switch / Remote
Switch
/ Lock key
On / Off
Protection Class : IP20 and Other Options
ENVIRONMENTAL
Operating ambient temperature : > -40 ®c <+ 55®c
Storage temperature : > -25 ®c <+ 60®c
Ambient temperature +25 ®c Relative Humidity. : < 96 %
Operating height : <3000m 3 km
Protection Class : IP 21
Acoustic Level : < 50 dB (1m)
|
