Servo Molding Press
| Price: | US$ 100000 / Sheet |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | lc |
| Port of Export: | SHANGHAI |
Product Details
| Model No.: | yp96 | Brand Name: | PHP |
|---|
| Certification: | |
|---|---|
| Specification: |
PARAMETERS
Suggested Pressure Ton 150 200 250 300 400 Daylight Mm 1400 1600 1600 1800 1800 Stroke Mm 1200 1400 1400 1600 1600 Table sizes Mm 2400*1500 2400*1500 2600*1800 2600*1800 2800*2000 Fast down speed Mm/s 300 300 300 300 300 Pressing speed Mm/s 10-30 10-30 10-30 10-30 10-30 Fast return speed Mm/s 150 150 150 150 150 Power kW ≈20 ≈23 ≈23 ≈29 ≈44 Note: Above-mentioned parameters are for reference, the actual parameters will be a little different based on the material ratio and product sizes. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description

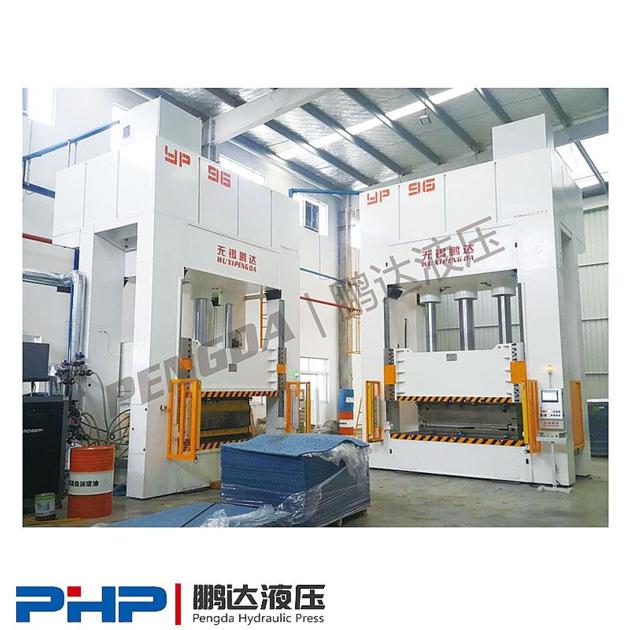

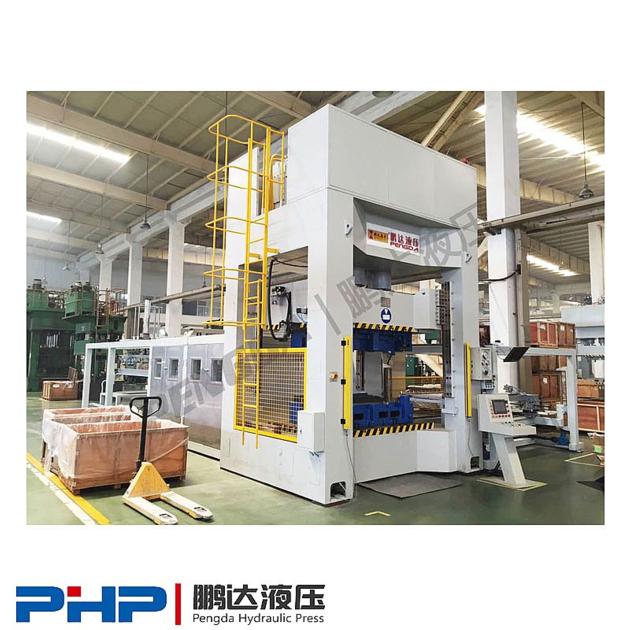

Forming Hydraulic Press
YP96 Servo auto trim hydraulic press is mainly used in the molding technology of automobile industry, like headover, carpet, seat, trunk, and fender and so on. Long holding time is its biggest feature. PENGDA provides servo hydraulic press which runs steadily, saves energy, improves efficient and maximizes the benefits of clients.
ADVANTAGES
Hydraulic unit and electrical cabinet is on the top platform to saving the workshop space
Multiple safety protection measures to ensure the safety of operators
The servo system can save energy by 50~80%
No oil leakage, full card sleeve joint and SAE flange connection.
Simple and easy to operate touch screen display and control
Reduce downtime, 24-hour continuous operation rate of more than 98%
|
