Sequential Number Card Puncher YLP-SN
| Price: | US$ 1 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | TT,Western Union, Paybal,Etc. |
| Port of Export: | Shenzhen Port |
Product Details
| Model No.: | YLP-SN | Brand Name: | YL |
|---|
| Certification: | |
|---|---|
| Specification: |

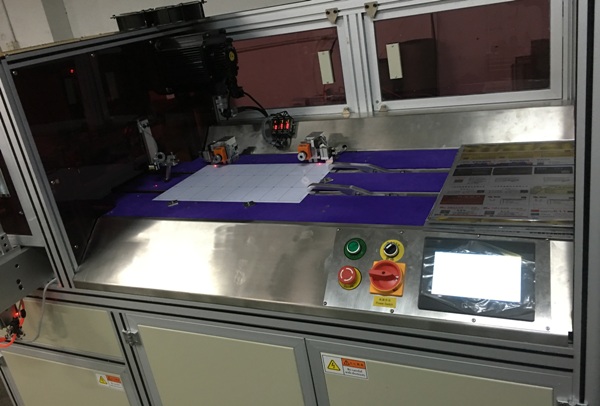

Application Sequential Number Card Puncher YLP-SN is specially designed for cutting the printed big sheets (such as 3*8, 4*8 or 5*5 layout) into the standard CR80 cards in a sequential and precise way. The machine applies the powerful servo motor system as the punching power to ensure more reliable and easy punching. Professional card collecting structure is used to collect serial number cards or standard cards into one card magazine. |
Packaging & Delivery
| Packaging: | Strong plywood package with proper soft protection material inside,suitable for long distance for se |
|---|---|
| Delivery/Lead Time: | 20-35 DAYS |
| Production Capacity: | 10 sets per month |
Product Description
Key functional feature 1. High sensitivity optical fiber sensor is used to support the imported servo feeding system to ensure higher punch precision. The punching space position is adjustable by touch screen.

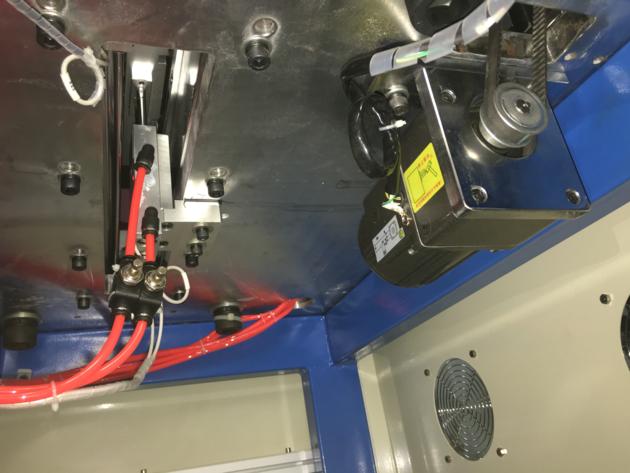

2. The durable servo motor system is applied to work as the punching power, which has lower noise, failure ratio and more reliable operation.

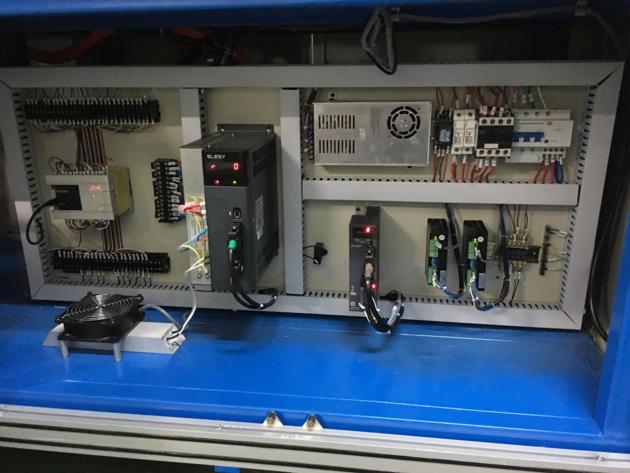

3. The machine is controlled with PLC system. It can punch automatically after the big sheet is manually loaded.
Technical Parameter:
Power Supply: AC 380V/50 HZ
Material: Various plastic sheets including PVC, ABS, PETG, etc.
Total Power: 3.5KW
Material Size: 3X8, 4X8 or 5X8
Air Source: 6 kg/c㎡(Dry)
Speed: 9000~12000 pcs /hr
Air Consumption: 70L/min
Control Method: PLC programming+ servo system
Weight: around 800Kg
Operator: 1 person
Precision: «0.10mm
Dimension: L1700×W830×H1520mm
|
