Self-Adhesive Card Antenna Copper Wire MACW-1
| Price: | US$ 1 / Roll |
|---|---|
| Minimum Order: | 10 Rolls |
| Payment Terms: | T/T, Western Union, Paybal, etc. |
| Port of Export: | Shanghai Port |
Product Details
| Model No.: | MACW-1 | Brand Name: | MK |
|---|
| Certification: | |
|---|---|
| Specification: | Self-Adhesive Card Antenna Copper Wire MACW-1 is specially used for making the copper antenna by means of ultrasonic embedding process. It applies polyurethane material with the temperature resistance degree of 160-180 degree Celsius. It is produced according to JIS or NEMA standards. It features stable resistance, perfect viscosity, color uniformity and good product consistency. It has been widely used by many card INLAY producers worldwide. |
Packaging & Delivery
| Packaging: | 50 Rolls per carton |
|---|---|
| Delivery/Lead Time: | 10-25 Work days |
| Production Capacity: | 50000 rolls per week |
Product Description

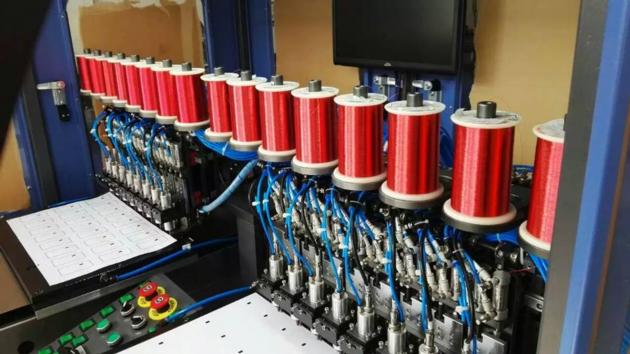

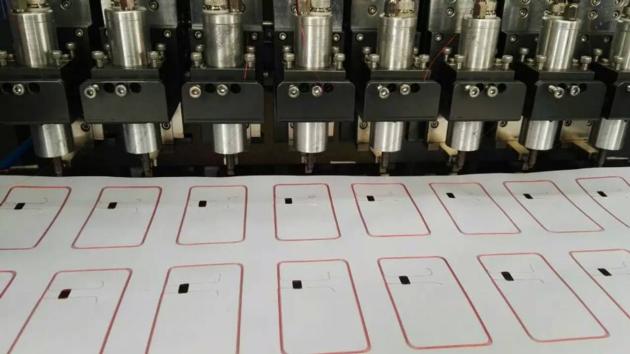

Self-Adhesive Card Antenna Copper Wire MACW-1 is specially used for making the copper antenna by means of ultrasonic embedding process. It applies polyurethane material with the temperature resistance degree of 160-180 degree Celsius. It is produced according to JIS or NEMA standards. It features stable resistance, perfect viscosity, color uniformity and good product consistency. It has been widely used by many card INLAY producers worldwide.
Technical Parameters:
1. Color: Red
2. Conductor diameter(mm): 0.10«0.001
3. Electrical resistance (Ω/m): 2.176«3%
4. Size: Overall diameter(mm): 0.135«0.004; Insulated layer(mm): 0.019~0.023; Adhesive layer thickness(mm): 0.012~0.016
5. Elongation(%): ≥19%
6. Intensity(g): ≥130
7. Brine Pinhole(Piece): ≤6M/8
8. Breakdown voltage(V): ≥2200
9. Solder temperature(℃): 380«5℃
10. Self-adhesive method: Bonding with hot air
11. Melting strength(g): ≥30
12. Melting temperature(℃): 160~180℃
13. Temperature level: F
14. Shelf life(20℃): 1-2 years
|
