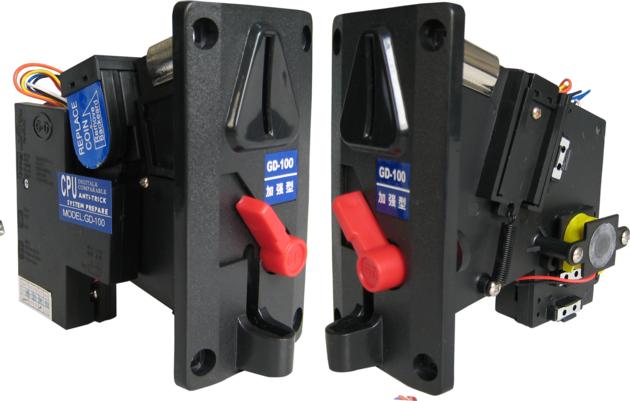

Scale weigh machine comparable coin selectors
| Price: | US$ 5 / Set |
|---|---|
| Minimum Order: | 50 |
| Payment Terms: | FOB |
| Port of Export: | shanghai |
Product Details
| Model No.: | [GD]100 | Brand Name: | Gondu |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Specifications .Rating voltage: DC+12V with 20percent discrepancy .Stand by Current: 50mA-55mA .Operating Current: 310mA-340mA .Accepted coin diameter: 18mm-32mm .Accepted coin thickness: 1.2mm-3.0mm .Size per unit: W 15.3 x D6.5 x H13(mm) .Net weight: 0.33kgs .Packing: 50 pcs/case .Per case: 16.6 kgs .Size per case: W780 x D360 x H278(mm) |
Packaging & Delivery
| Packaging: | carton |
|---|---|
| Delivery/Lead Time: | 3 |
| Production Capacity: | 100000 |
Product Description
1 coin acceptance comparable type,updated technology.Best quality with lowest price.most accurate recognition capabilty. Operation: 1.Firstly remove the yellow plastic token& replace the coin to the clamp.
2.If use RMB 1.please switch (SW3) to RMB Only
3.Choose N.O(Normal Open) or N.C(Normal Close) in coordination with the machine specification.(Normally Mario Machines should be N.C.Gaming Machines be N.O )
4.Switch to "SW2":
Fast: 25ms/short pulse signal (apply to Mario Machine)
Medium: 50ms/medium pulse signal (apply to different machine)
Slow: 100ms/long pulse signal (apply to entertainment machine)
Notice: If coin-eating .please adjust the switch.
5.VR turning for sensitivity of coin acceptance: turn clockwise (+)for strict coin selecting: anti-clockwise(-)for slack.
6.Lines guide of connector:
1)Gray line
Red line DC+12V
2)White line COIN Signal
3)Black line Ground
4)Gray line
|
