Sanitation Vehicle Cylinders

Brief introduction of garbage truck hydraulic cylinders:
Sanitation vehicle cylinders are widely used in various types of compressed sanitation garbage truck hydraulic systems. The series of cylinders include push plate cylinders, sliding cylinders, scraper cylinders, lift cylinders, and the like. The push plate cylinder is a double-acting multi-stage telescopic sleeve hydraulic cylinder.
Product Description
Product Advantage:
Sanitation vehicle cylinders are widely used in various types of compressed sanitation garbage truck hydraulic systems. The series of cylinders include push plate cylinders, sliding cylinders, scraper cylinders, lift cylinders, and the like. The push plate cylinder is a double-acting multi-stage telescopic sleeve hydraulic cylinder, and the inlet and outlet ports are all arranged at the rod end. The series of cylinders are reasonable in structure, reliable in operation, convenient in assembly and disassembly, and easy to maintain. Special designs can be made according to the user's special needs and technical parameters.
Technical Specification:

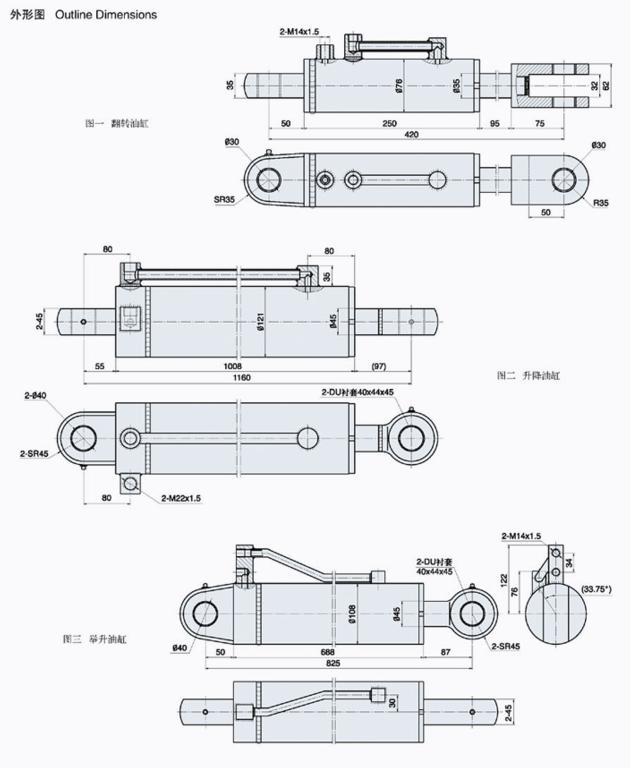

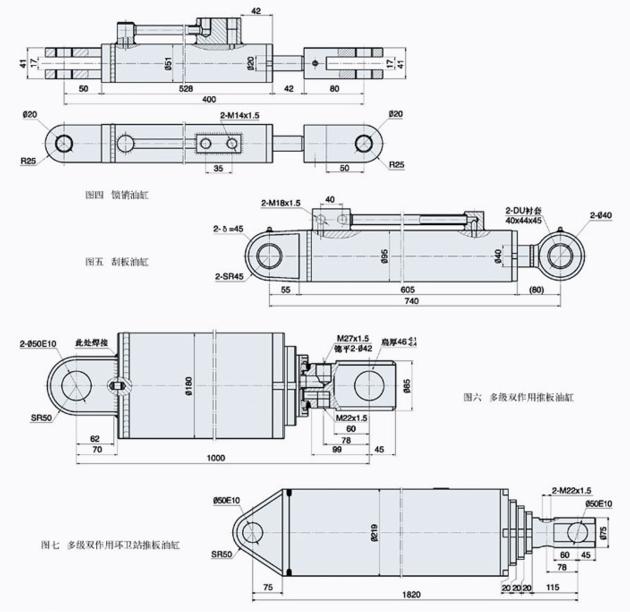

Model Name Pressure MPa Stroke mm Bore/Rod mm
HSG63/35-110X470 Flipping cylinder 16 110 63/35
HSG100/45X800 Lifting cylinder 800 100/45
HSG90/45X485 Lifting cylinder 485 90/45
HSG40/20-400X700 Lock pin cylinder 18 400 40/20
HSG80/40X430 Scraper cylinder 430 80/40
3HSTG150-1935AX1000 Multi-stage double-acting pusher cylinder 16 1935 150/120/90(135/105/75)
4HSTG180X5500 Multi-stage double-acting pusher cylinder 5500 180/150/120/90(165/135/105/75)
