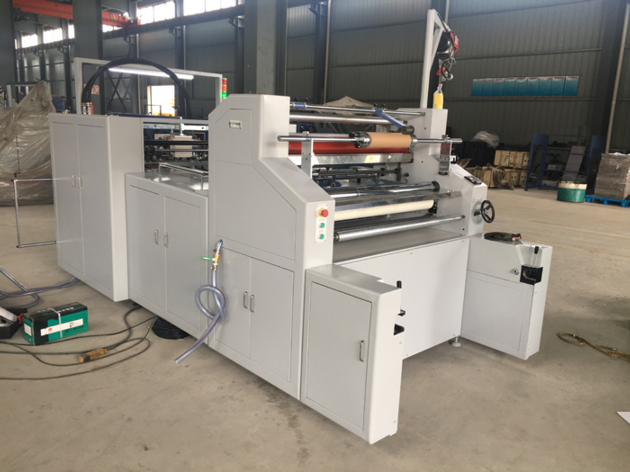

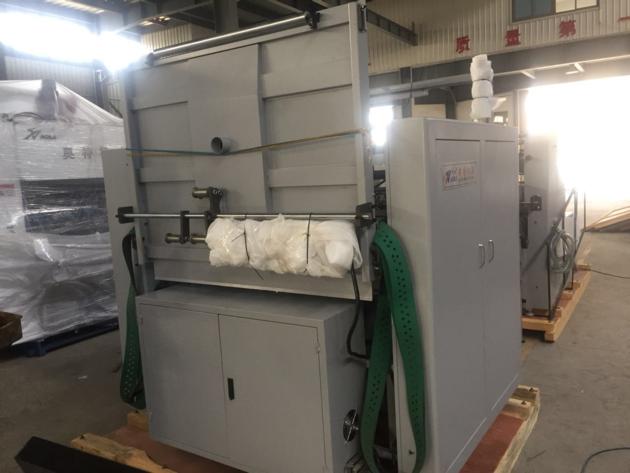

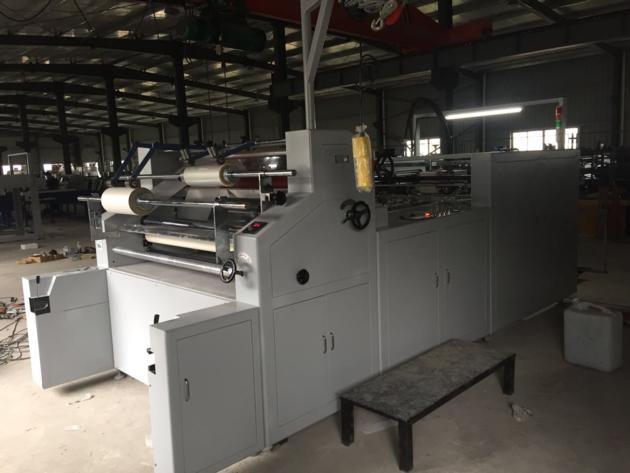

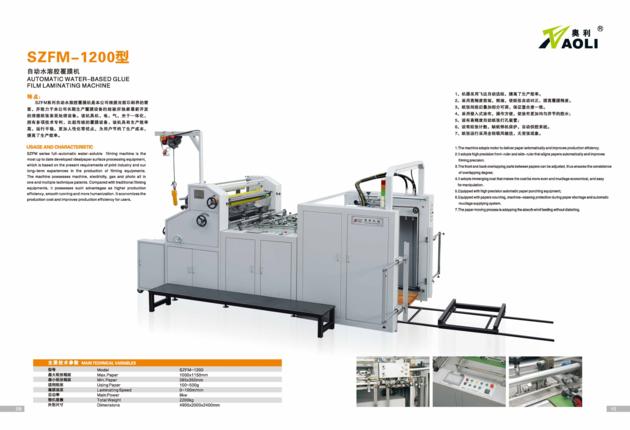

SZFM-1200 automatic waterbased film laminating machine
| Price: | US$ 21000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, L/C |
| Port of Export: | Ningbo |
Product Details
| Model No.: | SZFM-1200 | Brand Name: | Aoli |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Website aotechina.com/en
for waterbased glue cold lamination Model SZFM-1200 Max.Paper Size 1000X1150mm Min.Paper Size 285X350mm Paper Thickness 100-500gsm Film Thickness 8~25 micron Max. Speed 100m/min Voltge 380V 50Hz Total Power 8KW Working Power 3~5KW Lap Accuracy «2mm Coating Glue Amount 3~8g/m^2 Hight of Feeder Pile 1000mm Dimension (L*W*H) 4900×2000×2100 mm Wood Box Dimension (L*W*H) 1.1820×2050×2200 mm(FEEDER) 2.2000×2050×1900 mm(LAMINATING PART) Total Weight 2000 kg |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 30 Days |
| Production Capacity: | lamination with plastic film and paper sheet |
Product Description
SZFM-1200 Automatic Waterbased Cold Laminating Machine is designed for cold waterbased glue lamination, speed up to 100m/min, features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, easy to operate.
Configuration & Functions
1. Automatic High Speed Feeder: Adopt high speed pneumatic offset feeder, speed up to 100m/min. Pre-stacking system can realize non-stop feeding, obviously improving work efficiency.
2. High Accuracy Lap Control: Servo-controlled lap within «2mm, synchronizes with feeder, high accuracy front lay and pnuematic side lay regulator ensure accurate and stable position.
3. Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper overlap.
4. Immerging Coating System: Adopts immerging coating method, can save glue consumption and easy to control coating amount.
5. Heating Lamps: Equipped with heating lamps, ensure that the machine can work in cold weather.
6. Perforation Knife: Equipped with high accuracy perforation knife, cooperate with our pneumatic differential pull and separating device to cut sheets perfectly.
7. Rewind to Roll: After lamination, the sheets are rewound to roll to dry the glue and prepare for cutting.
8. Anti-curvature Delivery Platform: Especially designed for thin paper, avoid paper curvature.
|
