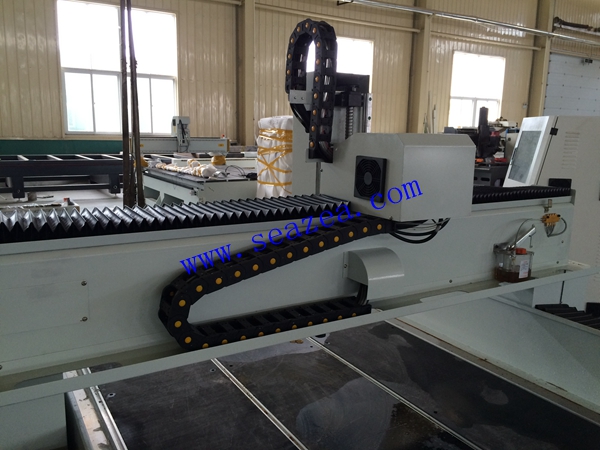

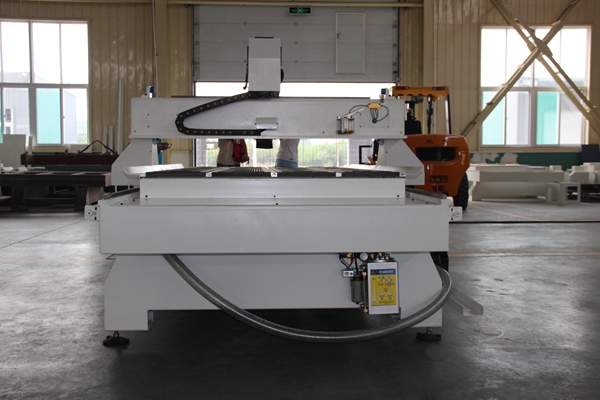

SZ1325 cnc router for wood carving and cutting

Name SZ-1325C CNC Router
X,Y,Z Working Area 1300x2500x200mm
Table Size 2320x3050mm
X,Y,Z Traveling Positioning Accuracy (stepper) ¯0.01/300mm
X,Y,Z Traveling Positioning Accuracy (servo) ¯0.01/670mm
X,Y,Z Repositioning Accuracy(stepper) ¯0.015 mm
X,Y,Z Repositioning Accuracy(servo) ¯0.01 mm

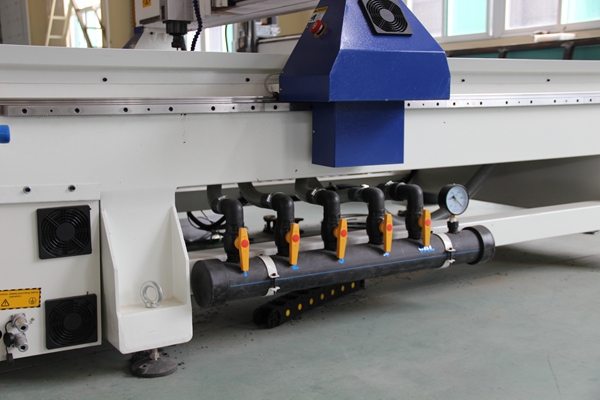

Table Surface 4-6 zones Vacuum and T-slot combined(Optional: air vacuum pump; water vacuum pump; T-slot working table)
Frame 8mm Steel Tube Welded Structure(Square tube size:300*300mm)
X,Y Structure Rack and Pinion Drive, HIWIN/PMI Rails Linear Bearings
Z Structure HIWIN/PMI Rails Linear Bearings and Ball Screw
Max. Power Consumption 12.5KW
Max. Rapid Travel Rate
(Stepper motor) 33,000mm/min
Max. Rapid Travel Rate
(Servo motor) 52,500mm/min
Max. Working Speed
(Stepper motor) 25,000mm/min
Max. Working Speed
(Servo motor) 36,000mm/min
Max. Working Speed 25,000mm/min
Spindle Speed 0-24000 RPM
Drive Motors Leadshine stepper motor
Working Voltage AC380V/50Hz/3PH
Command Language G Code
Operating System DSP control system
(Options: Germany Siemens/ Nc studio/DSP)
Computer Interface USB
Collet ER25
X,Y Resolution < 0.01mm
Software Compatibility Type3/ Ucancame V9 software (Option: Artcam Software)
Running Environment Temperature -10®-60®
