SWACO MD-2/MD-3

Replacement Screens for M-I SWACO MD-2 & MD-3 Shakers
Technical Parameter

Mesh Material: stainless steel 304/316/316 L.
Frame Material: PT.
Screen Type: XR.
Size: 615 × 610 mm.
Weight: 6.5 kg.
API RP 13C Designation: API 20 – API 325.
Package: packed in paper carton, shipped by wooden case.
Replacement shaker screen for SWACO MD-2 and MD-3 shale shaker.
SJ-MD-2/3 shaker screen is a kind of composite frame shaker screen specified for both M-I SWACO MD-2 dual flat-deck shaker and MD-3 triple-decker shale shaker. M-I SWACO MD-2 shale shaker is suitable for both onshore and offshore applications and MD-3 triple-decker shale shaker mainly targets primarily high-end offshore operations. Reinforced PT frame reduces the friction between the screen and deck plate. Featured by higher throughput, extended screen life, fewer replacements, our screens aim to lower the cost of mud treatment.

Adaptable Shale Shaker Model

SJ-MD-2/3 shaker screens are used as the substitute screen for

M-I SWACO MD-2 dual flat-deck shale shaker.
M-I SWACO MD-3 triple-decker shale shaker.
Competitive Advantage
Composite screen technology increases effective open area.
Improves process capacity and maximizes screen life.
Pre-tensioned screens with light weight for easier handling
Manufactured according to the API RP 13C (ISO 13501).
Scientific & reasonable cost control system for competitive price.
Adequate inventory in the shortest time to meet customers' demand.
Warranty Period: 1 year.
Working Life: 400–450 hours.
Performance Parameter
Download Catalogue
Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Non-Blank Area (sq.ft)
SJ-MD-2/3-A325 XR API 325 0.3 48 2.64
SJ-MD-2/3-A270 XR API 270 0.48 57 2.64
SJ-MD-2/3-A230 XR API 230 0.68 61 2.64
SJ-MD-2/3-A140 XR API 140 1.04 100 2.64
SJ-MD-2/3-A140 XR API 140 1.1 110 2.64
SJ-MD-2/3-A120 XR API 120 1.3 117 2.64
SJ-MD-2/3-A100 XR API 100 2.6 142 2.64
SJ-MD-2/3-A70 XR API 70 3.59 204 2.64
SJ-MD-2/3-A60 XR API 60 3.62 233 2.64
SJ-MD-2/3-A60 XR API 60 4.3 237 2.64
SJ-MD-2/3-A325 XL API 325 0.38 44 2.64
SJ-MD-2/3-A230 XL API 230 0.39 61 2.64
SJ-MD-2/3-A200 XL API 200 0.78 72 2.64
SJ-MD-2/3-A200 XL API 200 1.12 78 2.64
SJ-MD-2/3-A140 XL API 140 1.62 100 2.64
SJ-MD-2/3-A140 XL API 140 1.77 116 2.64
SJ-MD-2/3-A100 XL API 100 2.2 144 2.64
SJ-MD-2/3-A80 XL API 80 4.39 186 2.64
SJ-MD-2/3-A70 XL API 70 3.15 205 2.64
SJ-MD-2/3-A60 XL API 60 3.98 239 2.64
SJ-MD-2/3-A50 XL API 50 6.02 295 2.64
SJ-MD-2/3-A35 XL API 35 10.39 480 2.64
SJ-MD-2/3-A20 XL API 20 12.01 787 2.64
* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.

Show Details

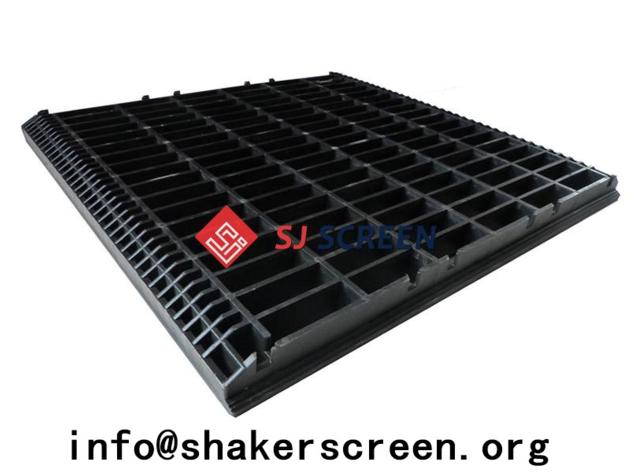

The back view picture of composite shale shaker screen for SWACO MD-2 and MD-3 shale shaker.
SWACO MD-2/3 screen replacement (reverse)

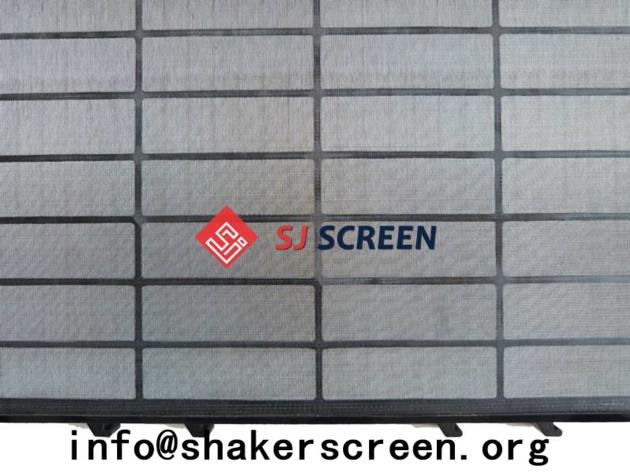

Replacement SWACO MD-2/MD-3 shaker screen made of SS 304 wire mesh cloth.
Top-quality stainless steel wire mesh cloth

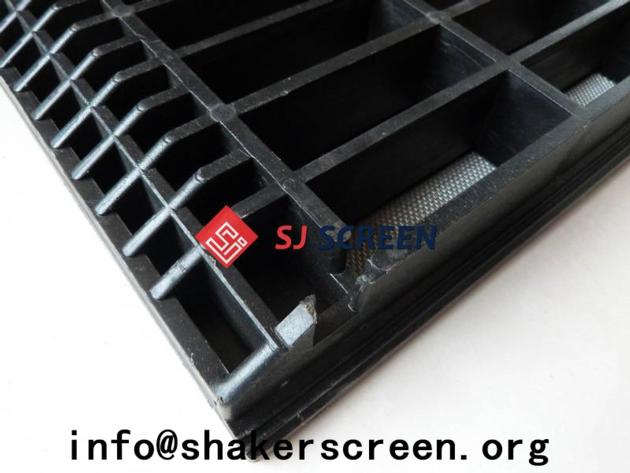

Replacement SWACO MD-2/MD-3 shaker screen with supporting bar.
PT back supporting framework

Replacement SWACO MD-2/MD-3 shaker screen with coupling hooks.
Coupling hooks

Remarks:

M-I SWACO, MD-2, MD-3 are marks of M-I L.L.C.

ShengJia only produces the replacement screens but not original from M-I SWACO.
