SUNBEARING UC218 Pillow Block Bearing Silver 90*160*96mm Chrome Steel GCR15

Product Description

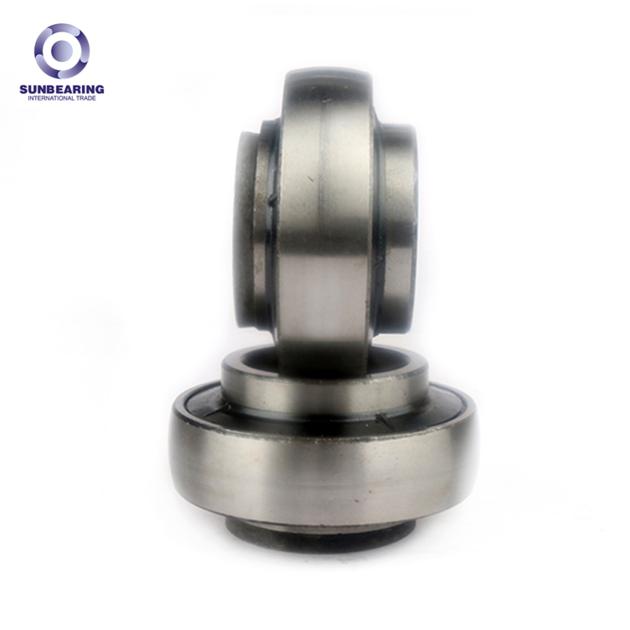

UC208 pillow block bearing

Product Name

Pillow Block Bearing UC218

Structure

Pillow block Bearing

Seals

Rubber Seal

Bore Size

90mm

Bore Type

Round

Outside Diameter

160mm

Duty Type

Medium Duty, Heavy Duty and Others

Width

96mm

Operating Temperature Range:

-35 to +102®C

Material

Plastic; Chrome Steel , Carbon Steel , Stainless Steel

Lubrication Type:

Oil; Grease;

Cage

GCR 15, Stainless steel etc.

Series:

UC

Certificate

ISO9001:2008

Features

Bearings and housings are fully interchangeable: Easy to install

Colour

Silver

Bearing Structure

Spherical Surface Ball Bearing

The Number Of Row

Single

Weight

4.3kgs

Clearance

C2 C0 C3 C4 C5

Tolerance

ABEC1 ABEC3 ABEC5 ABEC7

Pillow Block Bearing Introduction:
Pillow Block Ball Bearing is a bearing unit that combines a rolling bearing with a bearing housing. Most of the outer spherical bearings are made of spherical surfaces and are mounted together with imported bearing housings with spherical inner holes. The structure is diverse, versatile and interchangeable.

At the same time, these bearings are also designed with a certain degree of self-alignment, easy to install, and have a double-structured sealing device that can work in harsh environments. The bearing housing is typically cast. Commonly used seats are vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat (T )Wait.





UC Pillow Block Bearing Feature:



1.With automatic self-aligning function
2.Large load capacity
3.long lasting
4.Excellent sealing
5.Robust housing
6.The bearing can be easily locked on the shaft
7.Special inner heat treatment of bearing inner ring
8.Unique design to prevent rotation of the outer ring
9.Bearings and housings are fully interchangeable
10.Easy to install
