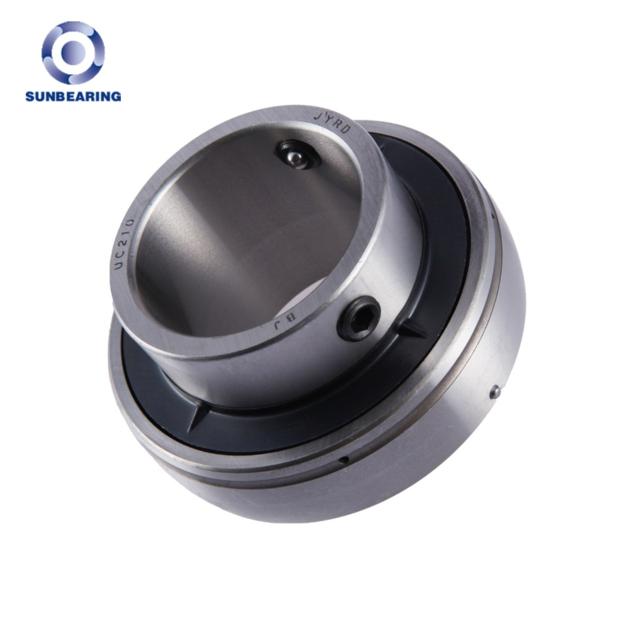

SUNBEARING UC210 Pillow Block Bearing Silver 50*90*51.6mm Stainless Steel GCR15

PRODUCT DESCRIPTION

Product Name

Pillow Block Bearing UC210

Structure

Pillow block Bearing

Seals

Rubber Seal

Bore Size

50 mm

Bore Type

Round

Outside Diameter

90 mm

Duty Type

Medium Duty, Heavy Duty, and Others

Width

51.6 mm

Operating Temperature Range:

-20 to +120®C

Material

Chrome Steel, Carbon Steel, Stainless Steel

Lubrication Type:

Oil; Grease;

Cage

GCR 15, Stainless steel etc.

Series:

UC

Certificate

ISO9001:2008

Features

High-loading by the advanced high-technical design; Long life with high quality

Colour

Silver

Bearing Structure

Spherical Surface Ball Bearing

The Number Of Row

Single

Weight

1kgs

Clearance

C2 C0 C3 C4 C5

Tolerance

ABEC1 ABEC3 ABEC5 ABEC7



Pillow blocks are usually referred to the housings which have a bearing fitted into them and thus the user need not purchase the bearings separately. Pillow blocks are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.


Different types of bearing housings


1)Pillow blocks – these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.

These mounted bearings are used when support for a rotating shaft axis is required. Their design enables them to support the shaft in operations where the mounting surface is parallel to the shaft axis.


2)Flange type includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.

The flange type bearing housing comes in various shapes and styles such as square, round, and rhombus flange types.


3)Take-up units type - UCT, HCT, and UKT.

These bearing housings have an inner surface that is concave sphered hence the bearing used has a convex sphered outer surface. They are designed to permit moderate initial misplacement. Widely used in conveyor chains and conveyor belts. A sliding slot at the side of the housing facilitates the free movement of the unit.


4)Cartridge type – UCC, HCC, and UKC.


Pillow block application:

Pillow block used for agricultural machinery, transportation systems or construction machinery, textile machinery, ceramics machinery
