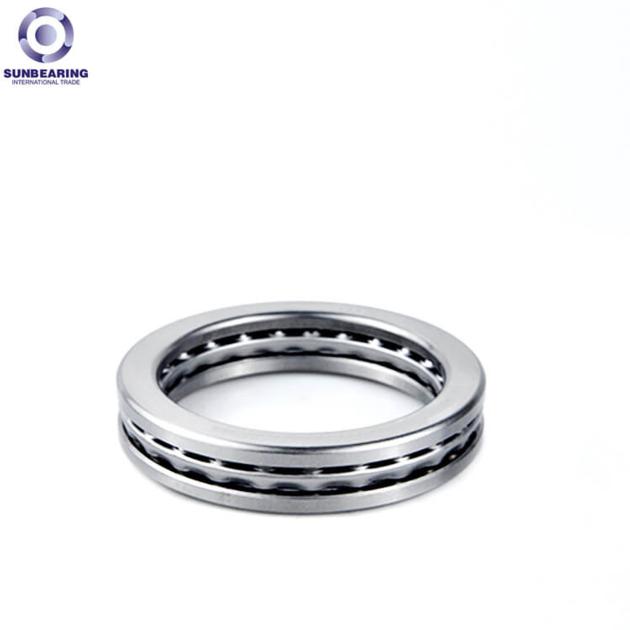

SUNBEARING Thrust Ball Bearing 51308 Silver Gray 40*78*26mm Chrome Steel GCR15
| Price: | US$ 4.14 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Dalian |
Product Details
| Model No.: | 51308 | Brand Name: | SUNBEARING |
|---|
| Certification: | ISO9001:2008 |
|---|---|
| Specification: | Simple structure and easy to use；Less friction and low noise |
Packaging & Delivery
| Packaging: | According to customer requirements |
|---|---|
| Delivery/Lead Time: | 2-4 week |
| Production Capacity: | 2000 |
Product Description
Product Description Thrust Ball Bearing 51308
Specification
Design Units
Metric
Structure
Ball Bearing
Weights
0.536kgs
Cage Material
Steel cage
Material
Chrome Steel GCR15
Ball Type
Carbon chromium steel
Seals Type
Open
Certificate
ISO9001:2008
Advantage
Prompt Delivery shipped within 72 hours; Simple structure and easy to use；Less friction and low noise
Number of Row
Single
Dimensions
d-Bore Diameter
40mm
D-Outer Diameter
78mm
Precision Rating
P5 P6 P4 P2 P0
Clearance
C2 C3 C4 C5 C0
H-Total Width
26mm

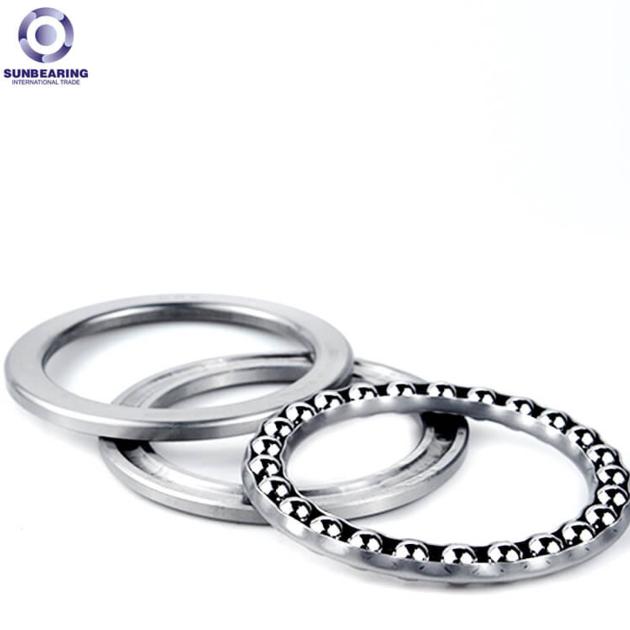

51308 Thrust ball bearing consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Features of thrust ball bearing:
- - Single direction thrust ball bearings: consist of two washers with raceways, balls guided and cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
|
