SUNBEARING Thrust Ball Bearing 51120 Silver 100*135*25mm Chrome Steel GCR15
| Price: | US$ 5.43 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Dalian |
Product Details
| Model No.: | 51120 | Brand Name: | SUNBEARING |
|---|
| Certification: | ISO9001:2008 |
|---|---|
| Specification: | It can withstand axial load in one direction and conduct axial locating |
Packaging & Delivery
| Packaging: | According to customer requirements |
|---|---|
| Delivery/Lead Time: | 2-4 week |
| Production Capacity: | 2000 |
Product Description

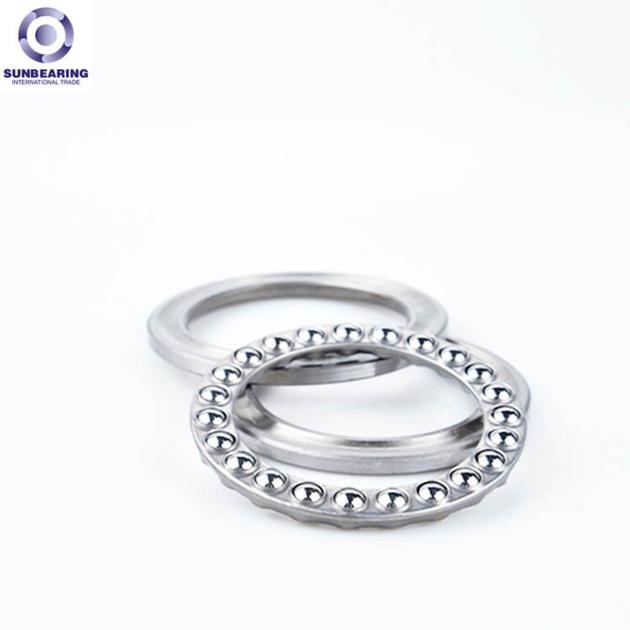

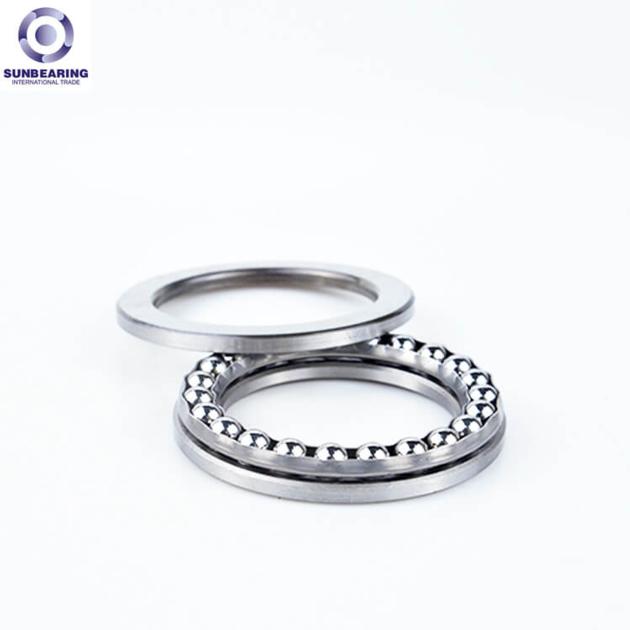

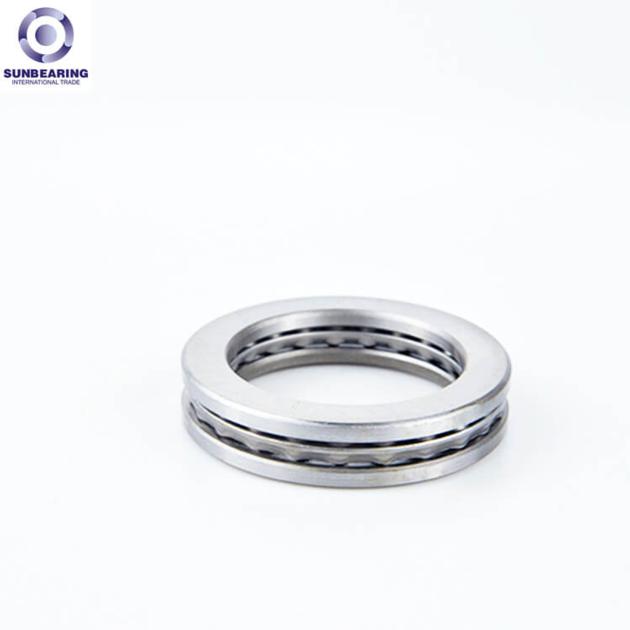

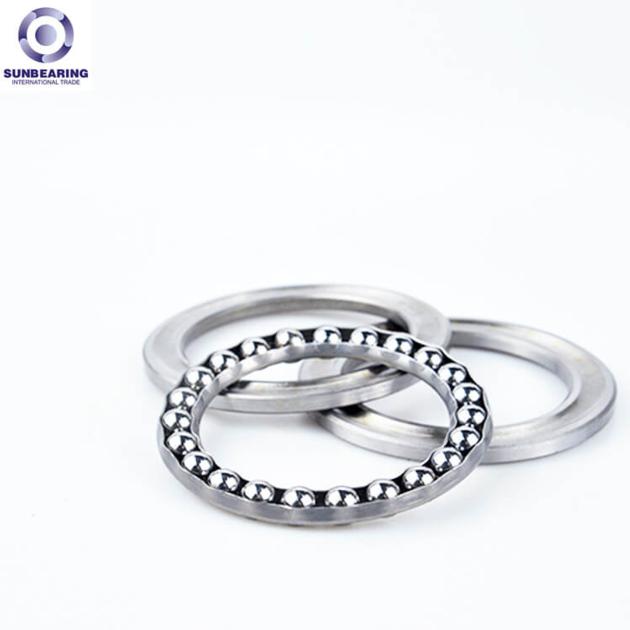

Product Description Thrust Ball Bearing 51120
Specification
Design Units
Metric
Structure
Ball Bearing
Weights
0.96kgs
Cage Material
Steel cage
Material
Chrome Steel GCR15
Ball Type
Carbon chromium steel
Seals Type
Open
Certificate
ISO9001:2008
Advantage
It can withstand axial load in one direction and conduct axial locating
Number of Row
Single
Dimensions
d-Bore Diameter
100mm
D-Outer Diameter
135mm
Precision Rating
P5 P6 P4 P2 P0
Clearance
C2 C3 C4 C5 C0
H-Total Width
25mm
Basic Load Ratings
Cr Dynamic Load Rating
85000N
C0r Static Load Rating
268000N
Application of thrust ball bearing:
1.Thrust Ball Bearings should use close to the radial bearing,
in order to prevent the effect of shafts deflection.
2.When using big size ball bearings on a horizontal shaft, preload should be implemented to
prevent the clearance between housing washer and balls.
3.Under the inevitable circumstances of shaft deflection and misalignment,
aligning seat washer should be applied.
|
