SUNBEARING Thrust Ball Bearing 51100 Silver 10*24*9mm Chrome Steel GCR15
| Price: | US$ 4.14 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Dalian |
Product Details
| Model No.: | 51100 | Brand Name: | SUNBEARING |
|---|
| Certification: | ISO9001:2008 |
|---|---|
| Specification: | Clearance is provided in the bore of one of the raceways to allow for alignment. |
Packaging & Delivery
| Packaging: | According to customer requirements |
|---|---|
| Delivery/Lead Time: | 2-4 week |
| Production Capacity: | 2000 |
Product Description
Product Description Thrust Ball Bearing 51100
Specification
Design Units
Metric
Structure
Ball Bearing
Weights
0.02kgs
Cage Material
Steel cage
Material
Chrome Steel GCR15
Ball Type
Carbon chromium steel
Seals Type
Metal Seals
Certificate
ISO9001:2008
Advantage
Clearance is provided in the bore of one of the raceways to allow for alignment.
Number of Row
Single
Dimensions
d-Bore Diameter
10mm
D-Outer Diameter
24mm
Precision Rating
P5 P6 P4 P2 P0
Clearance
C2 C3 C4 C5 C0
H-Total Width
9mm
Basic Load Ratings
Cr Dynamic Load Rating
10KN
C0r Static Load Rating
14KN

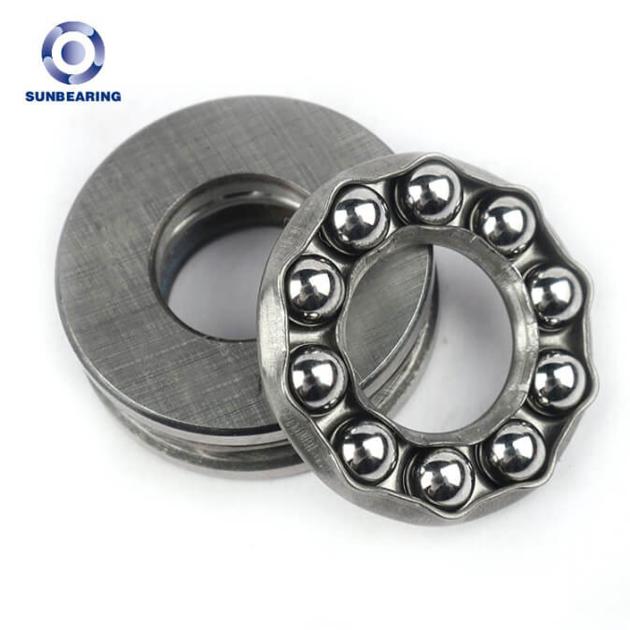

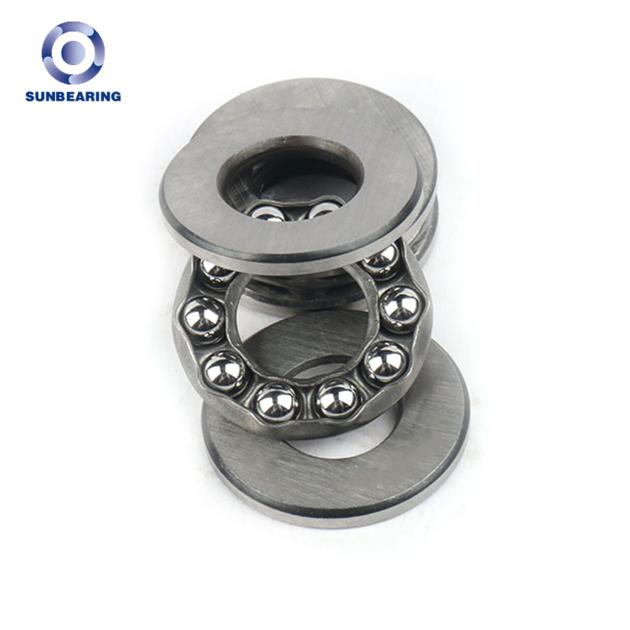

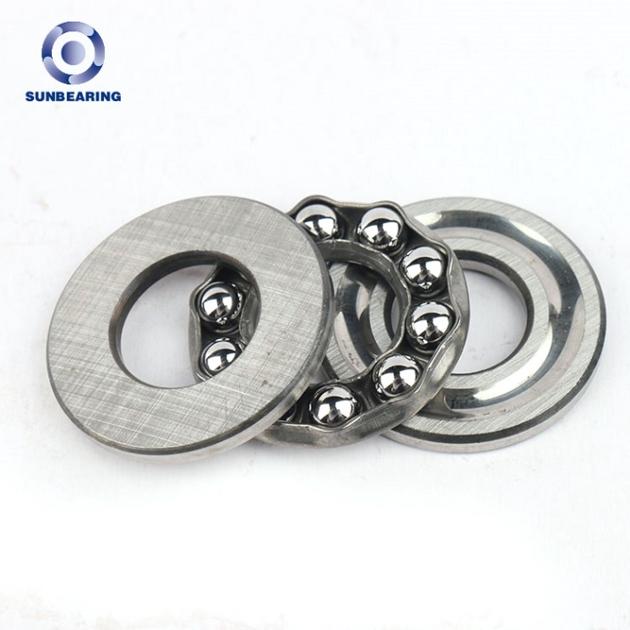

Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Applications of 5110 series thrust ball bearings :
· Road Planes Steel rolling / heavy industry / Transmissions
· Agricultural, pumps, mining
· Rail and transport use
· General heavy engineering applications
Marine, shipping and paper machinery.
|
