SUNBEARING Tapered Thrust Roller Bearing 829950 Brass 250*380*100mm Stainless Steel GCR15
| Price: | US$ 503.66 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Dalian |
Product Details
| Model No.: | 829950 | Brand Name: | SUNBEARING |
|---|
| Certification: | ISO9001:2008 |
|---|---|
| Specification: | According your demands, we can customized the tapered thrust roller bearing if you want. |
Packaging & Delivery
| Packaging: | According to customer requirements |
|---|---|
| Delivery/Lead Time: | 2-4 week |
| Production Capacity: |
Product Description

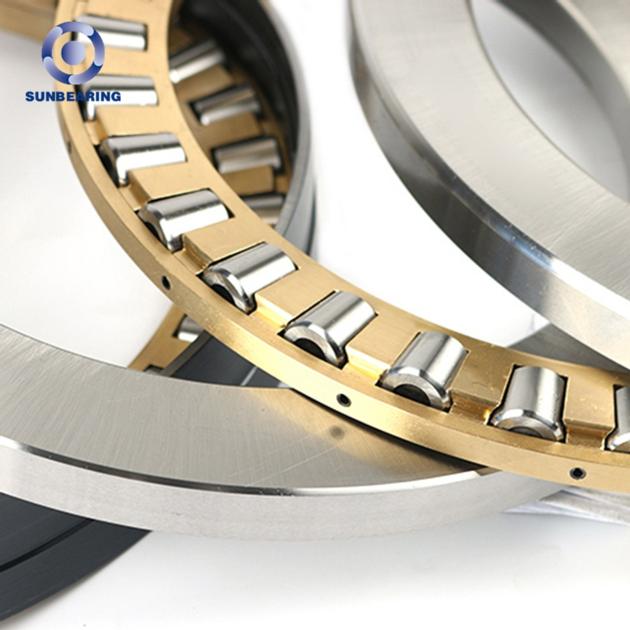

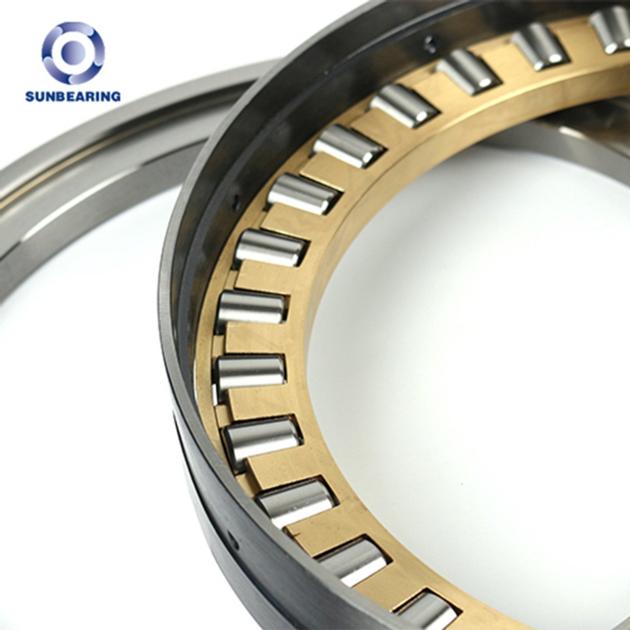

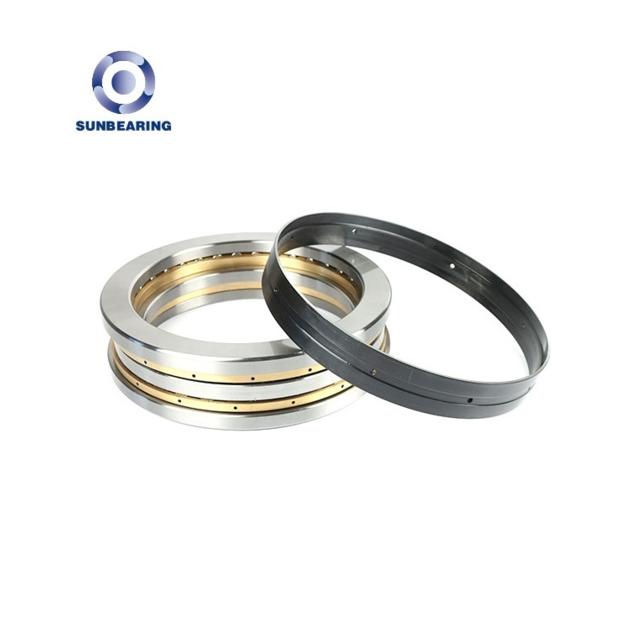

Product Description Thrust roller bearing 829950
Specification
Design Units
Metric
Structure
Roller Bearing
Weights
42.3kgs
Cage Material
Brass
Material
GCR 15, Stainless steel etc.
Roller Type
Tapered
Number of Row
Single
Dimensions
d-Bore Diameter
250mm
D-Outer Diameter
380mm
d1
265mm
D1
275mm
H-Total Width
100mm
r-Fillet Radius
0.6mm
R
2.0mm
da
264mm
Da
285mm
Basic Load Ratings
Cr Dynamic Load Rating
850kN
C0r Static Load Rating
5,00kN
The mode of this bearing is equal to SKF350980C&FAG528974
This bearing with planar shaft washers
Be able to bear slightly eccentric shaft relative to bearing box hole
There is a spacer sleeve between the two housing washer
It can withstand high axial load and can position the axial radial position to some extent
Application Field
829950 Thrust roller bearing is mainly used in steel rolling mills of steel manufacturing, are usually together used with multi-row cylindrical roller bearings.The size of the spacing sleeve makes the roller bearing box cover screw tight, and the bearing does not need special spring to adjust.
The bidirectional thrust tapered roller bearings are usually on the roll neck and roll bearing box to fit installation, most of the shaft bearing seat with one or two positioning slots that you might use embedded locating slot key or similar method to prevent rotation of the housing washes.
|
