SUNBEARING Spherical Roller Bearing 23022 Gold 110*170*45mm Chrome Steel GCR15

Product Description

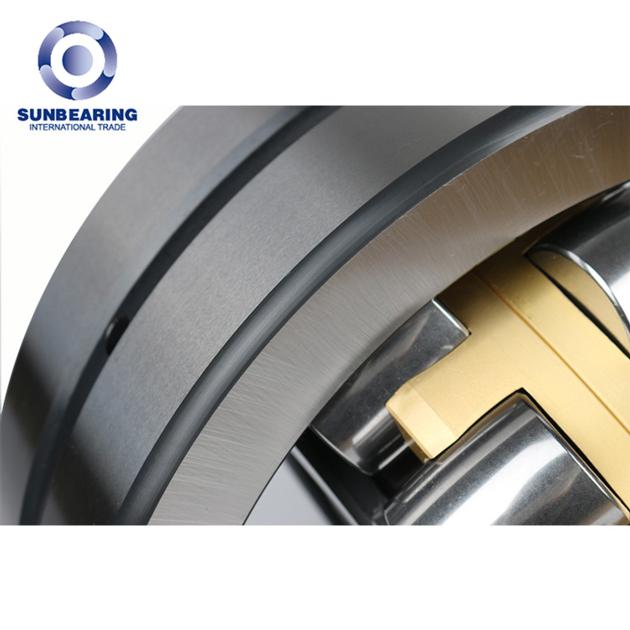

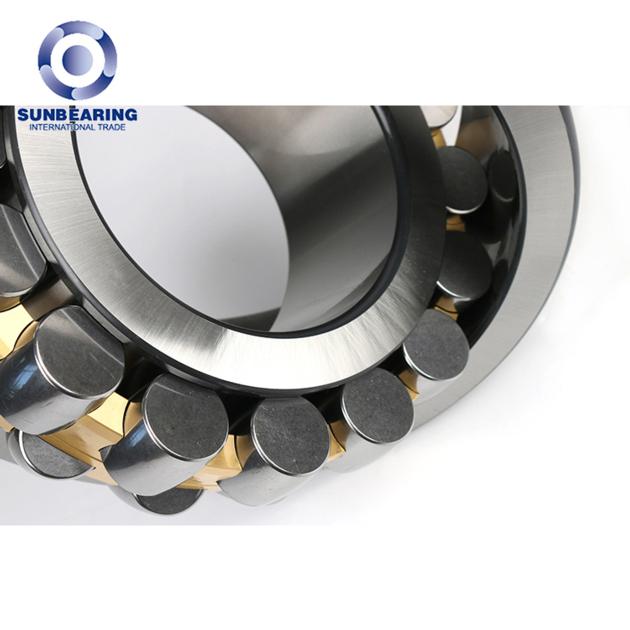

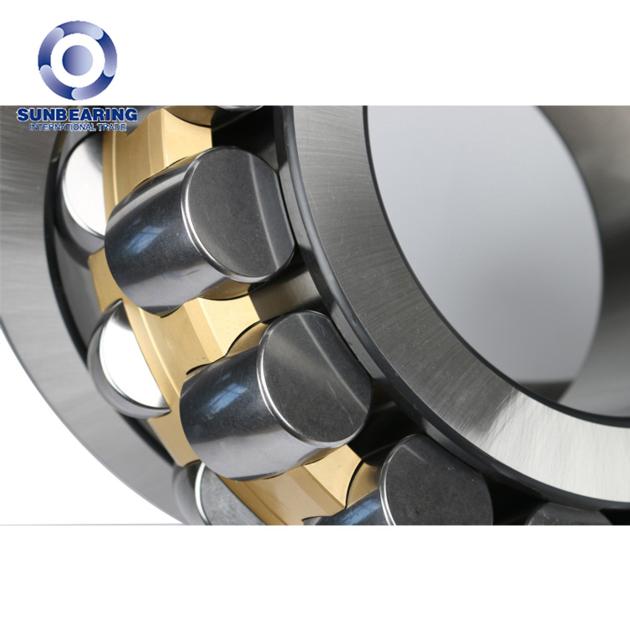

Spherical Roller Bearing 23022

Specification

Design Units

Metric

Structure

Roller Bearing

Weights

3.95kgs

Cage Material

Brass Cage

Material

Chrome Steel GCr15

Roller Type

Steel Roller

Seals Type

Open

Certificate

ISO9001:2008

Number of Row

Double

Dimensions

d-Bore Diameter

110mm

D-Outer Diameter

170mm

Precision Rating

P0 P5 P4 P6

Clearance



C2 C3 C4 C5

H-Total Width

45mm



Product Feature



Cage Type

Features



CC

It consists of two pressed steel cages, flangeless inner ring and guide ring centred on the inner ring, It adopts symmetrical spherical roller,which bear the larger load , longer life compared with CA



CA

It consists of one piece of machined brass cage,one inner ring with double flanges and one guide ring centred on the inner ring.The limit speed is higher,and have a relatively small noise.



MB

It consists of two piece of machined brass cage,one inner ring with double flanges and one guide ring centred on the inner ring.its performance and characteristics are similar to CA, but load rating is lower.





E

It is the latest design, using symmetric spherical roller, two piece of pressed steel cages ,flangeless inner ring and guide ring centred on the cage,Guide ring around the outer can improve lubricating condition on roller face of end.It can also reduce friction,help guiding roller in the nonload region,and assist roller into the loading area,meanwhile,the length of roller is getting longer so that the load ratde has been enhanced. Usually rated load can be increased by 20% -35%.



Our Service



1. Strong Manufacturing Capability



2. Perfect Quality Control System

Every product is rigorously tested before shipment



3. Large Inventory/stock

We could offer from stock throughout the year for most of the general bearing types, such as Deep groove ball bearing, Tapered Roller Bearing, Spherical Roller Bearing, Thrust Ball Bearing, etc.



4. Competitive price

We try our best to provide customers with competitive price and excellent after-sale service and trade term.



5. Shortest Delivery Time

Based on expanded manufacturing capability and large inventory, we could delivery very fast upon request. The shortest delivery time would be within 8 business days.



6. Non-standard Customized Service

We could produce many kinds of non-standard bearings and work piece upon your special requirements. All this need is your special bearing type, drawings or samples.

This is another our great advantage in this field.



7. After-service

We have a complete after-sales service system.



Application Field



Paper making machinery, slow, device, railway vehicle axle, rolling mill gear box, rolling mill roller bearing, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial deceleration machines heavy machinery (e.g. construction and mining machines), rolling mills, gear boxes, shaker screens, etc.
