SUNBEARING Spherical Roller Bearing 22232 CA C3 W33 Silver 160*290*80mm Chrome Steel GCR15
| Price: | US$ 39.5 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Dalian |
Product Details
| Model No.: | 22232 CA C3 W33 | Brand Name: | SUNBEARING |
|---|
| Certification: | ISO9001:2008 |
|---|---|
| Specification: | Keep friction and frictional heat at low levels. Customized bearings are acceptable! |
Packaging & Delivery
| Packaging: | According to customer requirements |
|---|---|
| Delivery/Lead Time: | 2-4 week |
| Production Capacity: |
Product Description

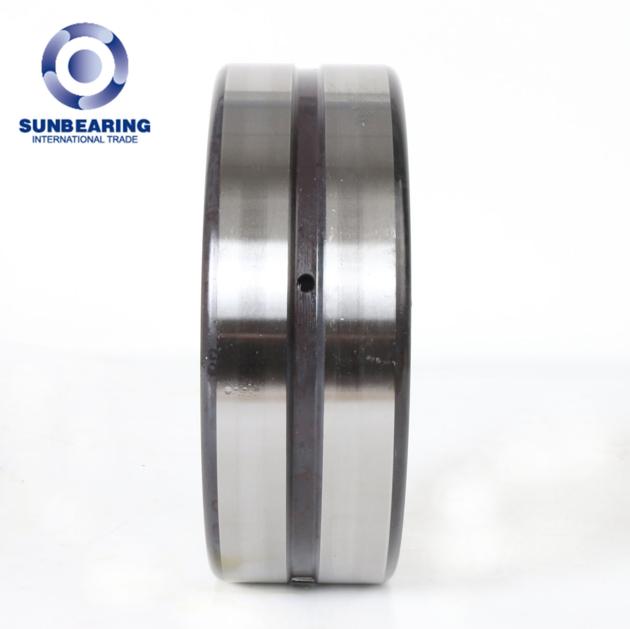

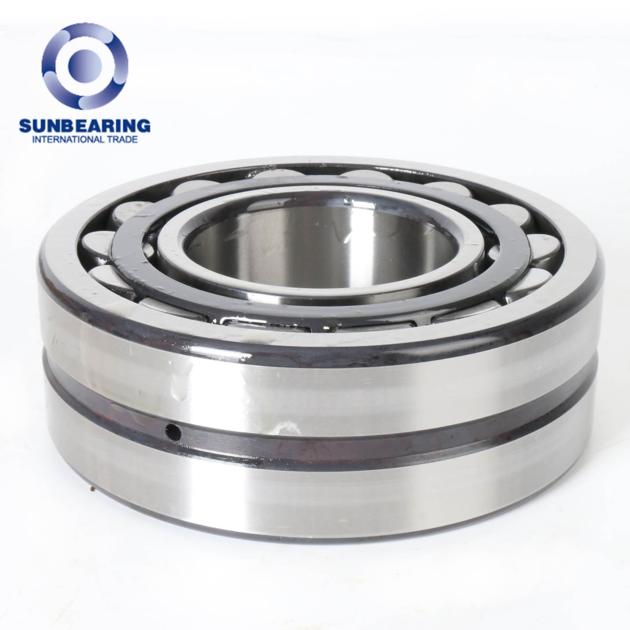

Product Description Spherical Roller Bearing 22232 CA C3 W33
Specification
Design Units
Metric
Structure
Roller Bearing
Weights
24.6kgs
Cage Material
Brass Cage
Material
Chrome Steel GCr15
Roller Type
Steel Roller
Seals Type
Open
Certificate
ISO9001:2008
Number of Row
Double
Dimensions
d-Bore Diameter
160mm
D-Outer Diameter
290mm
Precision Rating
P0 P5 P4 P6
Clearance
C2 C3 C4 C5
H-Total Width
80mm
Basic Load Ratings
Cr Dynamic Load Rating
950000N
C0r Static Load Rating
1380000N
Product Feature
1) Spherical roller bearing are principally provided with two rows of symmetrical spherical rollers and a common sphere raceway in out ring.
2) With good self-aligning ability and can operate when the shaft deflection under load or the shaft deflection under load or the shaft misalignment in mounting, and their permissible aligning angle is 1 to 2.5 degree.
3) This type of bearings has heavy load carrying capacity and anti-impact ability, in addition to radial loads, they also can carry axial loads in two directions
4) In general, this type of bearings permits a low limiting speed.
Our Service
1 Factory price
We have factory. We sell to products to customers with factory price.
2 Durable bearing
Our bearing all adopt high quality material. And it pass many items of testing to guarantee quality. It will help client to choose.
3 After sales service and technical support
We will provide after sales service and technical support according requirements of client.
4 OEM or Non Standard bearing
We can not only make stand bearing, but also manufacture non standard bearing according to requirements of client.
Application Field
Papermaking machinery, reducer, railway vehicle axle, rolling mill gearbox bearing, rolling mill roller, crusher, shaker, printing machinery, woodworking machinery, various industrial reducer.
|
