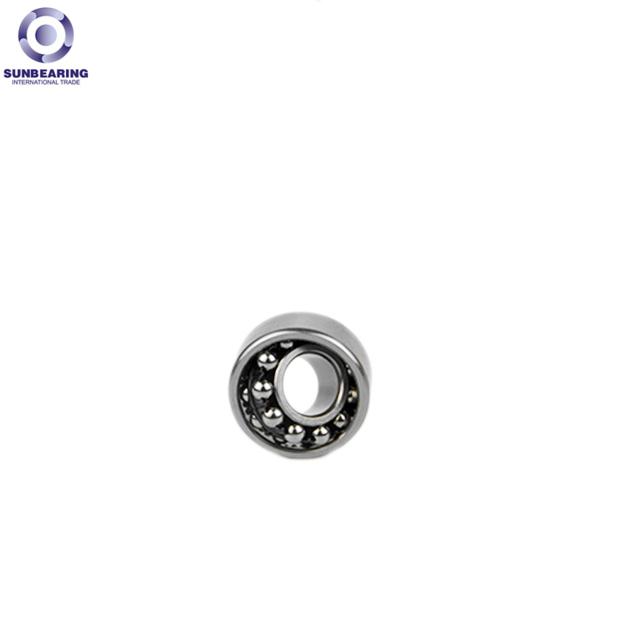

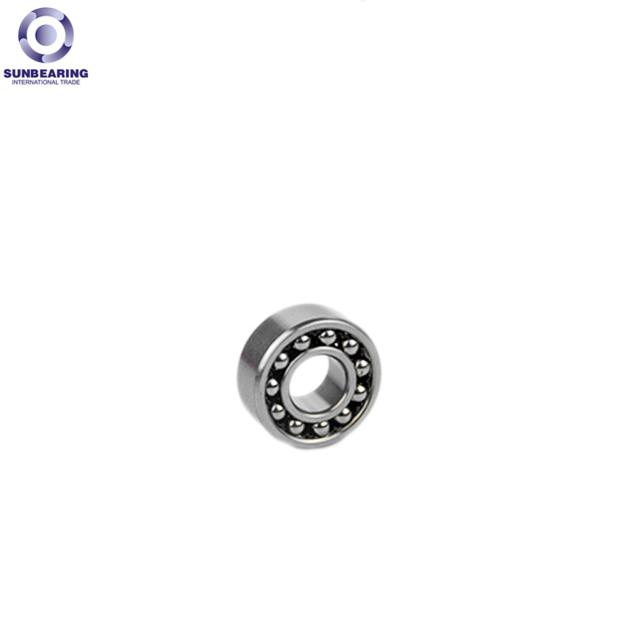

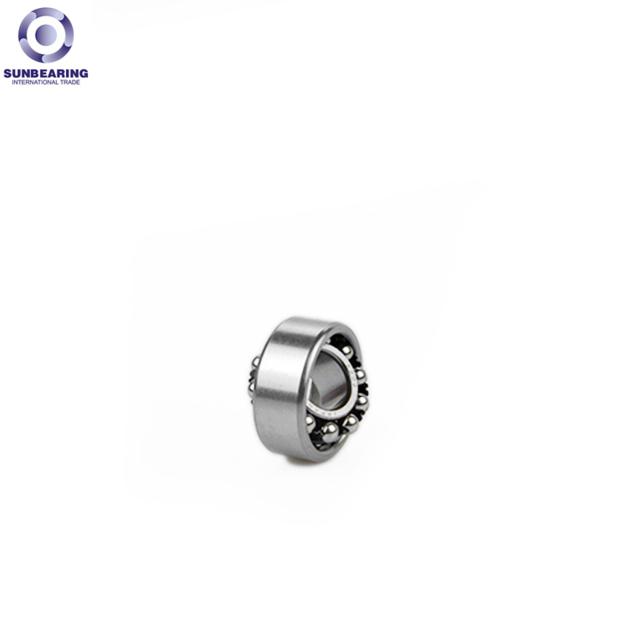

SUNBEARING Self Aligning Ball Bearing 2203 Silver 17*40*16mm Chrome Steel GCR15

Product Description



Thrust Ball Bearing 2203

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

0.085kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Open

Certificate

ISO9001:2008

Feature

With the two rings of barrel-shaped rollers, it can absorb high radial forces.

Number of Row

Single

Dimensions

d-Bore Diameter

17mm

D-Outer Diameter

40mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



C2 C3 C4 C5 C0

H-Total Width

16mm

Basic Load Ratings

Cr Dynamic Load Rating

9950N

C0r Static Load Rating

2420N






Self aligning ball bearings have a spherical outer raceway, the center of whise curvature meets that of the bearing itself, so that the inner ring, balls and cage continue to rotate, aligning themselves it they have become misaligned within design limits. This type of bearing is suitable when the displacement of the centres around which the shaft and the housing rotate and shaft deflection are likely to occur. Bearings with a tapered bore can easily be fit tot he shaft with an adapter assembly. Some self alaigning ball bearings also come in a sealed version. At Bearing Basement, we stock a wide range of self aligning bearings, in a range of manufacturers, both in premium makes and also more economical versions. If you need any help with selection please call or email us and we would be happy to help.
