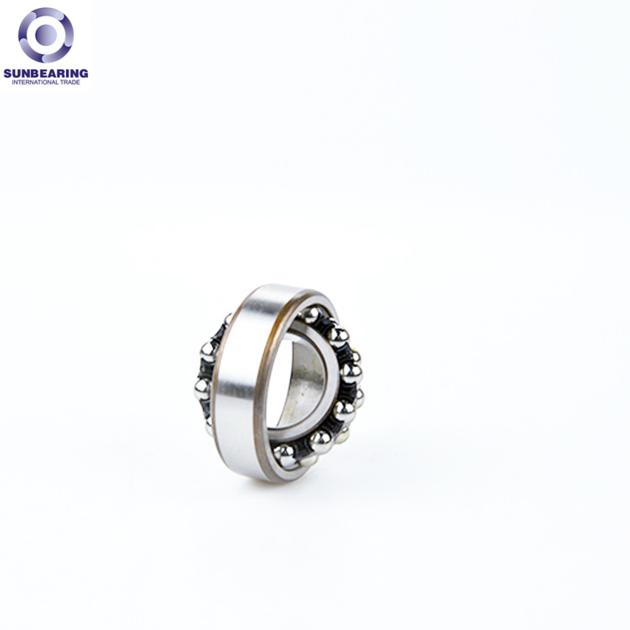

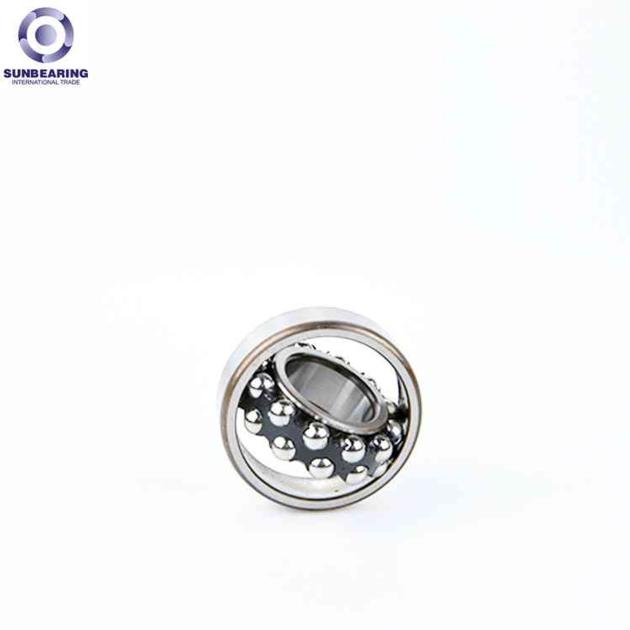

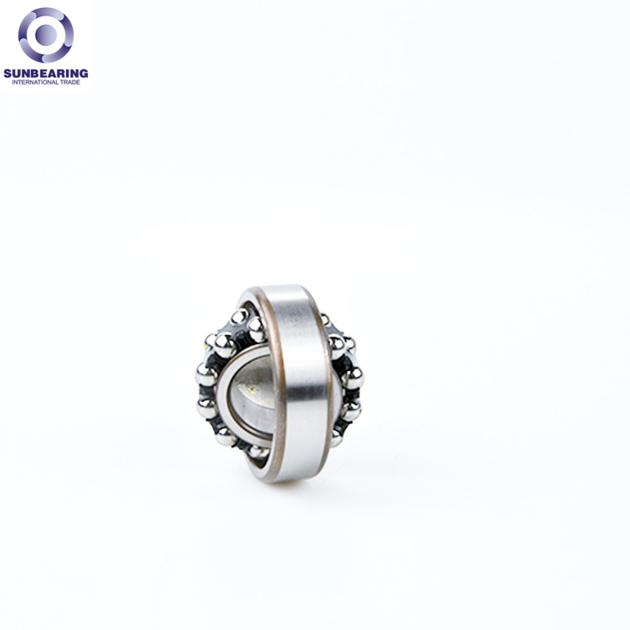

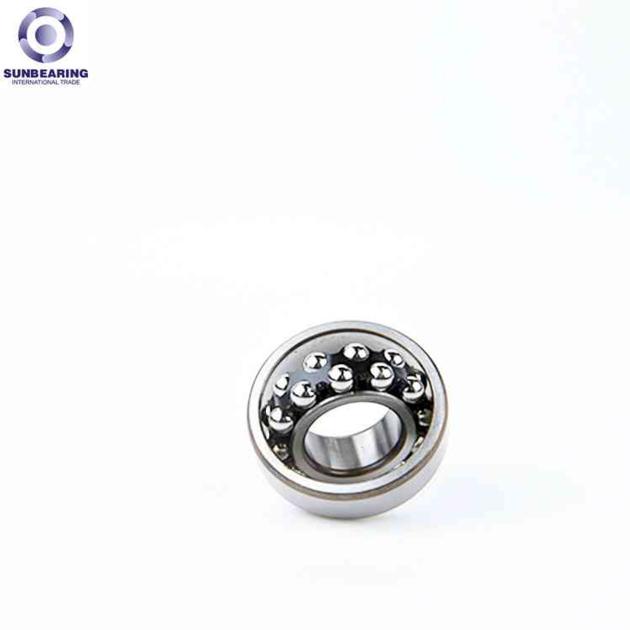

SUNBEARING Self Aligning Ball Bearing 1304 Silver 20*52*15mm Chrome Steel GCR15
| Price: | US$ 1.71 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Dalian |
Product Details
| Model No.: | 1304 | Brand Name: | SUNBEARING |
|---|
| Certification: | ISO9001:2008 |
|---|---|
| Specification: | The material of the bearings is the high quality bearing steel CGr15 |
Packaging & Delivery
| Packaging: | According to customer requirements |
|---|---|
| Delivery/Lead Time: | 2-4 week |
| Production Capacity: | 2000 |
Product Description
Product Description
Thrust Ball Bearing 1304
Specification
Design Units
Metric
Structure
Ball Bearing
Weights
0.174kgs
Cage Material
Steel cage
Material
Chrome Steel GCR15
Ball Type
Carbon chromium steel
Seals Type
Open
Certificate
ISO9001:2008
Feature
The material of the bearings is the high quality bearing steel CGr15
Number of Row
Single
Dimensions
d-Bore Diameter
20mm
D-Outer Diameter
52mm
Precision Rating
P5 P6 P4 P2 P0
Clearance
C2 C3 C4 C5 C0
H-Total Width
15mm
Basic Load Ratings
Cr Dynamic Load Rating
12600N
C0r Static Load Rating
3350N
1.The components of the self aligning ball bearings include two rows of balls, the cage, the inner ring,
and the outer ring with a common concave sphered raceway
2.The material of the bearings is the high quality bearing steel CGr15
3.Particularly suitable for applications where considerable shaft deflections or misalignment are to be
expected
4.produces self-aligning ball bearings to several designs. These are
– open bearings of the basic design
– sealed bearings
– open bearings with an extended inner ring
– self-aligning ball bearing are constructed with the inner ring and ball assembly contained within an outer ring that has a spherical raceway .This construction allows the bearing to tolerate a small angular misalignment
resulting from deflection or improper mounting
|
