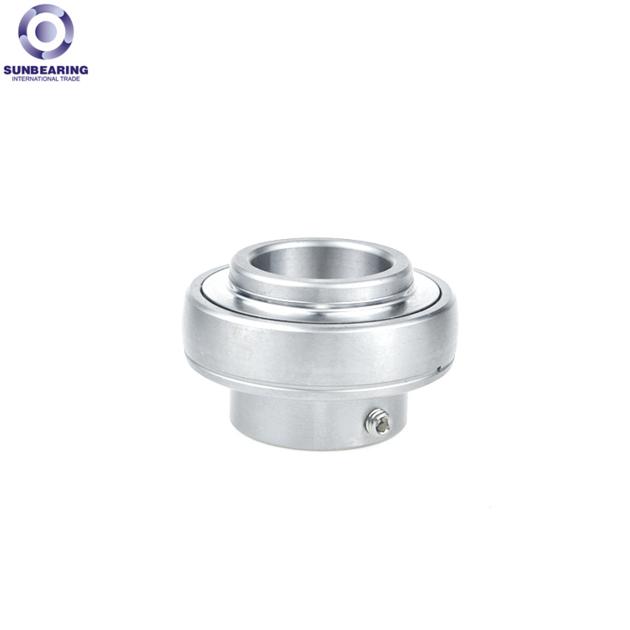

SUNBEARING Pillow Block Bearing UC213 Silver 65*120*65.1mm Stainless Steel GCR15

Product Description



Product Name

Pillow Block Bearing UC213

Structure

Pillow block Bearing

Seals

Rubber Seal

Bore Size

65mm

Bore Type

Round

Outside Diameter

120mm

Duty Type

Medium Duty, Heavy Duty and Others

Width

65.1mm

Operating Temperature Range:

-35 to +102®C

Material

Plastic; Chrome Steel , Carbon Steel , Stainless Steel

Lubrication Type:

Oil; Grease;

Cage

GCR 15, Stainless steel etc.

Series:

UC

Certificate

ISO9001:2008

Features

Health: stainless steel natural clean, non-corrosive.

Colour

Silver

Bearing Structure

Spherical Surface Ball Bearing

The Number Of Row

Single

Weight

1.86kgs

Clearance

C2 C0 C3 C4 C5

Tolerance

ABEC1 ABEC3 ABEC5 ABEC7

Pillow Block Bearing Description:

1) The insert bearings are the deep groove ball bearings with wide inner rings
2) It inserts in housing work as a unit bearing
3) The bearing units are compact in design with perfect sealing devices
4) They can align with ease during operation and can be conveniently mounted or dismounted.



The outer spherical ball bearing is made of a sealed outer spherical ball bearing and a cast steel plate (steel plate steel plate bearing) on the outer ring. The outer ring has a spherical outer surface and can be self-aligning with the concave spherical surface of the bearing seat. Usually, the inner ring of the bearing is fixed on the shaft and rotates with the shaft. The structure of the bearing with compact structure is compact, convenient for loading and unloading, perfect and perfect for sealing, and is suitable for single metallurgy.
