SS304 Railings and clear laminated glass

Product Description

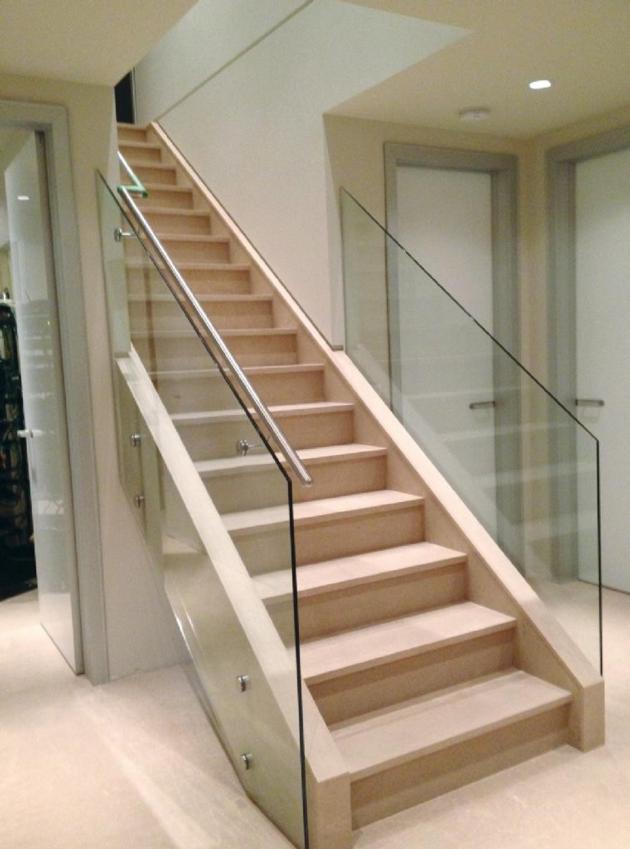

Railings are made of SS304 steel. It is weled by hand.It is safe and solid.

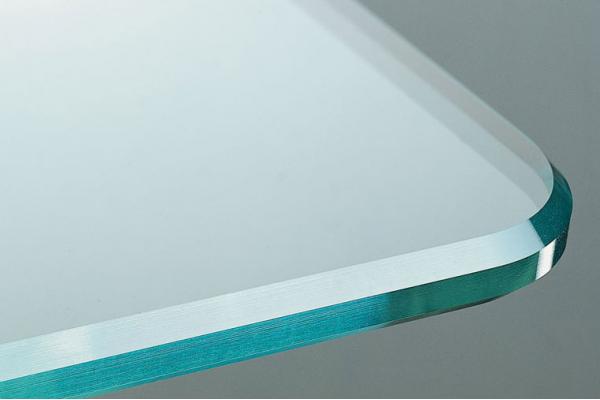

Laminated glass is a type of safety glass that holds together when shattered. In the event of breaking, it is held in place by an interlayer or film, typically of polyvinyl butyral (PVB) or ethylene-vinyl acetate (EVA) or SGP film, between its two or more layers of glass.

Glass thickness: 3mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
Pvb thickness: 0.38mm,0.76mm,1.14mm,1.52mm,1.90mm,2.28mm

FEATURES
1) Extremely high safety: The PVB interlayer withstands penetration from impact.
2) Energy-saving building materials: PVB interlayer impedes the transmission of solar heat and reduces cooling loads.
3) Create aesthetic sense to building: Laminated glass with a tinted interlayer will beautify the buildings and harmonize their appearances with surrounding views which meet the demand of architects.
4) Sound control: PVB interlayer is an effective absorber of sound.
5) Ultraviolet screening: The interlayer filters out ultraviolet rays and prevents the furniture and curtains fro fading effect.

Item Spcification

Glass Type Tempered glass / Toughened glass
Color Clear / Ultra-clear / Green / Grey / Bronze / Blue etc.
Maximum Size 2440*6500mm
Minimum Size 200*300mm
Thickness Tempered:4-19mm half tempered :4-12mm
Glass Type Insulated glass
Maximum Size 2500*5000mm
Minimum Size 200*300mm
Thickness 3-19mm
Spacer Thickness 6mm, 9mm, 12mm, 15mm, 16mm, 20mm
Regular Size 5+9A+5 5+9A+5 low-e 5+9A+5 coated
5+12A+5 5+12A+5 low-e 5+12A+5 coated
5+16A+5 5+16A+5 low-e 5+16A+5 coated
5+20A+5 5+20A+5 low-e 5+20A+5 coated
5+24A+5 5+24A+5 low-e 5+24A+5 coated
6+12A+6 6+16A+6 low-e 6+12A+6 coated
6+24A+6 6+24A+6 low-e 6+24A+6 coated
5+12A+5+12A+5 5+12A+5+12A+5 low-e
Glass Type Laminated glass
Maximum Size 2500*7800mm
Thickness 3-19mm
Total Thickness 6.38-80mm
PVB 0.38-2.28mm (0.38mm, 0.76mm, 1.14mm, 1.52mm )
Arch height< 50mm for curved laminated glass
Regular Size 5+0.38pvb+5 tempered or not 5+0.76pvb+5
6+0.38pvb+6 tempered or not 6+0.76pvb+6
6+1.14pvb+6 tempered or not 8+0.76pvb+8
5+9A+5+9A+5 5+9A+5+9A+5 low-e
5+12A+5+12A+5 5+12A+5+12A+5 low-e
5+0.76pvb+5+9A+5 5+0.76pvb+5+9A+5 low-e
5+0.76pvb+5+12A+5 5+0.76pvb+5+12A+5 low-e
5+1.14pvb+5+9A+5 5+1.14pvb+5+9A+5 low-e
4+9A+4+9A+4

Whether u request one container or a bulk shipment,we also attaches great importance to the details in every order,do a good job in each shipment.
