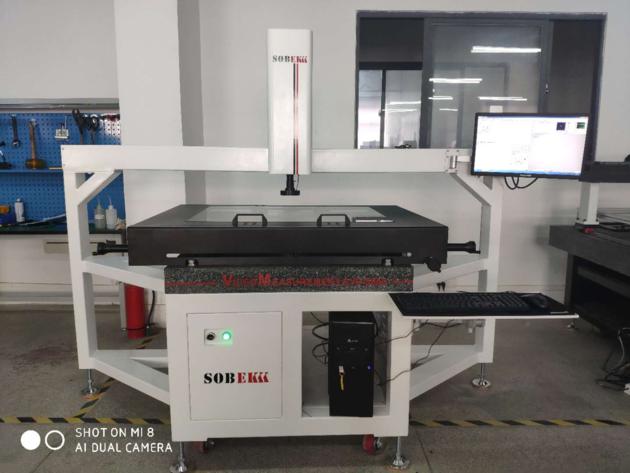

SOBEKK S800 Semi-Automatic Video Measuring Machine
| Price: | US$ 6800 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | S800 | Brand Name: | SOBEKK |
|---|
| Certification: | CE,CO,CQ |
|---|---|
| Specification: |

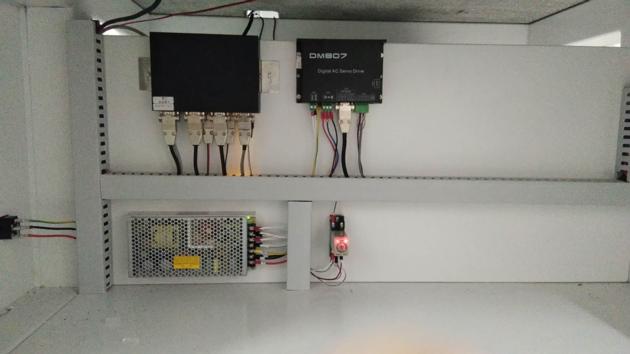

*Z-axis adopts servo motor driving, to realize motorized autofocus & improve the error and
the manual operability of machine. *Granite base with sturdy frame construction *Bridge type construction for large work-piece that requires small measuring range *Autofocus & semi-automatic measurement solve the problems of geometrical measurement *“HIWIN” P level linear guideway and precision cross roller guideway for increased accuracy & working life *High-definition detent zoom lens and high resolution CCD performs high-definition measurement. *Supports different file formats of data output such as Word, Excel, CAD etc. |
Packaging & Delivery
| Packaging: | Wooden Case |
|---|---|
| Delivery/Lead Time: | within 1 week after payment received |
| Production Capacity: | 1000 sets/year |
Product Description
Model S500 S600 S800
Measuring range(mm) 500*400*200 600*500*200 800*600*200
Machine size(mm) 1200*900*1500 1400*1100*1500 1800*1400*1500
Weight（kg） 300 350 400
Max. load（kg） 20 25 25
Accuracy of X-Y axis 3+L/150³´µm
Accuracy of Z axis 5+L/150³´µm
XYZ resolution 1.0μm
Repeatability（mm） 0.005
Linear encoder glass linear scale
Moving speed (mm/s) X-Y: manual Z: 100
Camera type SBK-HC536 1/2 inches 700 lines industrial color camera
Liner guide Z axis:
|
