SOBEKK Metallographic Tool Makers Microscope
| Price: | US$ 6800 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | MC300 | Brand Name: | SOBEKK |
|---|
| Certification: | CE |
|---|---|
| Specification: |
*Adopts the latest Z-axis automatic measuring system which is researched & developed by the SOBEKK *With the automatic focusing system, the repeatability can reach 1.5 UM by using the most advanced optical fiber high-defi nition camera,
*With the automatic focusing system of Z axis, it greatly reduces the complexity of manual operation. * Equipped with the latest MX infinite distance correction optical lens or NIKON's latest CFI60 infinite high resolution optical lens. * Working distance of the standard high ratio can reach 1mm. *Different circumvolve nosepieces can be selected according to your test requirements. *The five-hole circumvolve nosepiece can be used for the bright field observation. The bright & dark field or bright & dark field with DIC is available also. *The lamp source adopts the international advanced LED lighting to minimize the thermal expansion error that caused by the use of halogen bulb in the past. *By using the integrated MM controller interface support, the latest DP - E1 data processor or SC counter and SBK-MAX data processing software, *The MC-300/400 can provide you with excellent geometric data processing & storage capacity. *With Electronic handwheel gear device for coarse and fine tuning, it makes the instrument semi-automatic to improve the accuracy. *Applications: precision mould measurement, microelectronic observation and measurement, TFT liquid crystal inspection and measurement, 4''/5''/ 6''/8''/12''/ semiconductor wafer inspection and measurement. |
Packaging & Delivery
| Packaging: | Wooden Case |
|---|---|
| Delivery/Lead Time: | within 1 week after payment received |
| Production Capacity: | 300 sets/year |
Product Description
Model MC-300 MC-400
Table travel range(XYZ) 300X200X150mm 400X300X150mm
Dimension 900*700*980mm 1000*800*980mm
Resolution 0.0001mm
Accuracy （2+250/L) um
Repeatability accuracy 2um
X.Y move style Manual handle

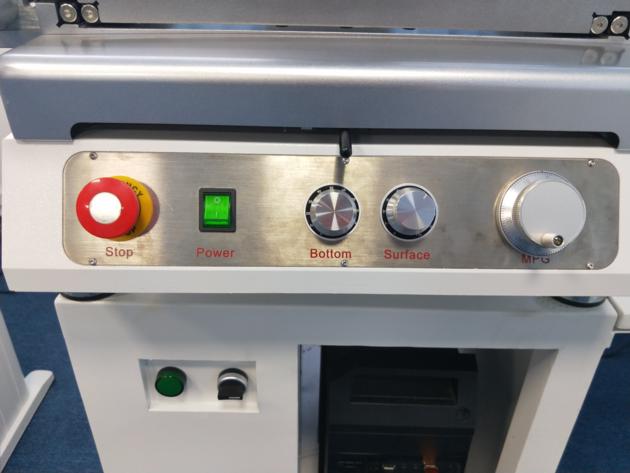

Z move style Automatic focus(servo motor)+ Manual pulse handwheel focus(min focal distance 2um)
CCD 1/2 inch 750 line color camera
Software SBK-MM
Work-table loading 35KG
Illuminating system Cold light source transmission lighting, 10W LED reflection lighting

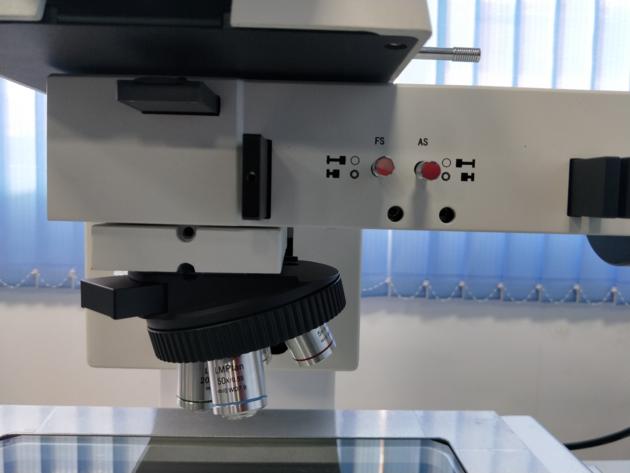

Nosepiece Five-hole objective rotary table (with DIC slot)

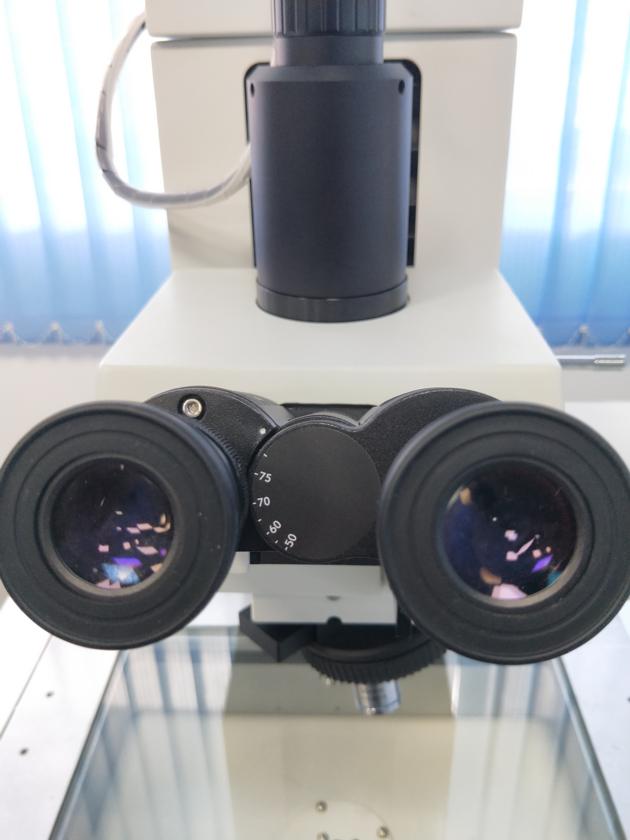

Optical eyepiece tube Trinocular tube
Eyepiece WF 10X/22
Adaptor lens 0.5X
Magnification 10 X -3000 X

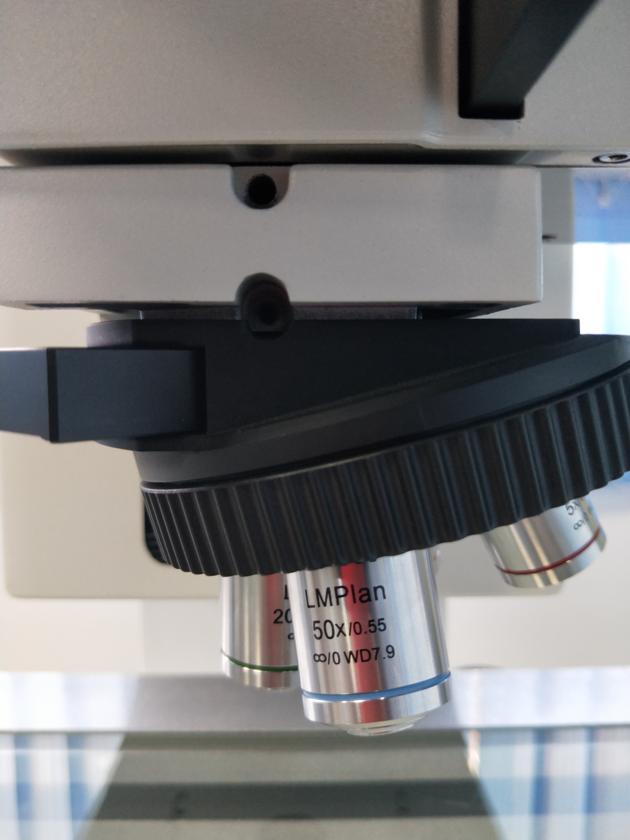

Bright filed lens LWDPLAN 5X: (N.A) 0.14, working distance :10.8mm
LWDPLAN 10X: (N.A) 0.25, working distance:10.0mm
LWDPLAN 20X: (N.A) 0.40, working distance: 4.0 mm
LWDPLAN 50X: (N.A)0.55, working distance: 7.5 mm
Optical system CSIC infinity correction optical system
Power 220V10% ，50Hz , 0.5KW
envirment requiry temperature range：222℃，humidity range：30%-70%
optional parts 100X lens, Dark-field, polarized, DIC(differential interference contrast)
|
