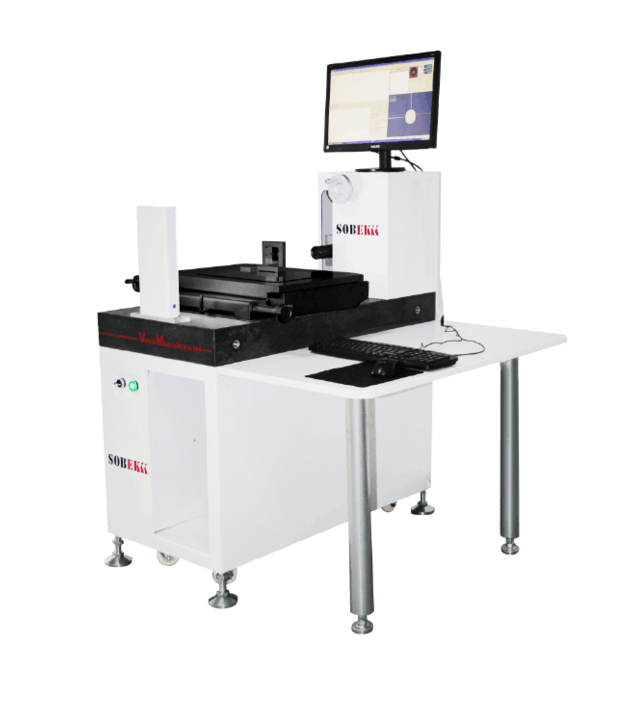

SOBEKK Hoizontal Video Measuring Machine
| Price: | US$ 1000 |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | W300 | Brand Name: | SOBEKK |
|---|
| Certification: | CE,CQ,CO |
|---|---|
| Specification: |
*“HIWIN” P level linear guideway and precision
cross roller guideway for increased accuracy & working life *Supplied with SBK-E multifunctional 2.5D measuring software, automatic edge detection and vision height measurement function. *Supplied with removable & dismountable console support table *High-definition detent step zoom lens and high-resolution CCD performs high-definition measurement. *Supports different file formats of data output such as Word, Excel,CAD etc. DXF import for quick inspection. |
Packaging & Delivery
| Packaging: | Wooden Case |
|---|---|
| Delivery/Lead Time: | within 1 week after payment received |
| Production Capacity: | 1000 sets/year |
Product Description
Model W200 W300
Measuring range(mm) 200*100*200 300*200*200
Machine size(mm) 950*845*1285 1050*845*1285
Weight（kg） 150 190
Max. load（kg） 20 20
Accuracy of X-Y axis 3+L/200³´µm
Accuracy of Z axis 5+L/200³´µm
XYZ resolution 1.0μm (option 0.5um, 0.1um scale)
Repeatability（mm） 0.003
Linear encoder glass linear scale
Camera type SBK-HC536 1/3 inches 600 lines industrial color camera
Liner guide Z axis: Taiwan“HIWIN” P grade linear guideway; XY use
|
