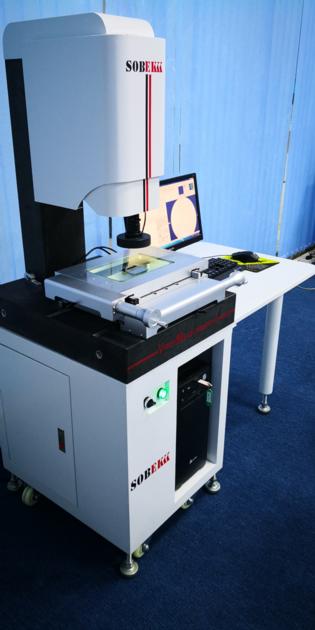

SOBEKK E300 Manual Video Measuring Machine
| Price: | US$ 2900 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | E300 | Brand Name: | SOBEKK |
|---|
| Certification: | CE,CO,QC |
|---|---|
| Specification: |
*“HIWIN” P level linear guideway and precision cross roller guideway for increased accuracy&working life

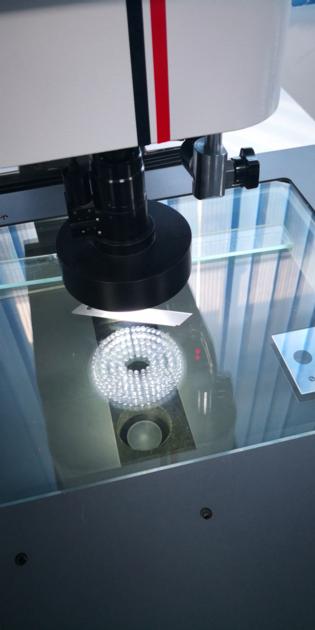

*Integrated granite base and column ensures machine stability. *Supplied with SBK-E multifunctional 2.5D measuring software, automatic edge detection and vision height measurement function. *Supplied with removable & dismountable console support table *High-definition detent step zoom lens and high-resolution CCD performs high-definition measurement. *Supports different file formats of data output such as Word, Excel, CAD etc. DXF import for quick inspection. |
Packaging & Delivery
| Packaging: | Wooden Case |
|---|---|
| Delivery/Lead Time: | within 1 week after payment received |
| Production Capacity: | 300 sets/year |
Product Description
Model E200 E300 E400
Measuring range(mm) 200*100*200 300*200*200 400*300*200
Machine size(mm) 750*1300*1500 750*1300*1500 900*1400*1500 1100*1125*1650
Weight（kg） 300 300 400 530
Max. load（kg） 20 25 25 30
Accuracy of X-Y axis 3+L/200¯³´µm
Accuracy of Z axis 5+L/200¯³´µm
XYZ resolution 1.0μm
Repeatability（mm） 0.003
Linear encoder glass linear scale
Camera type SBK-HC536 1/3 inches 600 lines industrial color camera
Liner guide Z axis: Taiwan “HIWIN” P grade linear guideway; XY use
|
