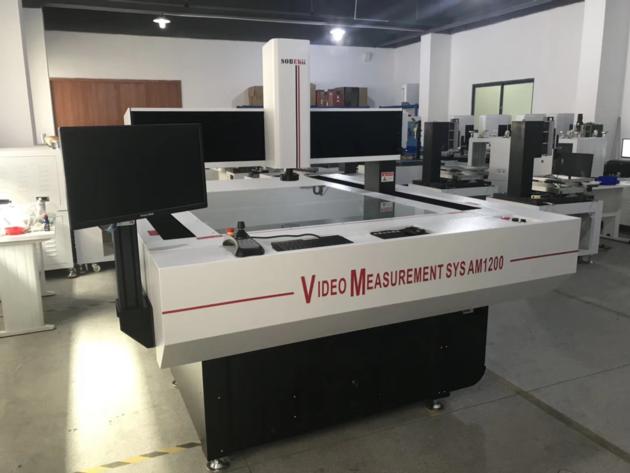

SOBEKK AM-CNC Automatic Video Measuring Machine
| Price: | US$ 6800 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | AM800 | Brand Name: | SOBEKK |
|---|
| Certification: | |
|---|---|
| Specification: |
*Sturdy bridge type construction with
long-travel automatic vision measurement. *Granite base keeps machine movement steadily. *Auto-focus for height measurement, touch probe can be fixed. *4-axis CNC controls, full-automatic measurement *Being equipped with navigational body tube performs a function of map navigation. (automatic zoom lens optional) *Programmable 4 rings 8 segments ring light for surface illumination, LED light for profile illumination *“RENISHAW” metal linear encoder with high resolution of 1.0μm *“THK” precision linear guideway & ground ball screw *“DAHENG” special frame grabber with high-definition ensures the image sharpness of measurement |
Packaging & Delivery
| Packaging: | Wooden Case |
|---|---|
| Delivery/Lead Time: | within 1 week after payment received |
| Production Capacity: | 300 sets/year |
Product Description
Model AM500CNC AM600CNC AM800CNC
Measuring range(mm) 500x400x200 600x500x200 800x600x200
Weight（kg） 1100 1450 1800
Max. load（kg） 30 30 30
Accuracy of X-Y axis 3+L/200
Accuracy of Z axis 5+L/200
XYZ resolution 0.1μm
Repeatability（mm） 0.003
Linear encoder “RENISHAW” metal linear
Moving speed (mm/s) X-Y: 500 Z: 100
Camera type 1.3M digital camera
Liner guide Taiwan“HIWIN” P grade linear guideway
Optics Auto GPS lens
Magnification optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
Software SBK-CNC full-automatic measuring software

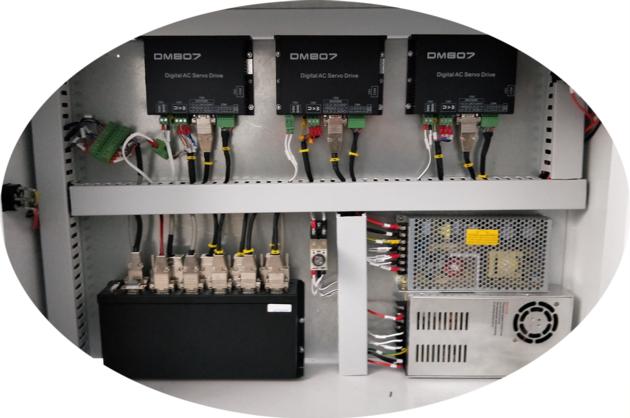

Control system SBK4000 fully closed-loop control
Profile illumination LED cold lighting,256 level programmable brightness adjustment
Surface illumination 4 rings 8 segments LED cold lighting with segmented independent control & 256 level programmable brightness adjustment
Motor “PANASONIC” synchronous AC servo motor

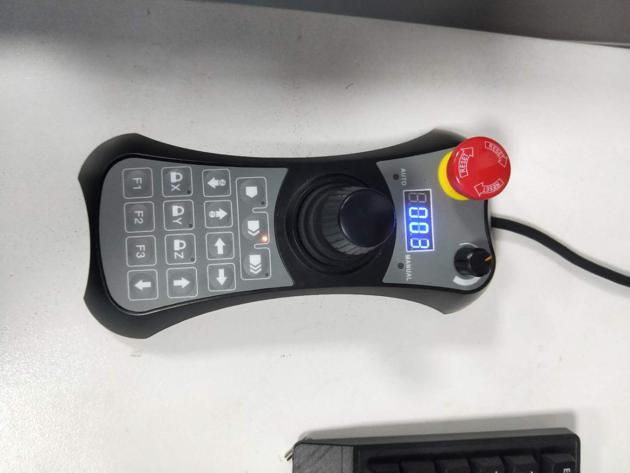

Operated mode software + joystick
Option device Renishaw MCP probe, Keyence lase measure probe
|
