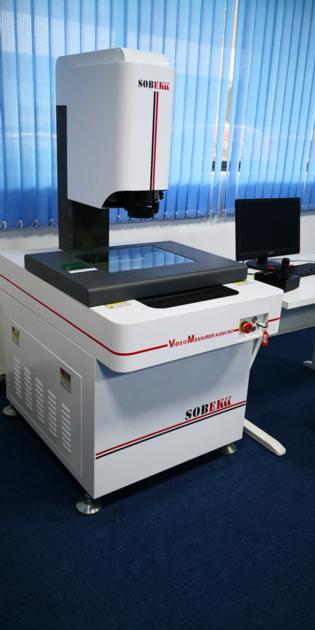

SOBEKK A300CNC Automatic Video Measuring Machine
| Price: | US$ 6800 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | A300-CNC | Brand Name: | SOBEKK |
|---|
| Certification: | CE,CQ,CO |
|---|---|
| Specification: |
* Measuring table is made of aerospace aluminum alloy with high rigidity. Suitable for high-speed movement, this material is very light and with low inertia to ensure the long-term stability of the machine.

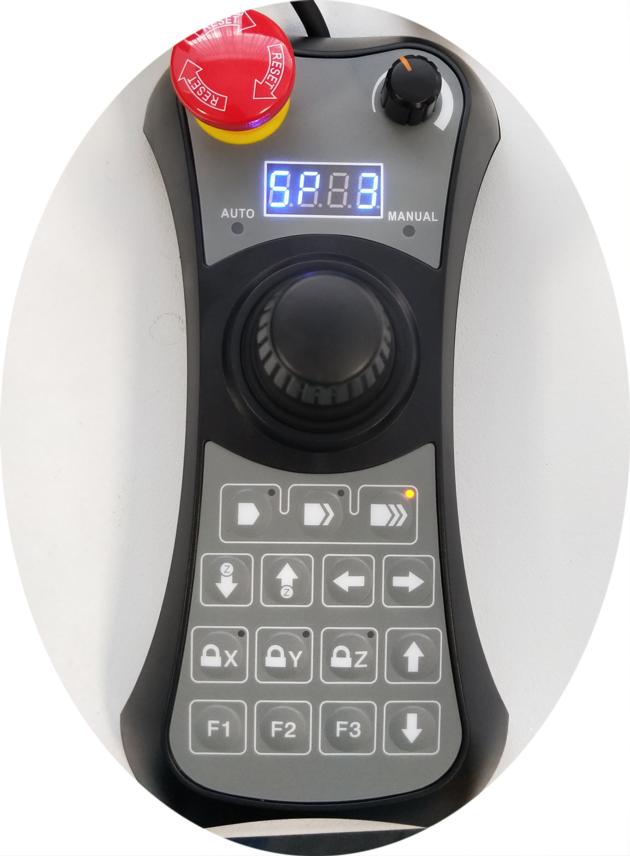

* Imported key components with rigorous, normative assembling & adjustment *3-axis CNC controls; full-automatic measurement * Being equipped with a navigational body tube realizes the function of map navigation * Adopting high-definition frame grabber ensures image sharpness of measurement *“HIWIN” SP level precision linear guideway and “TBI” ground ball screw * High-resolution exposed linear encoder with resolution of 1μm |
Packaging & Delivery
| Packaging: | Wooden Case |
|---|---|
| Delivery/Lead Time: | within 1 week after payment received |
| Production Capacity: | 1000 sets/year |
Product Description
Model A300CNC A400CNC
Measuring range(mm) 300*200*180 400*300*180
Machine size(mm) 1450*1050*1650 1600*1200*1650
Weight（kg） 450 500
Max. load（kg） 20 25
Accuracy of X-Y axis 3+L/200²³´µm
Accuracy of Z axis 5+L/200²³´µm
XYZ resolution 1.0μm
Repeatability（mm） 0.003
Linear encoder glass linear scale
Moving speed (mm/s) X-Y: 400 Z: 100
Camera type 1.3 Mega digital camera
Liner guide Taiwan
|
SUPPLIER PROFILE
|
|||
|---|---|---|---|
| Company: | SOBEKK Precision Instrument Co.,Ltd | ||
| City/State | GuiYang, Guizhou | Country: |
China
|
| Business Type: | Export - Manufacturer / Trading Company | Established: | 2010 |
| Member Since: | 2017 | Contact Person | Jack Chen |
