SIDE CHANNEL GUIDE RAIL Roll Forming Machine,Shutter Door Forming Machine/ Machinery
| Price: | US$ 42000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | 30% advance payement; 70% by delivery |
| Port of Export: | Izmir/ Turkey |
Product Details
| Model No.: | YCL GUIDE 65 | Brand Name: | YUCESAN |
|---|
| Certification: | CE, ISO 9001, ISO 14001, ISO 2001 |
|---|---|
| Specification: |
TECHNICAL SPECIFICATION

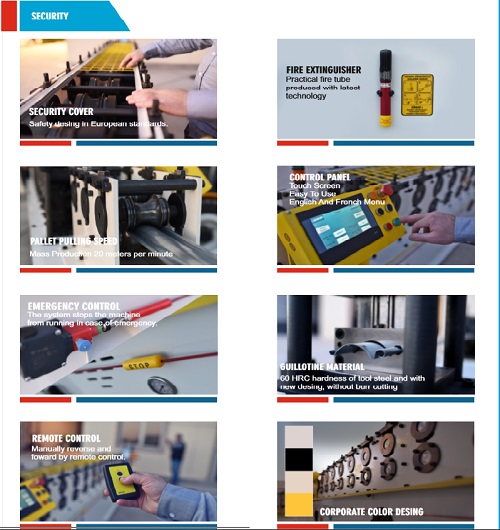

• Number of stations/ press rollers sets: 12, • The gear shafts, bearing the press rollers, are fixed with ball bearings on both sides, • Diameter of the gear shaft: 45mm, • Profiling press rollers are made out of 4140 Special crack-proof steel and given a hardness of 55-58 HRC, • Characteristics of the steel sheets to be used: Sheet Width: 213mm, • The main motor and the reduction gear are connected to the lower chassis to control the press rollers from the center, • Power Transmission: with the main motor and reduction gear, • Motor = SIEMENS, • Reduction Gear= Finex, • Ball Bearings: SKF-ORS, • Different steel profiles and shapes can be produced by replacing the press rollers manually, • Profile Setting Time: 5-10 minutes, • Lenght Tracking= ENCODER, • Voltage = 220/ 380 Volt, • Remote Controlled, Mini Fire Extinguisher, High Safety standards with a Wire Mesh Upper Lid and Emergency Stop Button, a Pressure Indicator and an Oil Level Gauge, Calibration Unit: The finished profiles can be cut, by the special hydraulic cutting unit, to the desired length after passing through the shape calibrator; this unit is designed to be easily removable. The main cutting device is designed for a single cut shape for a single blade shape and for easy assembly and disassembly. Automation: PLC-Drive Group, Delta Electronic component = Telemechanic, SİEMENS AUTOMATIC INDUSTRIAL ROLL FORMING LINE: • The produced steel profiles are used in the industrial building sector, • The produced steel profiles are of high quality and robust and meet all the performance criteria of the European standard, • A profiling line consists of a decoiler, a roller forming machine, a Calibration Block, a Cutting / Guillotine block and a conveyor. FIELDS OF USE • Steel profiles for industrial buildings • Appropriate profiles according to order and demand |
Packaging & Delivery
| Packaging: | STANDART |
|---|---|
| Delivery/Lead Time: | 60 working days after receiving advance payment |
| Production Capacity: | 30 Machine/ Month |
Product Description
STANDART CHARACTERISTICS
• Production Speed: 20 m/ Minutes (for the solid laths)
• Raw Material to be used: Galvanized Steel, Aluminium, Stainless Steel Black Steel

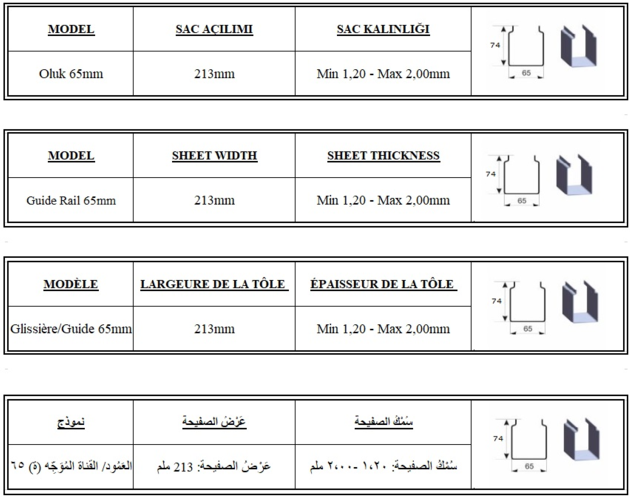

• Sheet Width:213mm,
• Sheet Thickness: Min. 1,20mm- Max. 2,00mm
DECOILER
• Outer diameter of the coil: 1.200 mm
• Width of the coil: Max. 300 mm
• Load capacity: 1,000 kg
• Options: Mechanical Handling: Hand Brake- Electric Handling: Electric Motor
|
