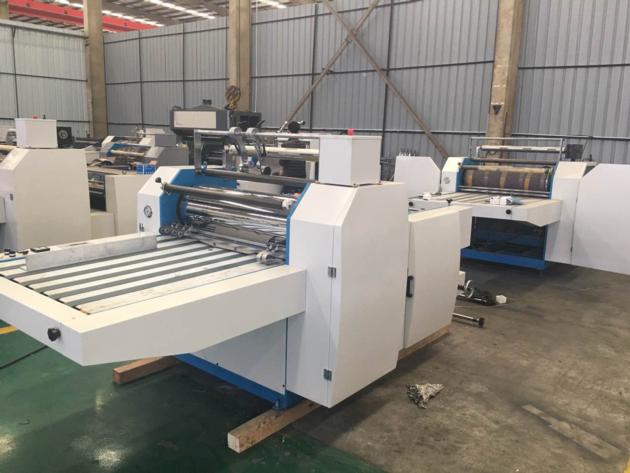

SF series Manual thermal laminating machine
| Price: | US$ 9000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, L/C |
| Port of Export: | Ningbo |
Product Details
| Model No.: | SF-720-920-1100 | Brand Name: | Aoli |
|---|
| Certification: | CE |
|---|---|
| Specification: |
website aotechina.com/en

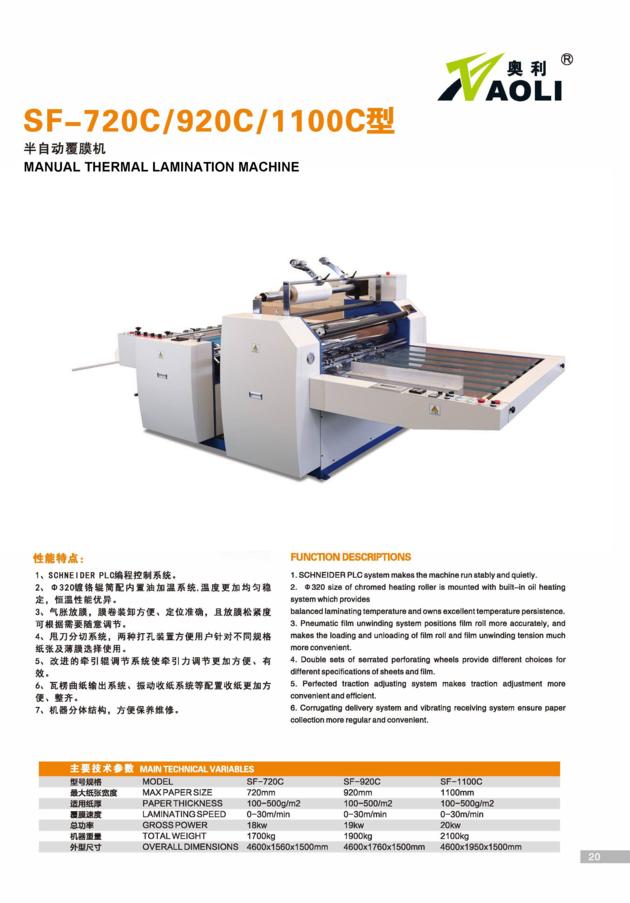

型号Model SF-720C SF-920C SF-1100C 最大纸张Max. Paper size 680x900mm 880x1100mm 1050x1100mm 最大速度Max. speed 40m/min 40m/min 40m/min 电压Voltage 380V 380V 380V 纸张厚度Paper thickness 100-500g 100-500g 100-500g 电机功率Motor Power 3.7Kw 3.7Kw 3.7Kw 重量Weight 1700kg 1900kg 2100kg 尺寸Overall dimensions 4600*1560*1500mm 4600*1760*1500mm 4600*1950*1500mm |
Packaging & Delivery

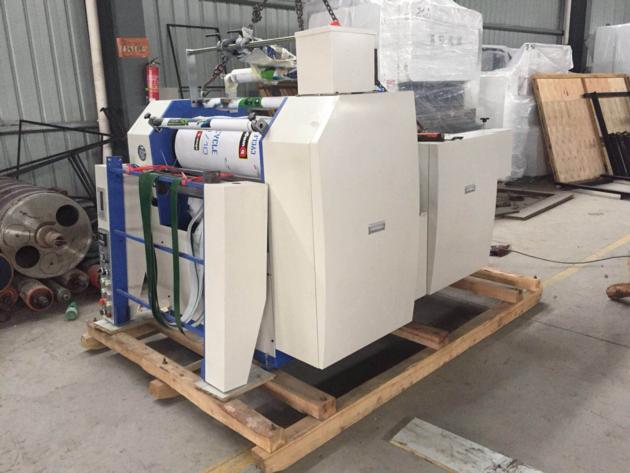

| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 30 Days |
| Production Capacity: | lamination with plastic film and paper sheet |
Product Description
1.320mm镀铬辊筒内置油加温系统，温度更加均匀稳定，恒温性能优异

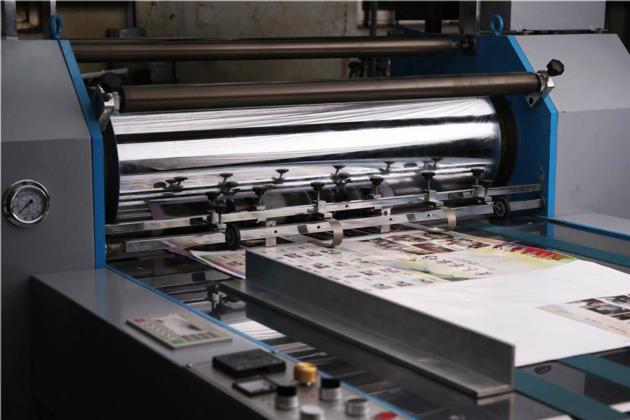

The diameter 320 chrome roller is equipped with a built-in oil heating system, the temperature is more even and stable
2.气涨轴放膜，膜卷装卸方便，定位准确，且放膜松紧度可根据需要随意调节
Inflatable film release, convenient for film roll to load and unload, accurate positioning, and film release tightness can be adjusted as needed
3.甩刀分切系统，两种打孔装置方便用户针对不同规格的纸张及薄膜使用
Scythe slitting system, two kinds of punching devices are convenient for users to choose for different specifications of paper and film
4.改进的牵引辊调节系统使牵引力调节更加方便有效
Improved traction roller adjustment system makes traction adjustment more convenient and effective
5.瓦楞曲纸输出系统，振动收纸系统等配置收纸更加方便整齐
Corrugated paper output system, vibration delivery system and other configurations make the delivery of paper more convenient and neat
6.机器分体结构，方便保养维护
Machine split structure for easy maintenance
|
