SE2 Mechanical Seal for Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization

Basic Features
Structure: Double-End
Pressure: High Pressure Mechanical Seals
Speed: High-Speed Mechanical Seal
Temperature: High Temperature Mechanical Seal
Performance: Corrosion
Standard: Standard
Model NO.: SE2
Balance: Balanced
Specification: Inner Diameter: 30 mm to 280 mm
Product Detailed Description

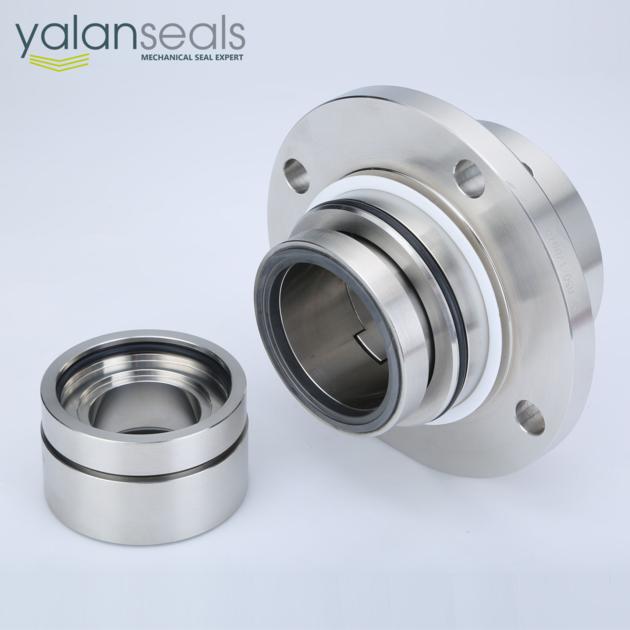

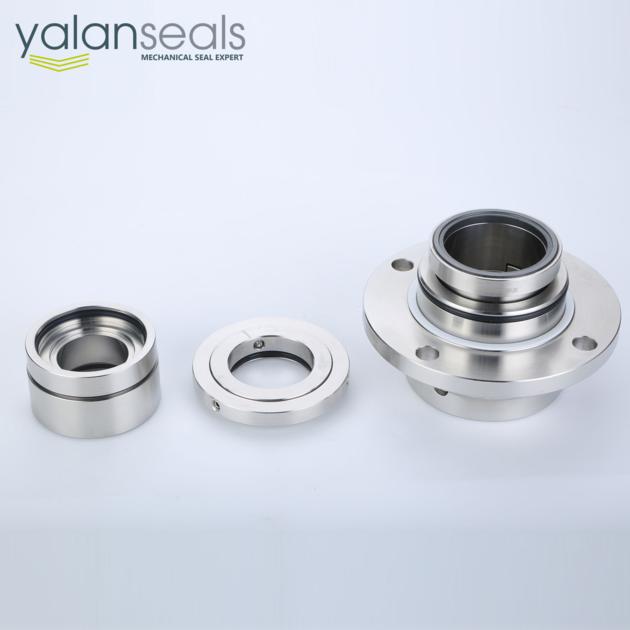

SE2 Mechanical Seal for Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps

Structural Features: double end, multiple springs, balanced, and independent direction of rotation. The component is cartridge seal with easy installation. The springs are not touching the mediums so that there will be no jam caused by the high viscosity and crystallization of active content. This makes sure the flexibility of the compensation ring and as a result, it lasts the lifetime of the whole component.

Industrial Standards: Non-standard.

Scopes of Application: mainly used in paper-making equipment, alumina plants, flue gas desulphurization (AKA FGD), deashing system (for power plants) and slurry pumps.

Operation Parameters:
Pressure: 0 ~ 2.4 MPa
Temperature: - 20 ~ 180 ºC
Linear Speed: 20 m/s or less
Pressure of Cooling Water: 0.1 to 0.3 MPa
Solid Capacity: 25% or less
Mediums: acid liquor, alkali liquor and other fluids with solid powder and high viscosity.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
