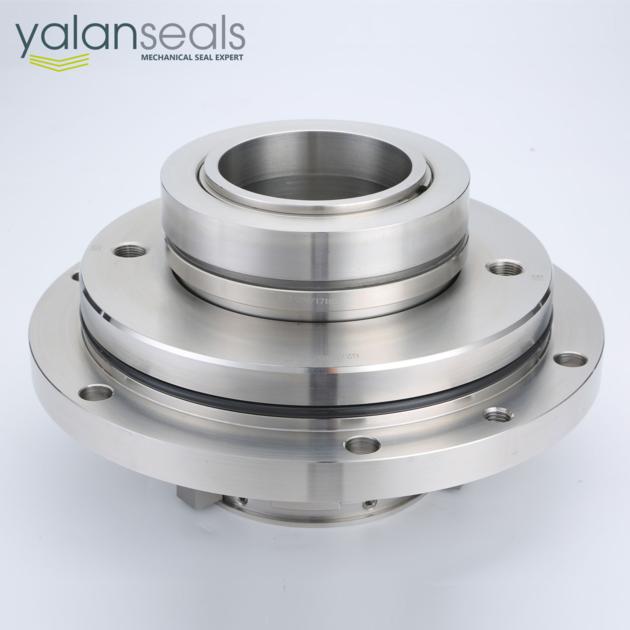

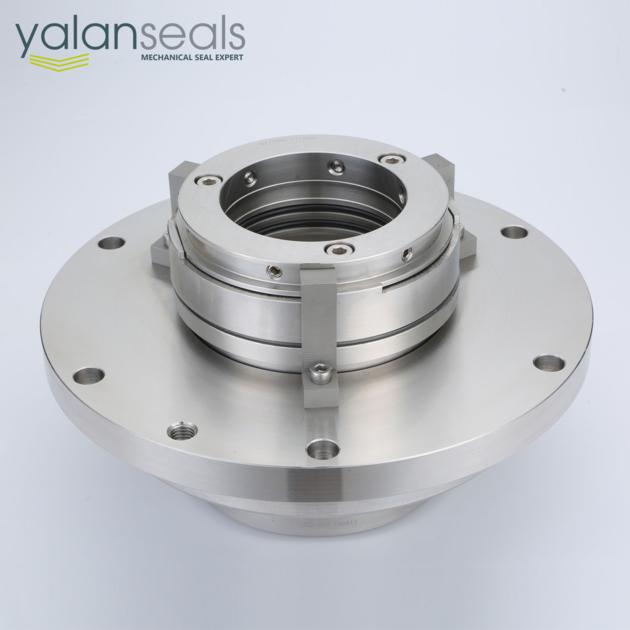

SAF Mechanical Seal for Paper-making Equipment and Pressure Screens (for paper pulp agitation)

Basic Features
Structure: Double-End
Pressure: High Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: Poor Temperature Mechanical Seal
Performance: Corrosion
Standard: Standard
Model NO.: SAF
Balance: Balanced
Specification: Inner Diameter: 50 mm to 280 mm
Product Detailed Description
SAF Mechanical Seal for Paper-making Equipment and Pressure Screens (for paper pulp agitation)

Structural Features: double-end, multiple springs, with spring protector, balanced, independent direction of rotation, spring standing mechanical seal. The component is cartridge seal with easy installation. The springs are not touching the subjects so that there will be no jam caused by the high viscosity and crystallization active content. This makes sure the flexibility of the compensation ring and as a result, it lasts the lifetime of the whole component.

Industrial Standards: Not available right now.

Scopes of Application: mainly used in paper-making equipment and pressure screens (for paper pulp agitation).

Operation Parameters:
Pressure: 0 ~ 2.4 MPa or less
Temperature: - 20 ~ 100 ºC
Linear Speed: 15 m/s or less
Pressure of Cooling Water: 1.25 times higher than the subject's operating pressure
Solid Capacity: 15% or less
Mediums: paper pulp and other fluids with fine powder.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
