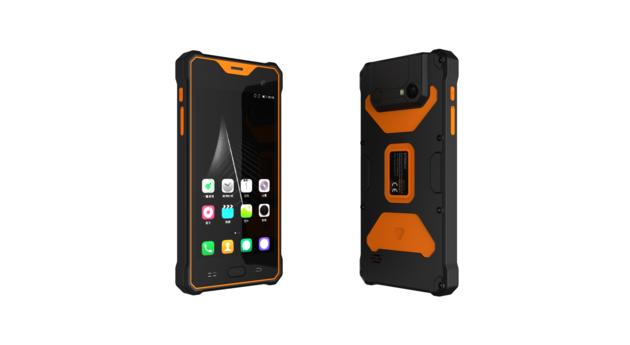

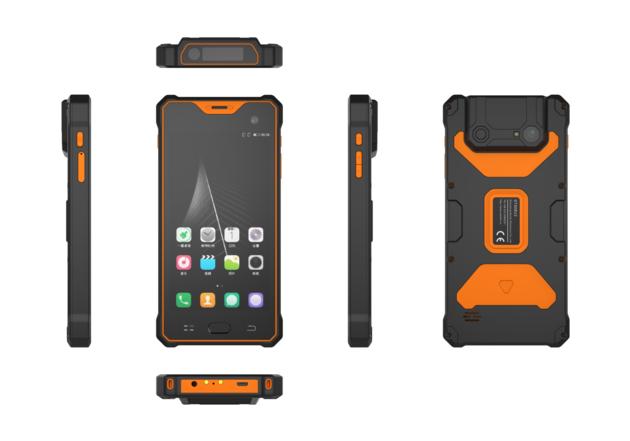

S917V2 5.5" Android 8.1 Industrial PDA with UHF RFID
| Price: | US$ 1 / Unit |
|---|---|
| Minimum Order: | 1 unit |
| Payment Terms: | T/T, Paypal, Western Union and Moneygram |
| Port of Export: | Qingdao |
Product Details
| Model No.: | S917V2 | Brand Name: | SENTER |
|---|
| Certification: | CE/ROHS/3C/FCC/IP67 |
|---|---|
| Specification: |
Type Details Standard Configuration Product Form Type Rugged Phone Device Color Black & Orange LCD Screen Size 5.5 inch LCD Resolution 1920*1080 touch screen Camera Front 5MP with automatic focus and light function Rear 13MP with automatic focus and lighting function Speaker Built-in Support Mic Built-in Support Indicator Support A breathing light, a charging indicator. USB OTG Support U disk, mouse, keyboard, RS232, 485, support external YUV camera support network card 9500 chip, etc. Key Buttons description Button: One scan button on the side (the bar code and UHF can be used together), one power button, volume plus or minus button. The 3 physical function keys (Back Menu HOME) Battery Capacity 3.8V 5000mAh,Support fast charging (QC3.0) Endurance Standby current less than 10mA |
Packaging & Delivery
| Packaging: | Box |
|---|---|
| Delivery/Lead Time: | After paymetn 3 work days |
| Production Capacity: | 3000 units in one month |
Product Description
System Hardware Configuration CPU CPU 1.8GHZ,8 core Qualcomm
RAM DDR3L 4GB(optional 2GB, 3GB )
ROM Emmc 64GB(optional 16G, 32GB)
microSD Support expansion maximum support 128G
Sensor Built-in Gravity sensor, compass, accelerometer and gyroscope, light and distance (two in one)
Interface Configuration
TF slot Extensive External Memory IF choose two sim card,can not choose TF card,only choose two from three
SIM card slot 3G/4G communication SIM card slot ,Nano
USB interface Extensive External Memory and data transmission USB 2.0
Earphone Jack Audio Output ∮3.5mm standard earphone jack x1
Software Configuration
Operation System OS version Android 8.1 os
Network Connections
WIFI WIFI Module Support IEEE 802.11a/b/g/n/ac
Bluetooth Built-in BT4.0 (BLE) class1 transmission distance：10m
3G Built-in "CDMA 1X/EVDO BC0
GSM 850/900/1800/1900
WCDMA B1/B2/B5/B8
TD-SCDMA B34/B39"
4G Built-in "FDD-LTE B1/B3/B5/B7
TD-LTE B38/B39/B40/B41
"
GPS Built-in GPS+BDS+A+GPS+GLONASS
Standard Accessories
handle belt handle handle belt
Power Adaptor Standard AC100V ~ 240V、50Hz/60Hz output DC 12V/4A
Data Collection
2D Barcode Scanner Optional 2D， Honeywell N6603,Newland NLS-EM3296, N3680
Infared Meter Optional Working frequency: 37.9K
RFID NFC(HF RFID) Working frequency: 13.56KHz, support NFC ISO14443A，B and ISO15693 Reading distance 0-3cm
UHF RFID Working frequency: 900 MHz or 856-858 MHz Reading distance: no more than 6m
LF RFID Working frequency: 125k/134.2KHz Reading distance: 0-10 cm
Pistol Grip Optional With internal batteries and scan button
Docking Station Optional Charging Docking Station
Product Certificate Product Certificate
Certificate IP67 "dustproof test：IP-6X IPx7: Short-term water immersion test
Test equipment and test conditions: water immersion tank. It should be sized so that the sample is placed in the immersion tank and the distance from the bottom of the sample to the surface is at least 1 m. The distance from the top of the specimen to the water surface is at least 0.15 m.
Test time: 30 min"
CE Support
FCC Support
810G Support
Enviromental Characteristic
Drop hight "120cm composite wood floors, in operation status
"
Working Temp. -10®C to + 50®C
Storage Temp. -40®C to + 60®C
Humidity 5%-95%
|
