S&A water chiller for 500w CNC Fiber laser cutter

S&A water chiller for 500w CNC Fiber laser cutter

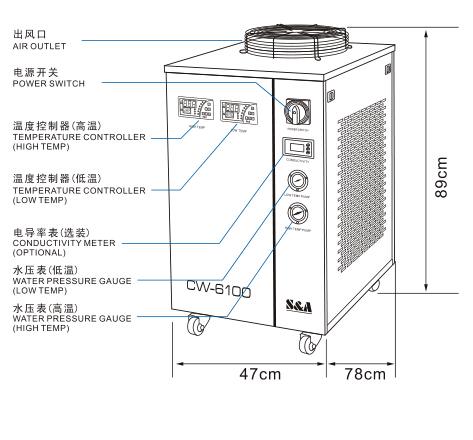

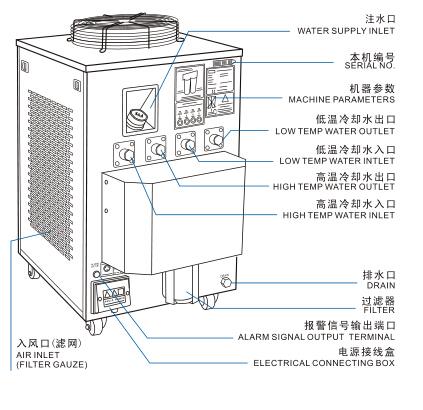

S&A CW-6100AT dual temperature and dual pump series is high-precision compression refrigeration water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system.
S&A CW-6100AT is able to cool the fiber laser and optic lense at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.
S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
S&A water chiller CW-6100AT features
1. 4200W cooling capacity; optional environmental refrigerant;
2. ¯0.5℃ precisely temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature and dual pump to satisfy different needs of fiber laser device and the lens;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE approval; RoHS\REACH approval;
8. Long working life and easy operation;
9. Optional heater and water filter.
SPECIFICATIONS
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch
to appropriate operating temperature.
CW-6100AT：applied to cool a single 500W fiber laser;
Equipped with heat booster and water filter.
Model CW-6100ATH CW-6100BTH
Voltage 220V 220V
Frequency 50Hz 60Hz
Current 1~6.5 A
Compressor power 1.38KW 1.29KW
1.84HP 1.72HP
High + low temp system refrigeration capacity 930Btu/h + 13640Btu/h 930Btu/h + 12958Btu/h
0.3KW + 4KW 0.3KW + 3.8KW
180Kcal/h + 3440Kcal/h 180Kcal/h + 3268Kcal/h
Refrigerant R-22 / R-410a
Refrigerant charge 950g 900g
Precision ¯0.5℃
Reducer Capillary
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
High + low temp pump power 0.1KW + 0.55KW
High + low temp tank capacity 4L + 12L
High + low temp pump lift 25M + 28M
High + low temp inlet and outlet Rp1/2" + Rp1/2"
High + low temp pump flow 16L/min + 70L/min
N.W 65Kgs
G.W 75Kgs
Dimension 67 x 47 x 89 cm (L x W x H)
Package dimension 74 x 60 x 109 cm (L x W x H)
