S&A dual temperature and dual control chiller for Rofin co2 slab laser

S&A dual temperature and dual control chiller for Rofin co2 slab laser

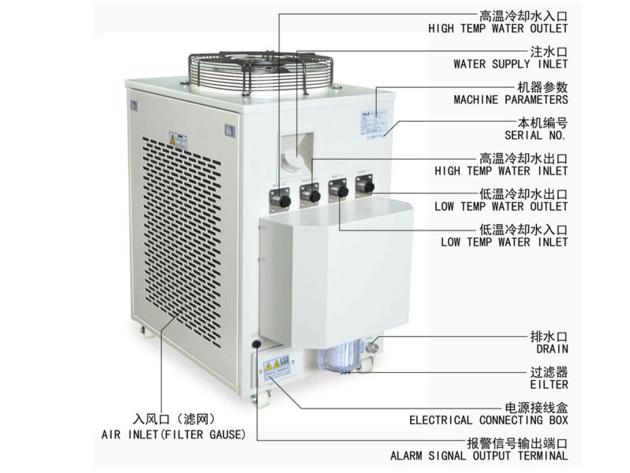

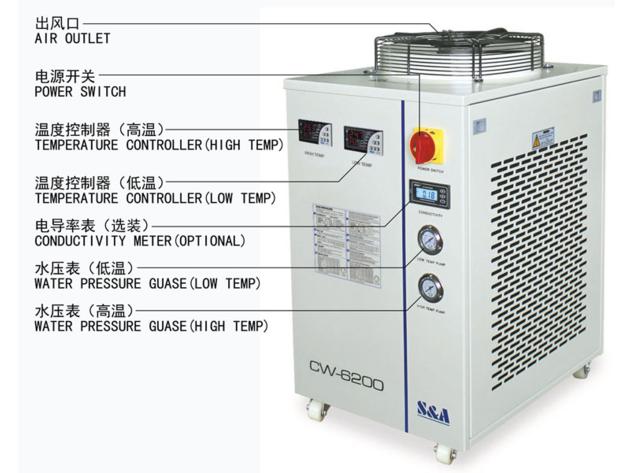

S&A CW-6200AT dual control and dual pump series is high-precision compression refrigeration water chiller,with intelligent temperature control,completed configuration, perfect protection and alarm system, it is applied to cool 1KW-1.2KW Rofin co2 slab laser.
CW-6200AT dual temperature and dual control chiller’s features:
1. 5100W cooling capacity; optional environmental refrigerant;
2. ¯0.5℃ precisely temperature control;The temperature range of S&A chiller is 5℃ to 35℃， the controllable lowest water temperature depends on the heat load of cooled machine and cooling capacity of chiller. However,S&A suggest the best running temp is 20℃ to 30℃ for the chiller.
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature and dual pump to satisfy different needs of fiber laser device and the lens;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE approval; RoHS approval; REACH approval;
8. Long working life and easy operation;
9. Optional heater and water filter.
CW-6200AT video: */Article/SACW6200ATdualtemper_1.html
CW-6200ATchiller’s specfications:
Voltage:1P 220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a
Pump power: 0.1kw(high temp)+0.55KW(low temp); Tank capacity:4L(high temp)+12L(low temp)
Max. lift: 25M(high temp)+36M(low temp); Max. flow: 16L/min(high temp)+70L/min(low temp)
N.W: 92Kgs; G.W: 102Kgs;
Dimension : 78x47x89 cm (L X W X H); Packing dimension: 87x60x109 cm (L X W X H)
About S&A Brand

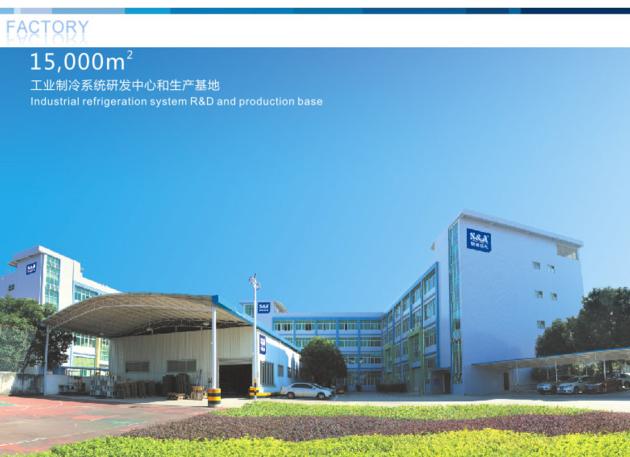

S&A(TEYU) was founded in 2002. After 15 years of development, the headquarter covers an area of 15,000 square meters, and has about 220 employees. With annual production capacity for cooling system up to 60,000 units, the product has been sold to more than 50 countries and regions. With its excellent quality and leading R&D strength, TEYU has become a leading enterprise in domestic industrial refrigeration industry. The shipment of TEYU laser cooling system is World No.1 in 2016. The warranty is 2 years.
