S&A dual temp. chiller CW-6250 is used for laser IPG 1500w

S&A dual temp. chiller CW-6250 is used for laser IPG 1500w
A customer of laser cutter manufacturer is interested in S&A dual temp. chiller CW-6300 (8.5KW cooling capacity) to cool laser IPG 1500w, however, S&A dual temp.chiller CW-6250(6.5KW cooling capacity) is enough and save cost.
S&A CW-6250 dual temperature and dual pump series is high-precision compression refrigeration water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system. It is able to cool the fiber laser and optic lense at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.
S&A water chiller CW-6250 features:
1. 6500W cooling capacity; optional environmental refrigerant;
2. ¯1℃ precisely temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature and dual pump to satisfy different needs of fiber laser device and the lens;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE approval; RoHS\REACH approval;
8. Support ModBus-485 communication
9. Optional heater and water filter.
CW-6250 chiller’s parameter:
Voltage:3P 380V; Frequency: 50Hz; Refrigerant: R-22 / R-410a
Pump power: 0.1KW(high temp.)+0.55KW(low temp.); Tank capacity:4L(high temp.)+20L(low temp.)
Max. lift:25M(high temp.)+45M(low temp.); Max. flow: 16L/min(high temp.)+ 70L/min(low temp.)
N.W: 130Kgs; G.W: 165Kgs;

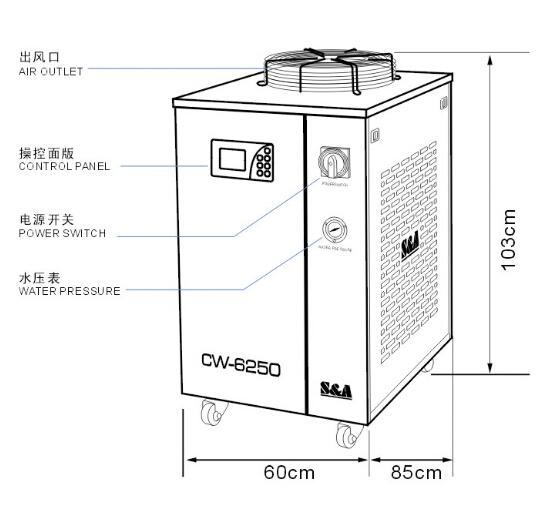

Dimension : 85 X 60 X 103 cm (L X W X H); Packing dimension: 95 X 70 X 125 cm(L X W X H)
About S&A Brand
S&A(TEYU) was founded in 2002. After 15 years of development, the headquarter covers an area of 15,000 square meters, and has about 220 employees. With annual production capacity for cooling system up to 60,000 units, the product has been sold to more than 50 countries and regions. With its excellent quality and leading R&D strength, TEYU has become a leading enterprise in domestic industrial refrigeration industry.
