S&A air/water chiller for cooling IPG laser with 2 years warranty

S&A air/water chiller for cooling IPG laser with 2 years warranty

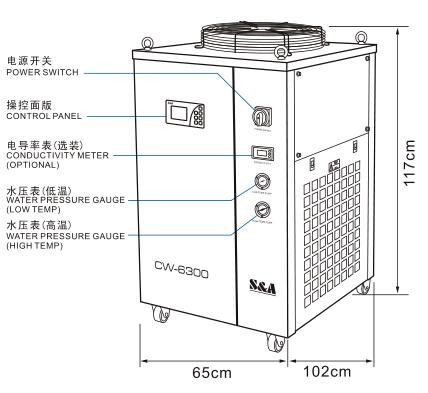

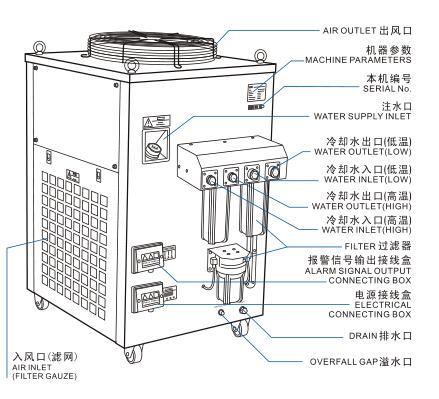

S&A model CW-6300 is dual temperature and dual control type industrial water chiller, it is applied to cool 800W fiber laser. It is able to cool the fiber laser and optic lense at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.
Features
1. 8500W cooling capacity; optional environmental refrigerant;
2. ¯1℃ precisely temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature and dual pump to satisfy different needs of fiber laser device and the lens;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE approval; RoHS approval;
8. Long working life and easy operation;
9. Optional heater and water filter.
Model CW-6300AT CW-6300ET
Voltage AC 1P 220V AC 3P 380V
Frequency 50Hz 50Hz
Current 3~20A 2~7A
Compressor
power 2.8KW 2.6KW
3.73HP 3.46HP
Refrigeration
capacity 1706Btu/h+25597Btu/h
0.5KW+7.5KW
430Kcal/h+6450Kcal/h
Refrigerant R-22 / R-410a
Refrigerant
charge 2150g 2450g
Stability ¯1℃
Reducer Capillary
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
pump power 0.1 KW+1.1 KW
tank capacity 6 L+34 L
inlet and outlet Rp1"
pump lift 25 M+53M
pump flow 16 L/min+116 L/min
N.W 155Kgs
G.W 175Kgs
Dimension 95x65x117 cm (L x W x H)
Package dimension 107x85x140 cm (L x W x H)
