Rubber Backed Alumina Ceramic Liner
| Price: | US$ 15 / Piece |
|---|---|
| Minimum Order: | 100kg |
| Payment Terms: | T/T |
| Port of Export: | Qingdao China |
Product Details
| Model No.: | 1pc | Brand Name: | Zibo Qimingxing (Firstar) |
|---|
| Certification: | ISO etc. |
|---|---|
| Specification: |
Component
natural rubber, nitrile-butadiene rubber ,Flame Retardant ,others Density ~1.4g/cm3 Tensile strength at break ≥15Mpa Elongation at break ≥250% Shore Hardness 45-65 Adhesive between tile and rubber 1.2-3.0 Mpa Adhesive between rubber and equipment ≥3.5 Mpa Thermal conductivity.(normal temperature) 2w/m·k Aging period ≥15 Years Working temperature -50ºC - 200ºC Material Q235A Density 7.85g/cm3 Thickness 5-6mm Appearance Brown glutinous liquid Solid content 20¯3% Viscosity ≥2.5 Mpa Peel strength 48h N/2.5cm≥120 Compressive strength ≥850 Mpa Working temperature -20ºC - 100ºC |
Packaging & Delivery
| Packaging: | With pallet |
|---|---|
| Delivery/Lead Time: | 10-30 days |
| Production Capacity: | 1700000 piecs per year |
Product Description
Product description:
Also named wear cermaic parts, wear rubber ceramic plate, wear resistant ceramic pads.

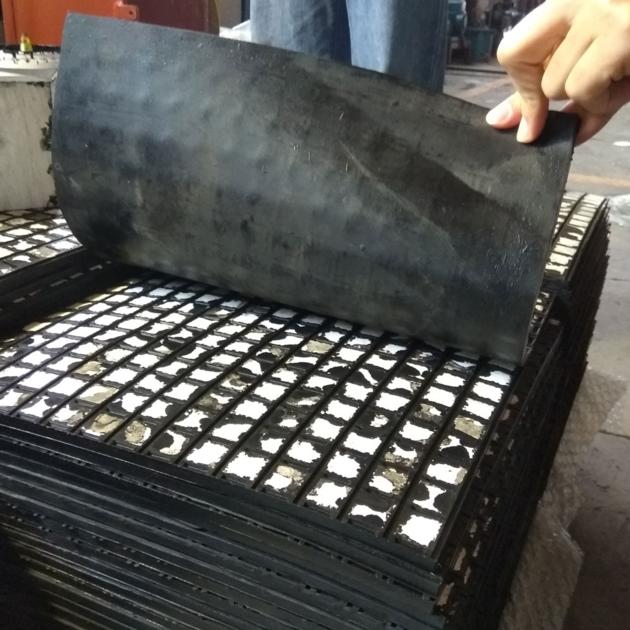

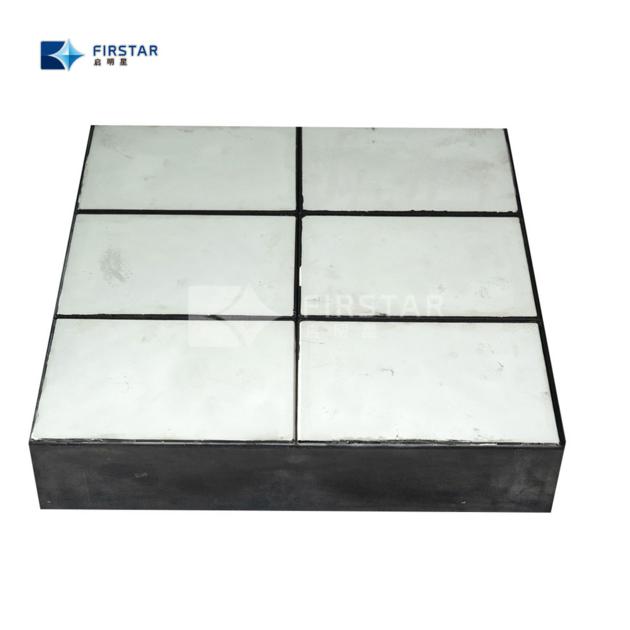

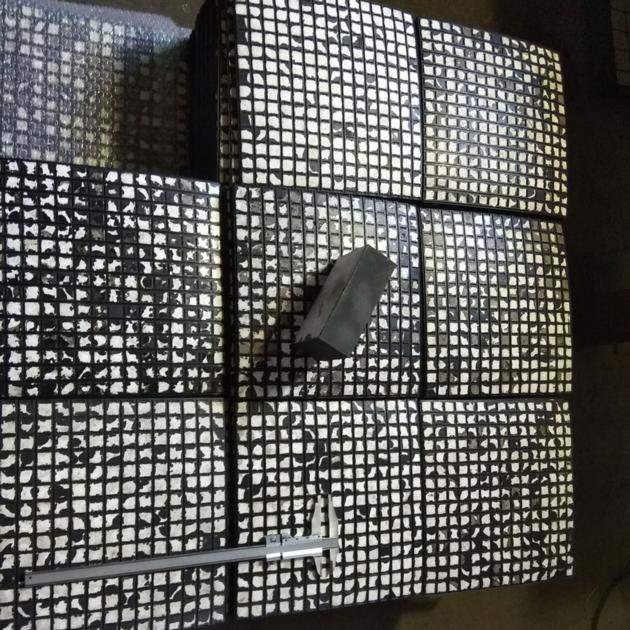

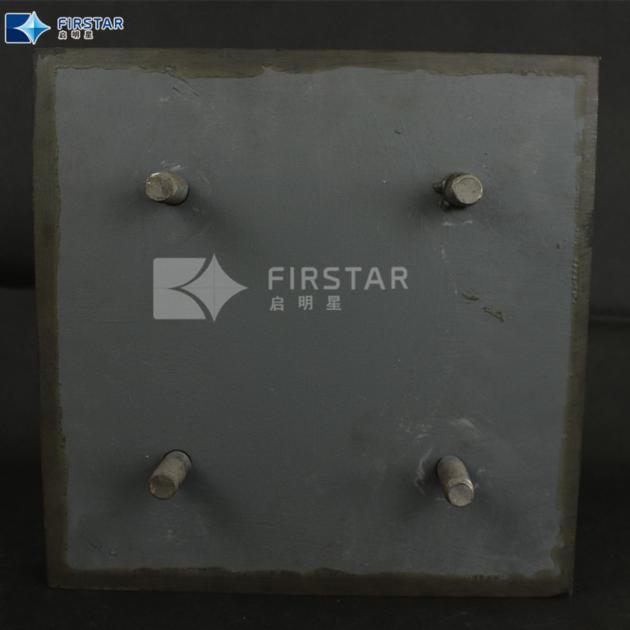

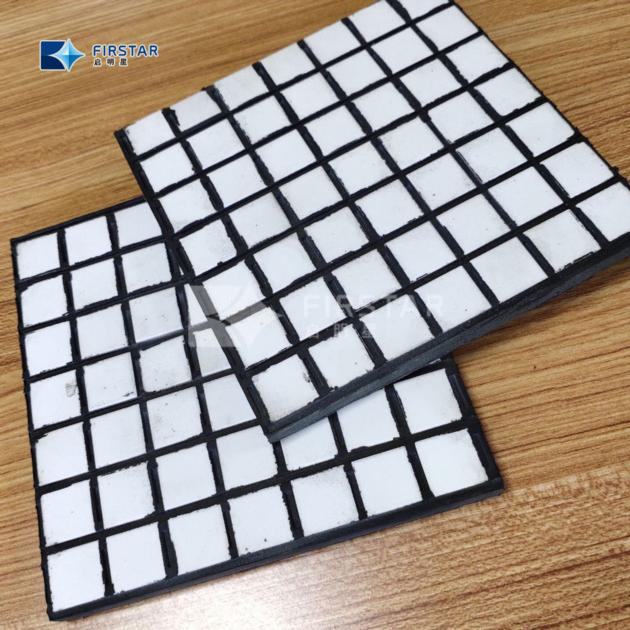

Ceramic rubber composite pads&plate is use of rubber vulcanization process, to embed the wear-resistant ceramic vulcanized into rubber, stick it on the inner all of equipment with the adhesice paste.As customers' requirment, it also can be vulcanized together with steel plate, with bolts or not.
Features:
It combines wear-resistance of ceramic of ceramic and impact-resistance of rubber, apply to conveying systems equipment work under normal temperture,and can bear some impact.
Applications:
Impact-resistant and wear-resistant ceramic rubber composite lining board (three-in-one lining board) is mainly used in the thermal power industry (falling coal pipe lining board), the steel industry (blast furnace hopper, cylindrical mixer), the cement building materials industry (clinker clinker) Chute), smelting industry (hopper), machinery industry (hopper), coal industry (transportation station chute), mining industry (initial break, medium and fine breakage, transfer chute hopper), chemical industry (chute), organic silicon industry (level two) Heavy-duty cyclone dust collector), coal chemical industry (falling coal pipe), port terminal (ship unloader hopper), commercial industry (mixer liner), automobile manufacturing and other heavy-wearing industries.
|
