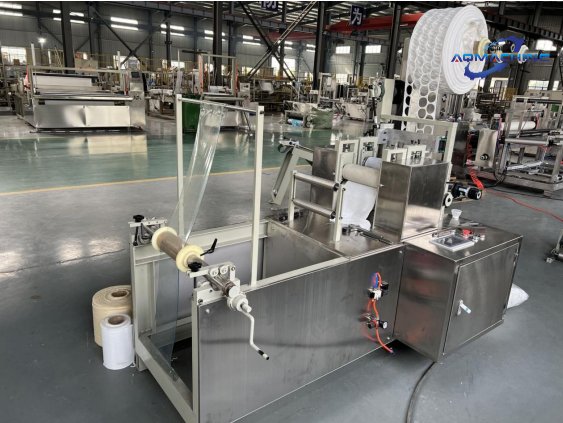

Round Cotton Pads Making Machine

Automatic cotton pads making machine descriptions:

1. Production process:

a. Raw material transferring b. Roll cutting c. Pushing pads

d. Tube outputting e. Waste material collection f. Finished

2. Use mechanical material-pressing to transfer; Tube outputting is stable and neat.

3. Equipped with the imported roll cutting mould which is space-saving by optimizing the arrangement mode. The distance gap between the moulds can be adjusted to save the raw material consumption.

4. The effective breadth 250mm according to the pad diameter 58mm, the biggest diameter of jumbo roll 1000mm. The width of raw material can be decided according to the moulds.

5. Roll cutting mould is made of imported high-quality special material which is durable, accurate cutting and no burs.

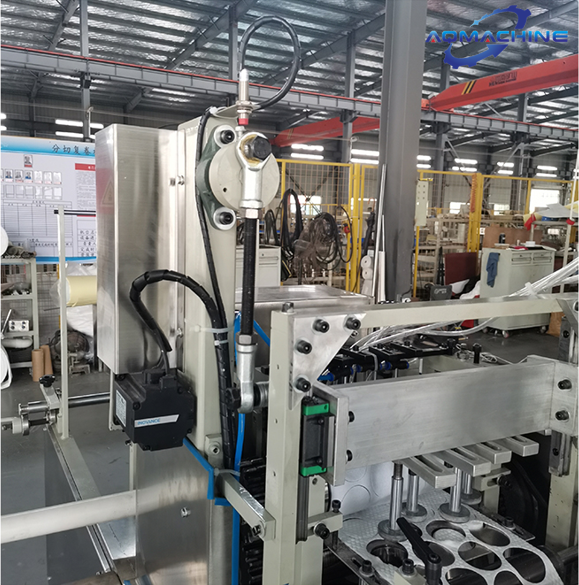

6. Equipped with 2 adjustable tension control devices and the waste collecting device, main bearings used is good quality of Chinese brand.

7. All parts which are in contact with fabrics are manufactured in stainless steel.

8. Use imported frequency converter to control the machine; and it has a reasonable layout of the electric wires, it is easy for workers to run the machine.

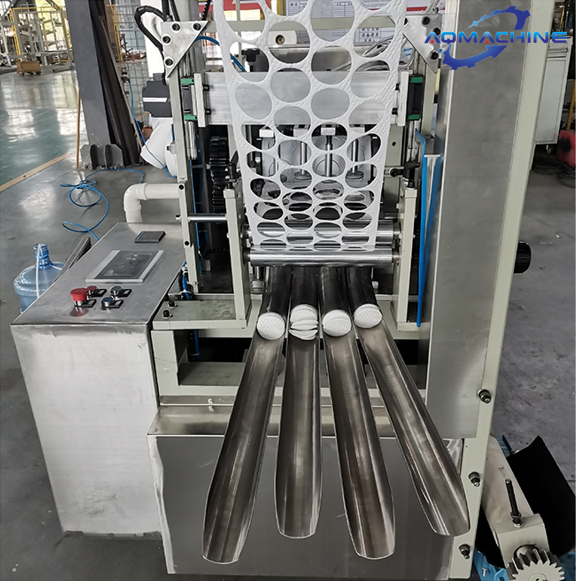

9. Use tube stainless steel to output the products which can make the products neat and easy for worker to take them away.

10. The whole structure is compact, high-speed, smooth operation, stable performance, light noise, simple, the mechanical design is superior to the Japanese make-up cotton , and it is a national original.

11. Operation and technical manual in English with detailed instructions with troubleshooting guide.

12. The whole structure is compact, high-speed, smooth operation, stable performance, light noise, simple, the mechanical design is superior to the Japanese make-up cotton , and it is a national original.

13. Operation and technical manual in English with detailed instructions with troubleshooting guide.



Part 2. Main technical parameters：

Production rate of 300-400pcs / min

Rated voltage of 380V Rated frequency 50Hz

Total power 3kw

Machine size: L:2600, W:1300, H:1650mm
