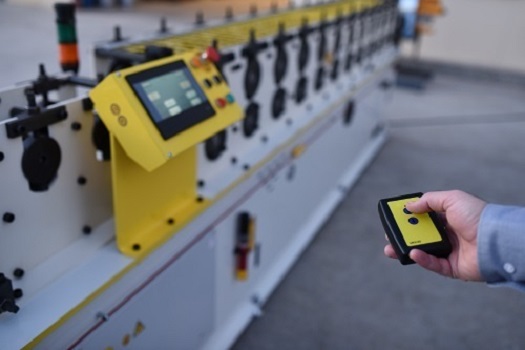

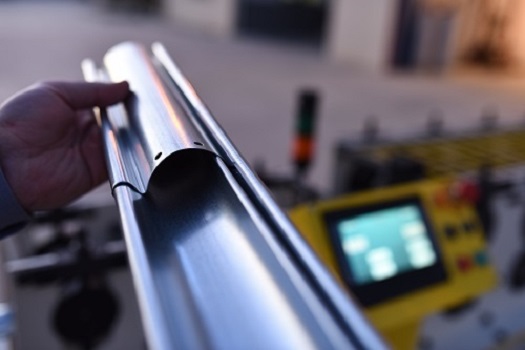

Rolling shutter machine
| Price: | US$ 25000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Izmir Port |
Product Details
| Model No.: | YCL 305 | Brand Name: | Yûcesan Machine |
|---|
| Certification: | ISO 2001, 9001 ,14001 CERTIFICATIONS |
|---|---|
| Specification: |

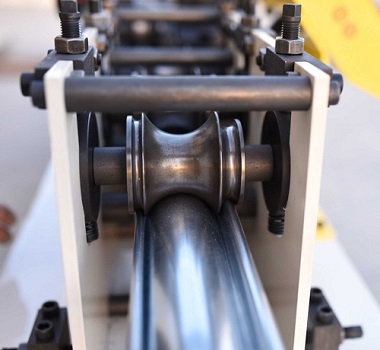

ROLL FORMING UNIT
• Number of stations/ press rollers sets: 12, • The gear shafts, bearing the press rollers, are fixed with ball bearings on both sides, • Diameter of the gear shaft: 45mm, • Profiling press rollers are made out of 4140 Special crack-proof steel and given a hardness of 55-58 HRC, • Characteristics of the steel sheets to be used: Sheet Width: Min. 80,3 mm Max. 80,7 mm, • The main motor and the reduction gear are connected to the lower chassis to control the press rollers from the center, • Power Transmission: with the main motor and reduction gear, • Motor = Omega, • Reduction Gear= Finex, • Ball Bearings: SKF-ORS, • Lenght Tracking= ENCODER, • Voltage = 220/ 380 Volt, • Remote Controlled, Mini Fire Extinguisher, High Safety standards with a Wire Mesh Upper Lid and Emergency Stop Button, a Pressure Indicator and an Oil Level Gauge, |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 60-90 days |
| Production Capacity: | 10 |
Product Description
YÜCESAN MACHİNE is a leader in its field company from Turkey producing machines and profiles in the following fields:
• Automatic roller shutter profiles
• Steel door and frame profiles
• Support sheet profiles
• Electric electronic profiles
• Solar profiles
• Rack feet and horizontal profiles
• Sigma special roof profiles
• Trapezoidal sheet profiles
• Agricultural and greenhouse profiles
YÜCESAN MACHİNE is an experienced producer of Rollform machines which was founded in 2003 by Yûcel SARIÇAM in the city of İzmir, Turkey. We produce machines and profiles of all kinds according to our client’s requirements. Our company is the follower and implementer of all technological developments with its 15 years of experience and expert staff.
Machines and profiles of hight quality produced by YÜCESAN MACHINE managed to move the company to the top position in the industry.
|
