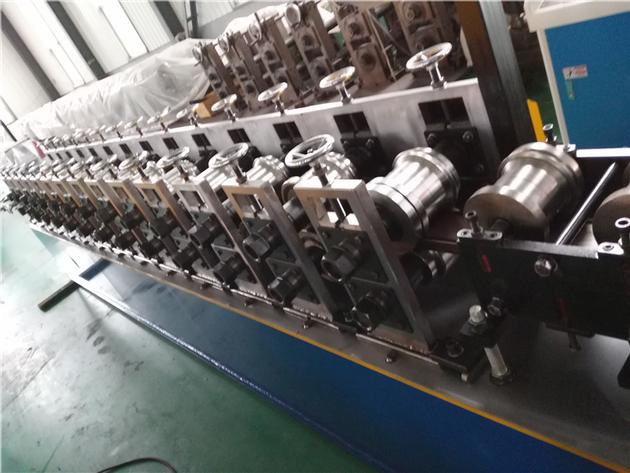

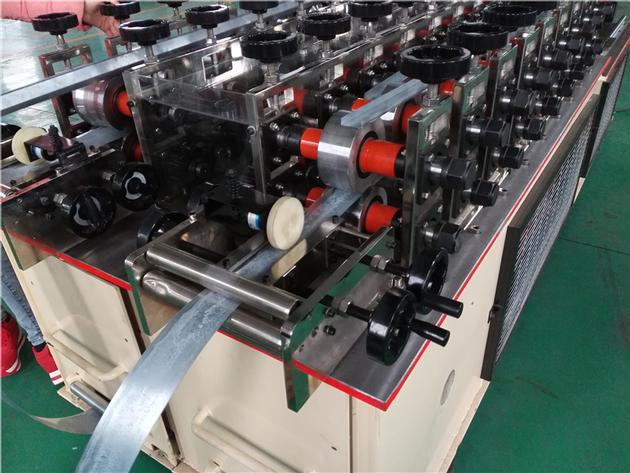

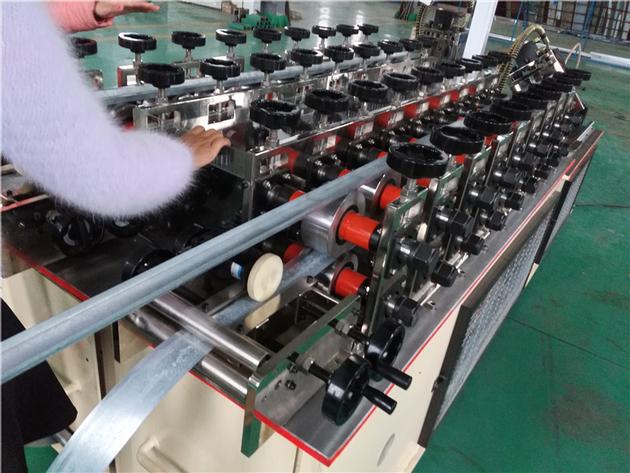

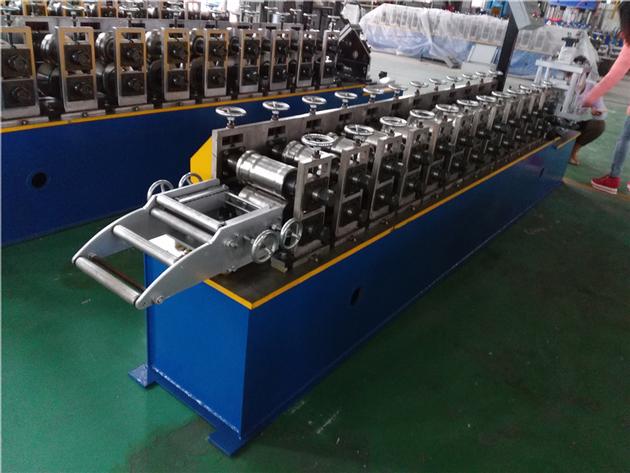

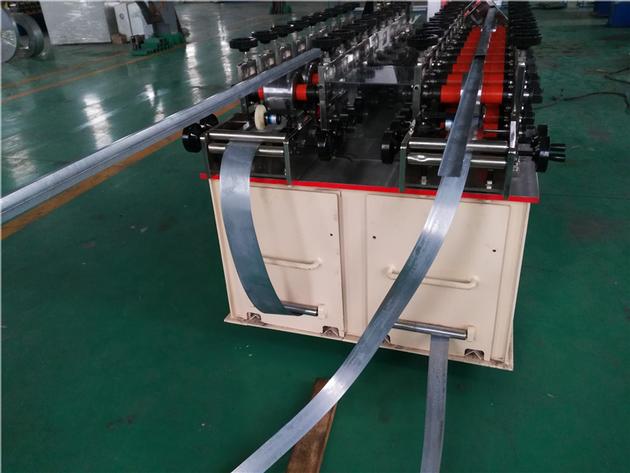

Roll Forming Machine
| Price: | US$ 1 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T D/P Western Union Paypal Money Gram Other |
| Port of Export: | tianjin |
Product Details
| Model No.: | ZY | Brand Name: |
|---|
| Certification: | CE/ISO |
|---|---|
| Specification: |
Abstract:
Products made by this machine is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 C-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually. Products made by this machine are suitable to use as building decorations, especially suitable to use in bedroom, kitchen, washroom, corridor and so on. Material for this machine is galvanized steel plate, snowflake plate and colored steel plate |
Packaging & Delivery
| Packaging: | Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof c |
|---|---|
| Delivery/Lead Time: | 30 WORKING DAYS AFTER RECEIVED THE DEPOSIT |
| Production Capacity: | 30/mounth |
Product Description
Technical parameter of product line:
1. Applied plank stuff: color armor plate
2. Applied slab thickness: 0.3-1.0mm
3. Charge in width: 1000mm
4. Line speed: 0-14m/min
5. Rolling rows: 16rows
6. Rolling diameter: 70mm
7. Dimensions: 8.5m*1.5m*1.6m
8. Weight: 5t
9. Power: 4kw+3kw
Equipment parts
1. Steel strip supporting frame
2. Feeding platform
3. Automatic shearing system
4. Hydraulic system
5. Steel strip unfolding system
6. Computer control system (imported computer)
7. High-precision automatic counter
8. Receiving table
Optional equipment
Hydraulic automatic uncoiler
Process flow:
Decoiling-loading-molding-cutting-off-discharging
Working space and workman for the equipment
1. Ground-level land
2. 5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter
This machine is fully automatic and high speed producing continuously, one set of forming rolls can produce various sizes of Stud and Runner just by simply and easily changing the spacers, this enables the production of different sizes products on the same rollers.
