Robot gripper :3C parts application case: gripper handling flat parts

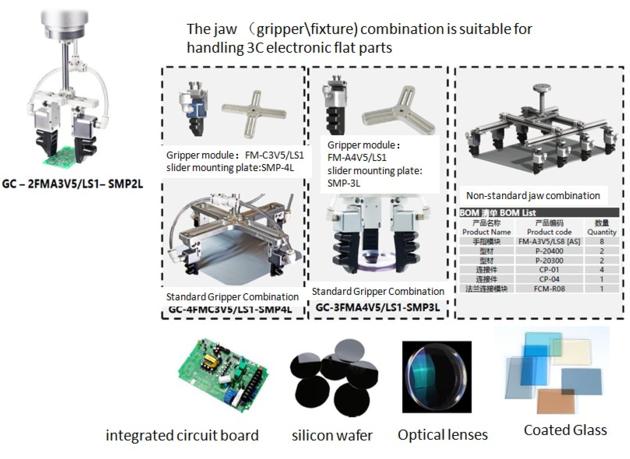

3C parts application case: jaw combination handling flat parts,

It is suitable for clamping, lifting and handling of 3C products such as integrated circuit boards, wafers, optical lenses, and coated glass.

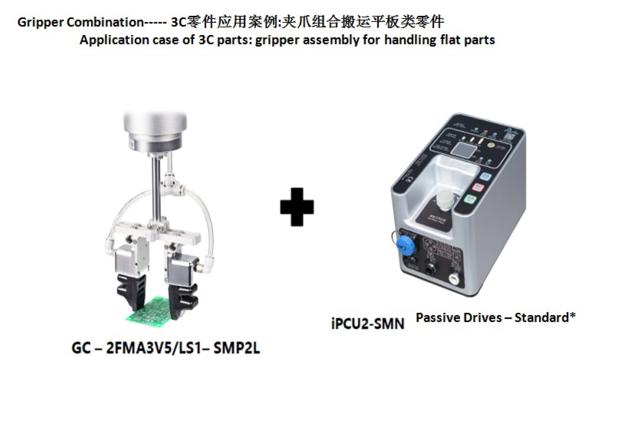

Combination code: GC – 2FMA3V5/LS1– SMP2L, Include:
1. Gripper module: FM-C3V5/LS1----2 sets;
2. Sliding mounting plate: SMP-4L-----1 sets;
3. Fixed rod flange connection module (light): FCM-R(01~05)---1 sets;
Features:
3.1 Comply with the ISO 9409-1:2004 standard (ie national standard GB/T 14468.1-2006/),
Compatible with most robot flanges on the market;
3.2 Light weight, suitable for lightweight articulated robots, the recommended maximum load is 5 kg;
3.3 Can be used in high-precision handling, assembly and other scenarios;
3.4 Different lengths are optional;

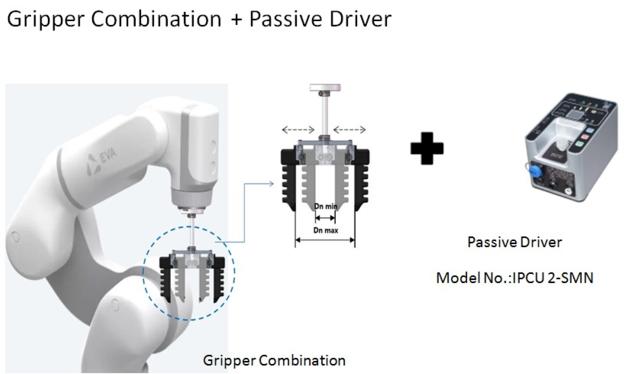

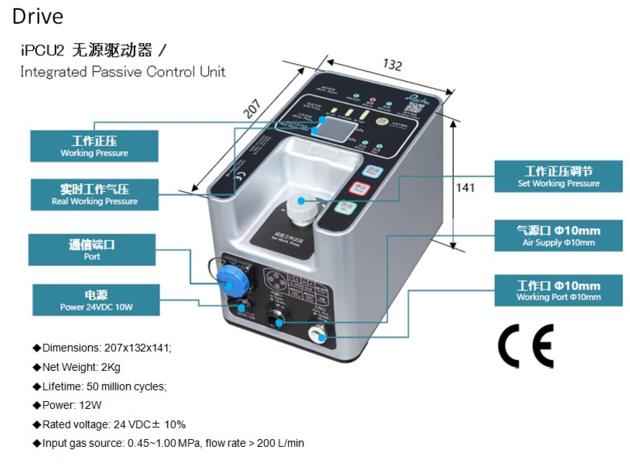

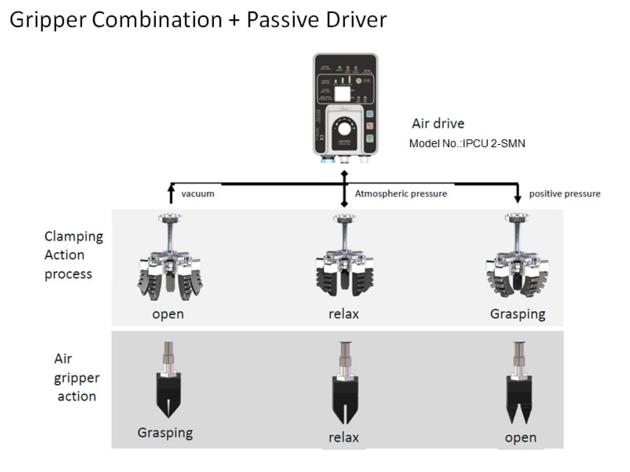

4. Passive driver – standard type: iPCU2------ 1 sets.
