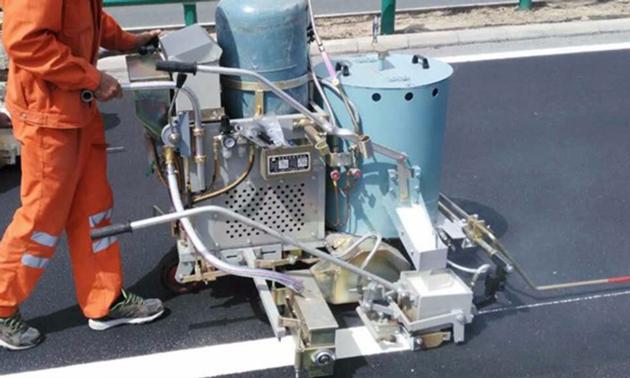

Road Marking Machine Self-Propelled Thermoplastic Applicator

W-TPE self-propelled thermoplastic road marking machine is also called thermoplastic applicator, thermoplastic handliner, It can walk itself, so workers just need to control the walk direction.

It comes with gasoline engine and US Danfoss hydraulic motor, it can walk forward or backward itself, your workers just need to control the road marking machine direction. Compared with thermoplastic manual applicator, it saves much manpower.

Details About Self-Propelled Thermoplastic Applicator

W-TPE self-propelled thermoplastic applicator is a portable thermoplastic handliner. It is suitable for road marking contractors who already have thermoplastic preheater. Because of high work efficiency, it is widely used in marking highways, city urban roads, parking lots, mountain roads, factory warehouses and so on. Comes with high quality spare parts, simple structure, easily operation, high efficiency, this self-propelled thermoplastic road marking machine can save much time and money of roadline constructions.

1. Road Marking Width
1) Optional Screed Marking Hopper/Dies Size: Machine comes with 15 cm road marking shoe and 20 cm adjustable glass beads dispenser. 5/10/12/15/20/30/40/45/50 cm or (2/4/6/8/10/12/16/18/20 inch) optional. Other special sizes can also be customized.
2) Adjustable Glass Beads Dispenser Size:
20 cm (10/15/20 cm adjustable)
50 cm (30/40/45/50 cm adjustable)

2. Screed Road Marking Shoe
1) High-precision Marking Hopper: made of ductile iron material, more heat-resistant and wear-resistant compared to gray cast iron (used by other suppliers). Less likely to deform or leak paint after long-term use.
2) Floor edge Knife: made of imported alloy material, more wear-resistant and durable.
3) Rear Knife/Blade Plate: made of 40-chromium, more heat-resistant, not easy to deform and no leakage of paint.
4) More reasonable structure design
①　Flexible Edge knife: adjustable according to the angle of road undulating, to ensure pretty lines, neat edge, uniform thickness.
②　Front and rear heating system: adjustable firepower according to the temperature of air and coating, to ensure the best state of coating for construction.
5) 24-hour oil precision testing before delivery to ensure no leakage of paint.

3. Glass Beads Dispensers
1) Optional dispenser types (Hand-operated or Self-dropping Dispenser) to easily control the distributing quantity.
2) Glass beads dispensers work only when the hopper drops to the ground and meanwhile moves forward. No glass beads are wasted.
3) One dispenser size for three different widths. Money saving.
4)With speed governing shift device

4. Gasoline engine:
Imported Japanese Honda gasoline engine, quality assurance.

5.US ultra-quiet hydraulic stepless speed change system, Auto-moving forward and backward easier.

6. Paint Tank
Paint tank with double-thickened stainless steel, welding inside and outside, never leakage material. Insulation layer with fire retardant cotton, save gas.
7. The unerring locator ensures that the equipment to keep straight.

8. Natural rubber wheels have the advantages of wear resistance, high temperature, low friction, and high flexibility.
