Ricoh Gen4 7Pl Printhead MH2420
| Price: | US$ 536.75 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T / Bank Wire / Paypal |
| Port of Export: | FOB |
Product Details
| Model No.: | Ricoh GEN4 7PL | Brand Name: | Ricoh |
|---|
| Certification: | Other |
|---|---|
| Specification: | This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This printhead has an integrated heater and thermistor. This is the Ricoh original printhead, covered by a manufacturer warranty. |
Packaging & Delivery
| Packaging: | Original In Box |
|---|---|
| Delivery/Lead Time: | 4-5 days |
| Production Capacity: | 10 |
Product Description

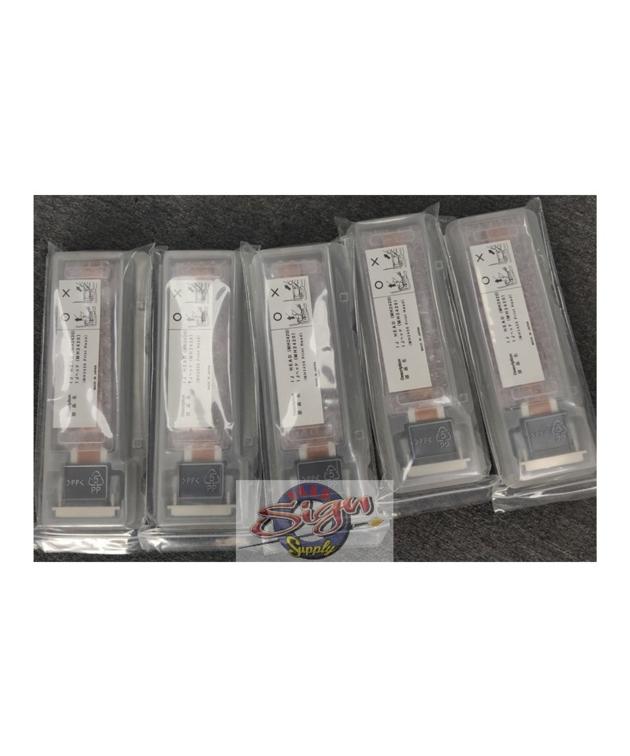

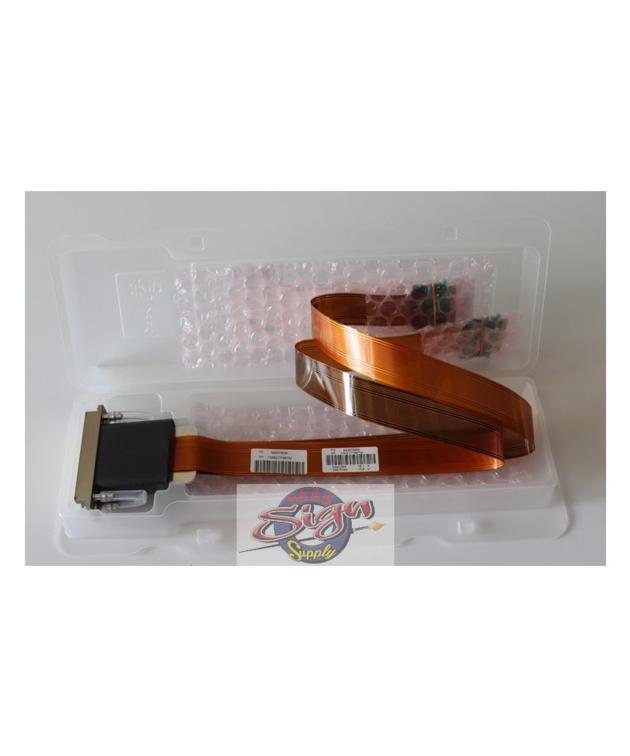

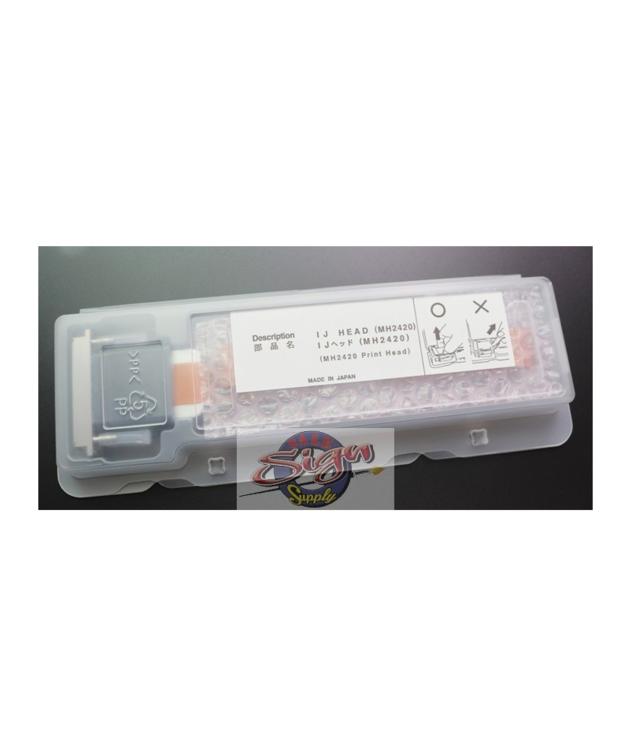

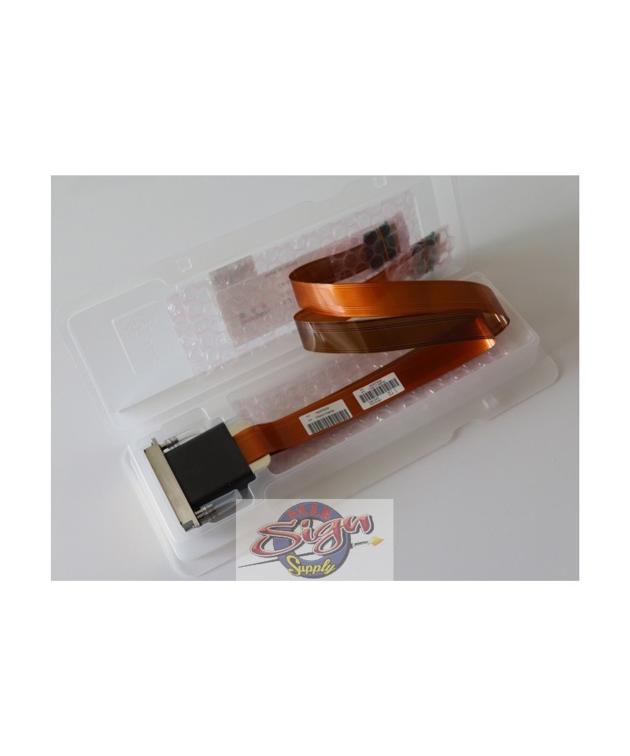

Ricoh Gen4 7Pl Printhead For Mimaki Ujf 3042 Uv Printer UJF-3042 GEN4 7PL Printhead
This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This printhead has an integrated heater and thermistor. This is the Ricoh original printhead, covered by a manufacturer warranty.
This printhead correspond to Mimaki part number M010010. This part includes the damper adapter M014497.
Technical Specifications
Size: 63 x 63 x 16,2 mm (excluding cables)
Head Materials: SST, Ni and Epoxy Adhesive
Nozzle Plate Surface: Non-coated SST
Number of Nozzles: 2 x 192 nozzles
Nozzle Spacing: 0,1693 mm
Piezo Type: D33 Stacked PZT
Temperature Control: Integrated Heater and Thermistor
Operator Temperature range: Up to 60® C
Native Drop Volume: 7 pl
Drop Volume Range: 5-25 pl with greyscale
Jetting Frequency: Up to 30 kHZ
Life: 100 billion actuations per nozzle
Ampla Digital
Targa XT 1804
Targa XT 1808
Targa XT 1816
Targa XT 3204
Targa XT 3208
Targa XT 3216
Mimaki
UJF-3042
UJF-3042FX
UJF-3042HG
UJF-6042
|
