Reverse circulation drilling tools/RC hammer bits
| Price: | US$ 50 |
|---|---|
| Minimum Order: | 1 unit |
| Payment Terms: | T/T |
| Port of Export: | shanghai |
Product Details
| Model No.: | NRC45,NRC55,NRC65,NRC52 | Brand Name: | New Diamond |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |

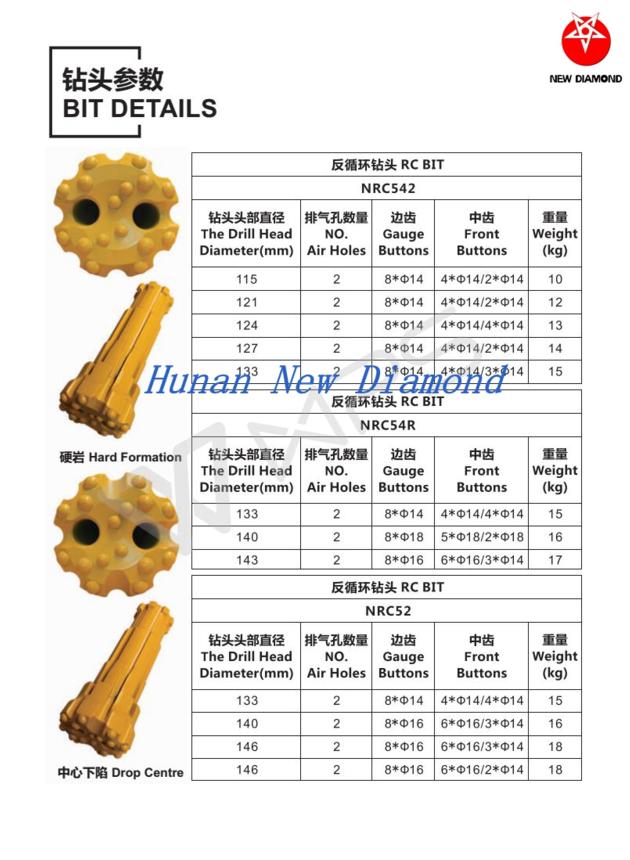

Bit face shape selection:
1. Drop Center Bit For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control. 2. Concave Face The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity. 3. Convex Face For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control. 4. Double Gauge Face This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit. 5. Flat Face Bit This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash. Carbide button shape selection: 1. Domed/Round Button 2. Parabolic/Semi-Ballistic Buttons 3. Ballistic Button 4. Sharp Button 5. Flat Button |
Packaging & Delivery
| Packaging: | Inner package with cartons,outer package with wooden case |
|---|---|
| Delivery/Lead Time: | 3 weeks |
| Production Capacity: | 1000 unit/month |
Product Description
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide

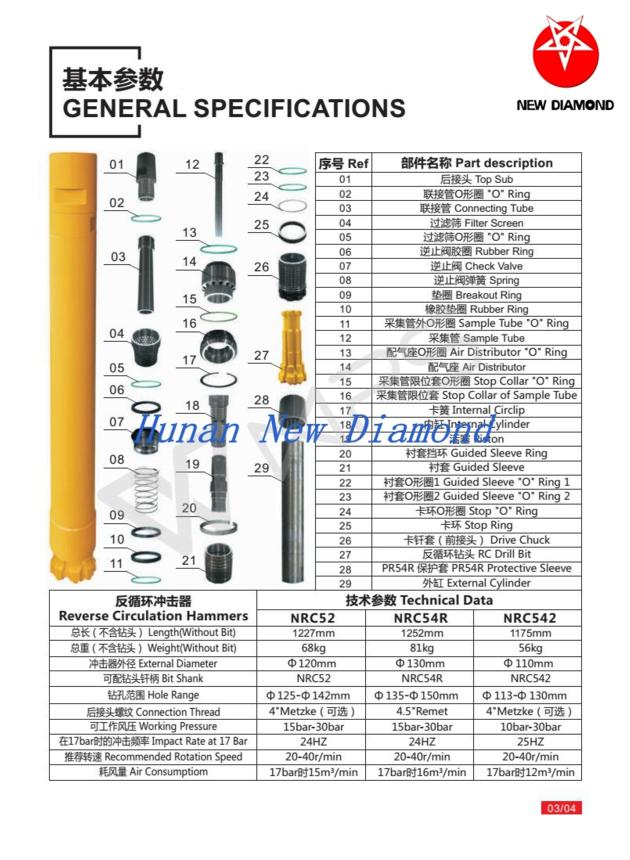

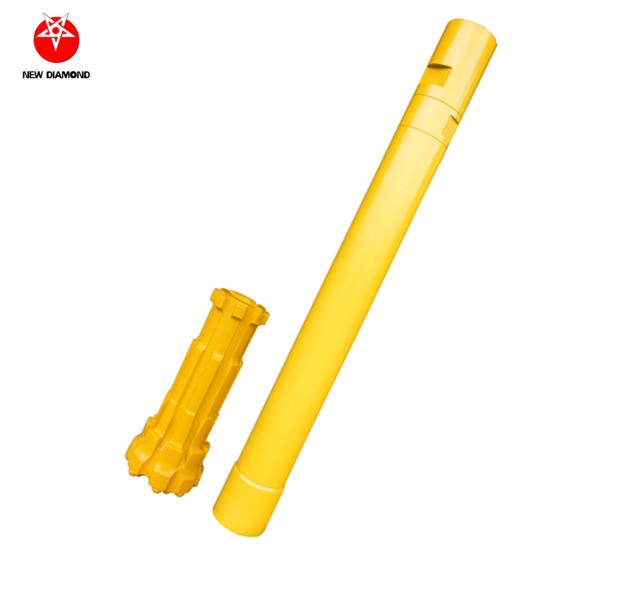

NRC series reverse circulation DTH hammer is the latest developed product of our company. It is mainly used for deep exploration drilling and stope ore grade control.
It has the following characteristics:
1. Based on previous experience of ordinary hammers, combined with the features of reverse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling.
2. The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.
3. The collection tube adopts an integrative design and can be replaced without disassembling the hammer. With carburizing treatment, it has good abrasive resistance.
4. Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring theat the ample is not contaminated.
5. In difficult conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.
|

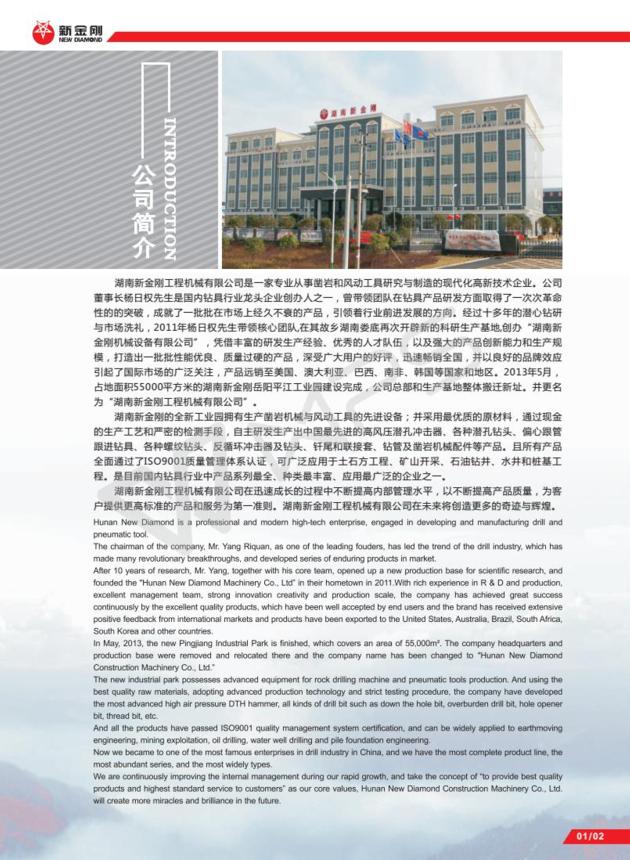

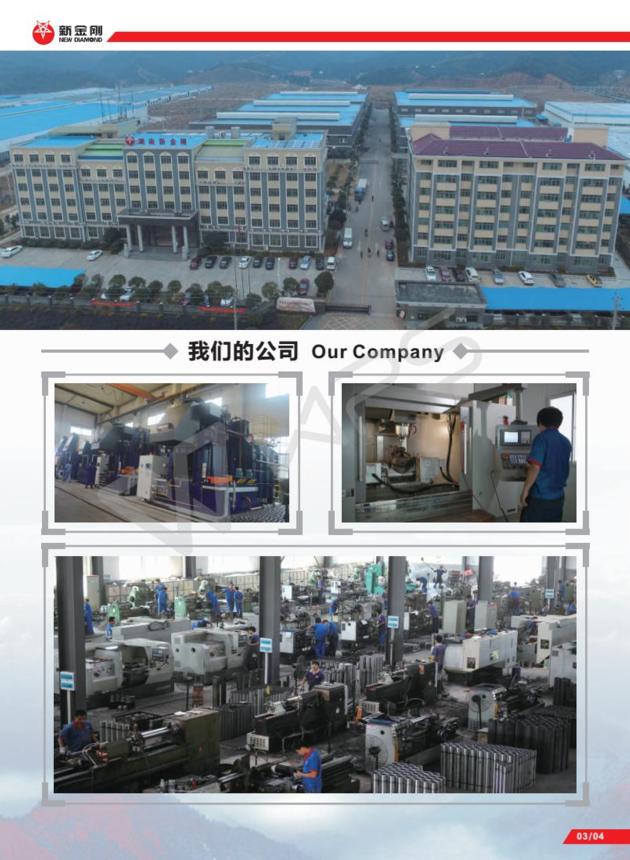

SUPPLIER PROFILE
|
|||
|---|---|---|---|
| Company: | Hunan New Diamond Construction Machinery Co.,ltd | ||
| City/State | Yueyang, Hunan | Country: |
China
|
| Business Type: | Export - Manufacturer / Trading Company | Established: | 2011 |
| Member Since: | 2017 | Contact Person | Tinny Lee |
SUPPLIER PROFILE
City/State/Country -
Yueyang, Hunan
China
Business Type -
Export - Manufacturer / Trading Company
Established -
2011
Member Since -
2017
Contact Person -
Tinny Lee
