Resin Diamond Grinding Wheel For Thermal Spray Coating [email protected]

Application: Thermal Spray Coating

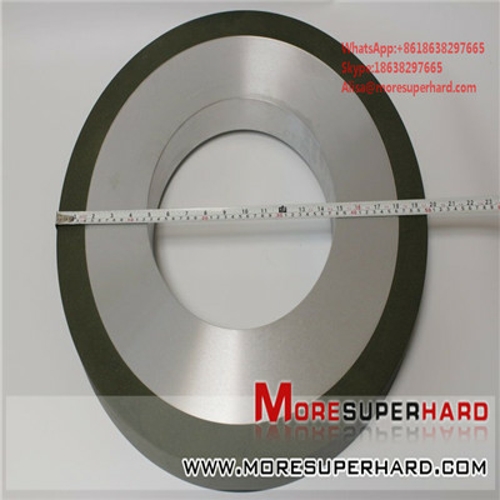

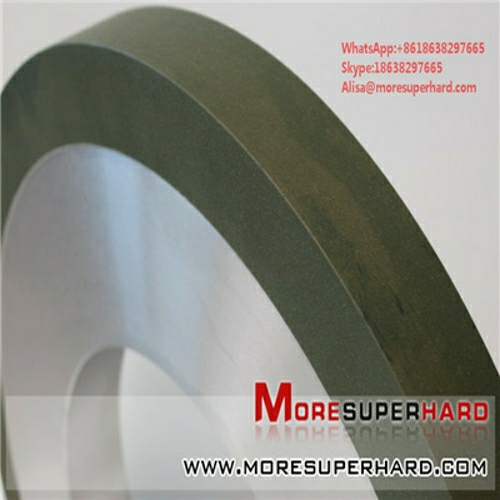

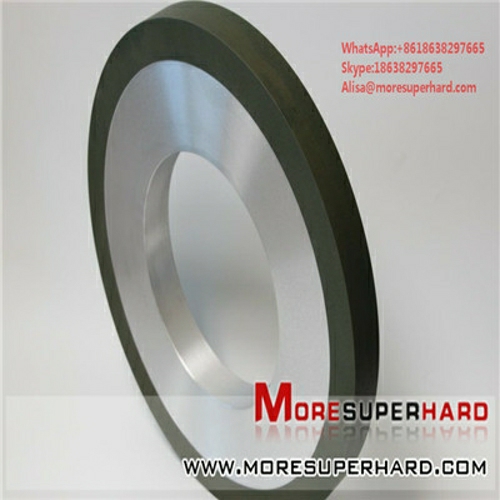

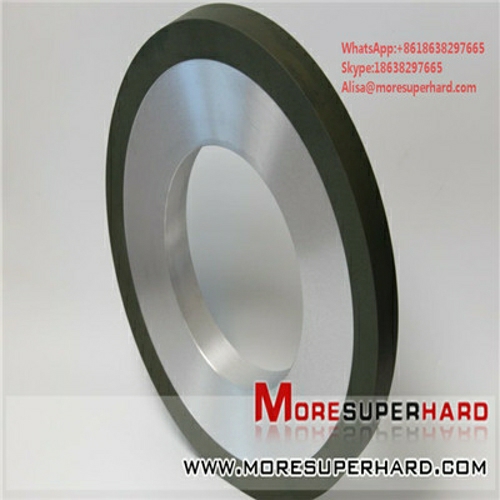

Introduction to resin diamond grinding wheel
The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials. Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.


Feature
1:Name:Resin Diamond Grinding Wheel For Thermal Spray Coating
2:Type Code: 1A1 diamond grinding wheel
3:Material: Diamond, CBN
5:Line speed: 35~80 (M/S)
6:Grit: 80#~5000# (D251-D1)
7:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing
8:Certification: ISO 9001:2008
9:Diamond grit: #100, #150, #200, #300, #400, or upon your request
10:Type: straight wheel, bowl-shaped wheel, cup-shaped wheel, dish- shaped wheel
tapered one side or two sides and so on

Product Feature
1:Easy to dress
2:Good self-sharpening
3:High finishing of work piece
4:Specially for precision grinding and polishing


Resin bond diamond grinding wheel model:
1: parallel grinding wheel
2: parallel arc grinding wheel
3: double-sided concave grinding wheel
4: double bevelled grinding wheel
5: bowl wheel

Applications of resin bond diamond grinding wheel for thermal spraying:
Roll grinding and grinding of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials.

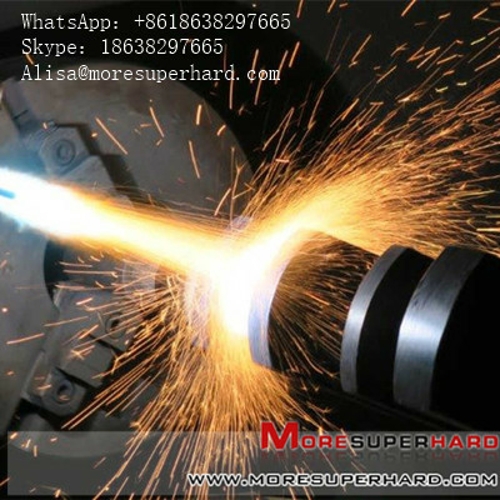

Thermal spray coating process:
Thermal Spray technologies includ Flame wire spray, Arc spray, Plasma spray, HVOF or HVAF , Detonation Spray, Cold spray .Thermal spraying technology is widely used in aerospace, aviation, machinery, metallurgy, chemical, petroleum, coal, railway, textile and many other departments .
Specifications of resin bond diamond grinding wheel for thermal spraying:
Diameter (mm) Diameter (inch) H (mm) T (mm) X (mm)
25 1 inch 6 12 6
30 - 12 6 -
40 - 12 6 -
50 2 inch 6 12 6
100 4 inch 12 12 10
150 6 inch 12 25 10
300 12 inch - 25 10
400 16 inch 127 25, 50 10, 25
500 20 inch 127, 203.2 25, 50 10, 25
600 24 inch 254 25, 50 10, 16, 25
750 30 inch 304.8 50 10
914.4 36 inch 304.8 25, 50 10, 25
1100 43 inch 304.8 50 10


Why choose our grinding wheel
Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered
