RT-1M9C, Transformer Acrylic Filament Tape
| Price: | US$ 2.2 / Square Meter |
|---|---|
| Minimum Order: | 5000 sqm |
| Payment Terms: | T/T, L/C |
| Port of Export: |
Product Details
| Model No.: | RT-1M9C, Transformer Filament Tape | Brand Name: | Rudder Tape |
|---|
| Certification: | |
|---|---|
| Specification: |
"Filament Tape eg: 24mm x 50m, 36 rolls/carton 48mm x 50m, 18 rolls/carton Jumbo 1040mm x 1000m, 4~7 rolls/pallet 1040mm x 2000m, 4 rolls/pallet " |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 7~15 workdays |
| Production Capacity: | 500000 sqm per month |
Product Description

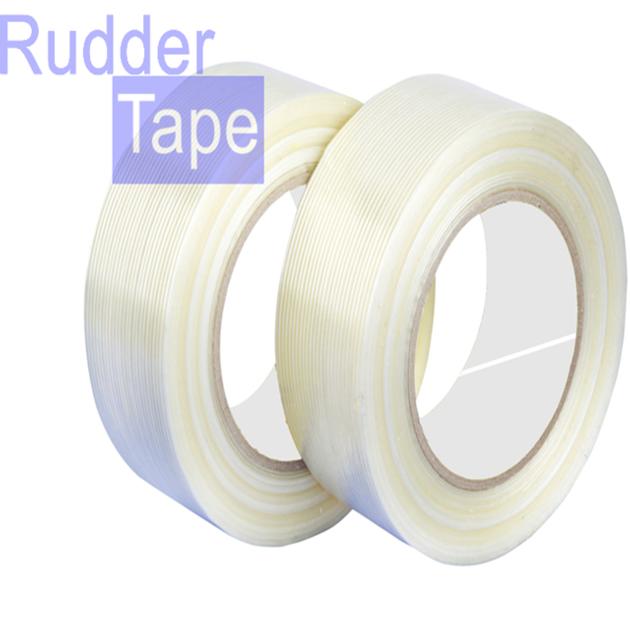

RT-1M9C Mono-directional Filament Tape (Residue free)
Product Description
RT-1M9C is a medium strength fiberglass reinforced biaxially-oriented polyester (Pet) film tape with solvent acrylic based adhesive with clean removal charteristic. Exhibits steady adhesion to wrapping and bundling, transformer uses, etc.
Main Application
* Steeling coil bundling,
* Electrical equipment uses
* Transformer uses
* Transport securing, etc
Construction
*Backing: Polyester film *Adhesive: Acrylic adhesive
*Backing Color: Clear *Reinforcement: Mono-directional continuous glass yarn
Typical Physical Properties
Note: The following technical information and data should be considered representative or typical only, and should not be used for specification purposes. Test before massive use is recommended.
Typical Physical Properties
Total Thickness: "0.14 ¯ 0.01mm " ASTM D-3652
Adhesion to Steel (90®): ≥ 12 ¯ 2 N / in ASTM D-3330
Tensile strength: ≥ 650 N/ 25mm ASTM D-3759
Elongation at Break: 4~6% ASTM D-3759
Service temperature -20®C to 120®C
Storage Conditions
Store behind present stock. Store in a clean, dry place. Temperature of 4~26 ℃ (40~80 ℉) and 40~50% relative humidity are recommended. Rotate your stock.
|
