RS232 RS485 Ethernet Converter，Serial Ethernet to Modbus Converter
| Price: | US$ 41.6 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Qingdao |
Product Details
| Model No.: | USR-TCP232-410S | Brand Name: | USR IoT |
|---|
| Certification: | CE, FCC, ROHS |
|---|---|
| Specification: |
System Information Processor Cortex-M4 Basic Frequency 120MHz Flash 512K byte Ethernet Port Number 1 Interface Standard RJ45 Rate 10/100 Mbps MDI/MDIX, auto switch between cross and direct connection Protection 2KV electromagnetism isolation, shell insulation blocking Network Protocol IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, Httpd client Receive Buffer Max 16k bytes buffer Serial Port Number 2 (1*RS-232, 1*RS-485, can work at the same time) Interface Standard RS-232: DB9 pin type, RS-485: 3 wire (A+, B-, G) Data Bits 5, 6, 7, 8 Stop Bit 1, 2 Check Bit None, Even, Odd, Space, Mark Baud Rate RS-232: 600 bps ~ 230K bps, RS-485: 600 bps ~ 1M bps Flow Control RTS/CTS Buffer Send and receive 2k bytes respectively Protection RS-485: anti-static 2KV, lightning protection RS-485 Pull-up and Pull-Down Resistor 2.2 KΩ Software Virtual Serial（USR-VCOM） Windows 2000 or higher (32 bit/64 bit) Configuration Built-in webpage, computer set-up software, serial command Basic Parameter Size 80 x 62 x 24 mm Operating Temp. -40 ~ 85®C Storage Temp. -45 ~ 105®C, 5 ~ 95% RH Input Voltage DC 5 ~ 36V Working Current 86.5mA(aver)@ 5V 44.3mA(aver)@ 12V Power <1W More Certificate CE,FCC,ROHS Warranty 2 years Accessory 5V1A high-quality power supply, serial line, cable |
Packaging & Delivery
| Packaging: | carton packing |
|---|---|
| Delivery/Lead Time: | 1 week |
| Production Capacity: | 1000/month |
Product Description
RS232 RS485 Ethernet Converter，Serial Ethernet to Modbus Converter USR-TCP232-410S is Industrial M4 Series which support Modbus Gateway Modbus RTU to Modbus TCP. Top-rated item in the market.
RS232/RS485 (Can be used at one time)
DC 5-36v DC
Flow Control: CTS/RTS XON/XOFF
Introduction of RS232 RS485 Ethernet Converter

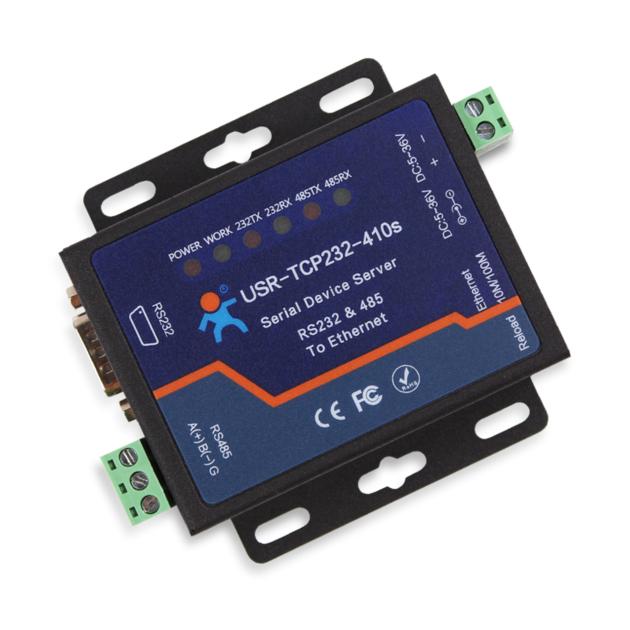

USR-TCP232-410S is a dual serial RS232 RS485 Ethernet converter, which is based on TI Cortex-M4 solution & integrated TCP/IP protocol stack.
Basic Function of RS232 RS485 Ethernet Converter
Industrial Solution: TI Cortex M4 Solution, -40~85C
Web Server: Web socket/ Web to Serial
Modbus Gateway: Modbus RTU to Modbus TCP / Modbus Pollinig
Flow Control: CTS/RTS, XON/XOFF
2 Network links, each serial supports sending data to two target servers
Network Printing
N series supports hardware watchdog, never crash
Basic Feature of RS232 RS485 Ethernet Converter
Multiple indicator lights for convenient debugging
Power-line terminal for industrial application
ARM kernel and TCP/IP protocol stack
Auto-MDI/MDIX,RJ45 port with 10/100Mbps
TCP Server,TCP Client,UDP,UDP Server and HTTPD Client work mode
Two ports can work independently at the same time
Support virtual serial port and provide corresponding software USR-VCOM
Serial baud rate from 600bps to 230.4K bps;Check bit of None,Odd,Even,Mark and Space
DNS and DHCP supported
Provide PC TCP/IP SOCKET programming example,VB,C++,Delphi,Android,IOS
Built-in webpage;also can customize webpage for users
Reload button,one key to restore default settings
RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation
The global unique MAC address bought from IEEE,user can define MAC address
Upgrade firmware via network
Keepalive,rapidly detect dead links
Support account and password,can be used to page login and network settings
Support one channel Websocket,realize bidirectional transparent transmisison bewteen webpage and serial 0
Support UDP broadcast function,send and receive data from all ip in the network
Ethernet Serial Converters Application Field
Industrial data transmission, industrial automation
security and protection monitoring, public security
Smart home, power control, environmental monitoring, intelligent agriculture
Door check on work attendance system, POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
All USR products will be tested by R&D first, then production test again.(ESD Test,Surge/EFT Test, High/Low Temperature Test, EMC and LVD environment reliability test, etc.)
USR products are exported to more than 100 countries and regions, get approvals like CE, FCC, ROHS, CCC, KC, IC, SRRC, etc.
|
