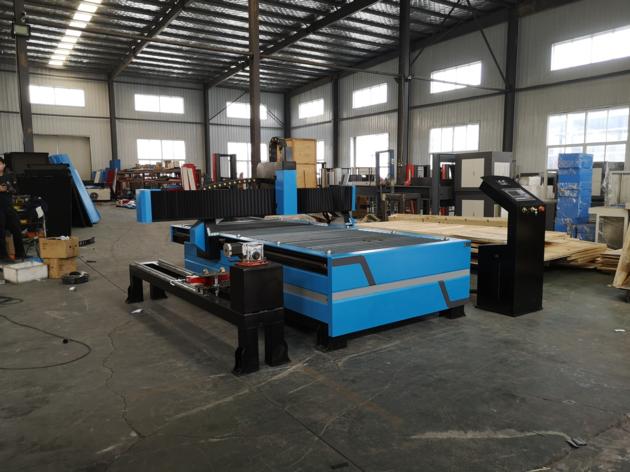

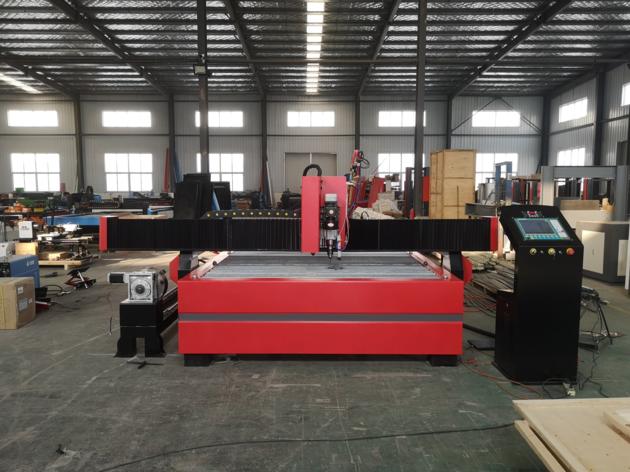

REBOUND CNC RB1530-P steel plate and tube portable CNC plasma cutting machine

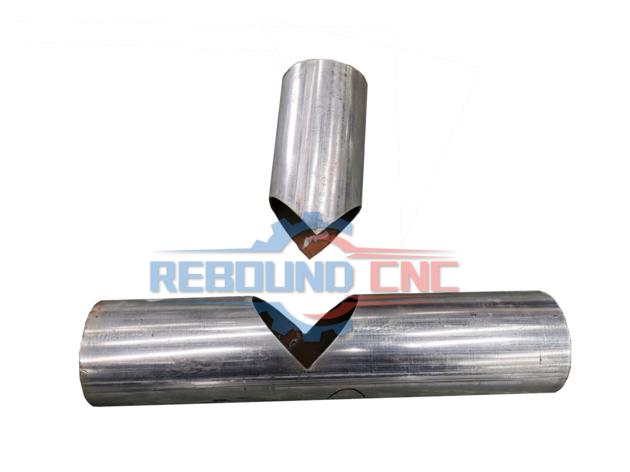

RB1530-P steel plate and tube portable CNC plasma cutting machine is a multifunctional portable metal cutting equipment, which can be used to cut iron plate and round tube. Equipped with automatic height adjustment system, the cutting height can be automatically adjusted according to the bending degree of the plate. It can be directly placed on the steel plate to be cut, which is convenient and flexible to use.

Steel plate and tube portable CNC plasma cutting machine features
1. The beam uses light structural design, with good rigidity structure, light deadweight and small movement inertia.
2. It can apply to iron sheet, the aluminum sheet, the galvanized sheet, hundred steel plates, metal plates and tube so on.
3. Its system supports the following languages: English, Russian, Spanish, French, Japanese, Czech, Slovak
4. It supports WENTAI, Astronautics HAIRE, ARTCAM software, Type3 produce standard G code way document, also can change software to read AUTOCAD software produce DXF form documents.
5.Overall processing alloy base, assure light and precise, no base shape deformation
6.Cross beam and rail both with linear guide, high accuracy good stability moving
7.With motor enable/disable button, ensure operator and machine safety and start position random select, save material save time.

Steel plate and tube portable CNC plasma cutting machine parameters
Model RB1530-P
Working Voltage AC 220V/380V, 50HZ
Plate cutting Size 1500*3000mm (5ft *10ft)
(We supply customized service for you Specially!)
tube cutting size 200mm, 300mm, 400mm, 500mm
Supporting Cutting Flame and Plasma
(Plasma Arc Cutting Equipment).
Flame(gas) Cutting Gas LPG/Coal gas, Propane, Acetylene + Oxygen.
Plasma Cutting Thickness 0-30mm,According to different power source
Gas(flame) cutting Thickness 1-200mm
Control System STARFIRE(FANGLING optional)
Driving System LEADSHINE stepper motor
Transmission Method Gear transmission
Power Supplier HUAYUAN power or US HYPERTHERM
Guide Rail Round rails
Nesting Software FASTCAM
